solar array box MUL-1016
- 500 Piece / Pieces per Month
- Tianjin
- T/T
-
Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
-
Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
-
10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
-
Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
-
Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
-
TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Beijing, China | Brand Name: | Vmaxpower | Model Number: | MUL-1016 |
Specification: | Normal | Application: | Commercial | Output Voltage (V): | 110V/220V |
Load Power (W): | Depend | Solar Power (W): | 1000W | Work Time (h): | 24 Hours |
Product Description

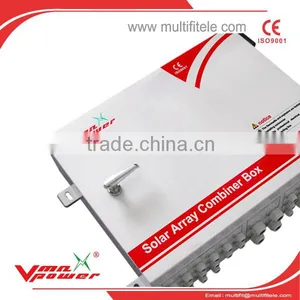

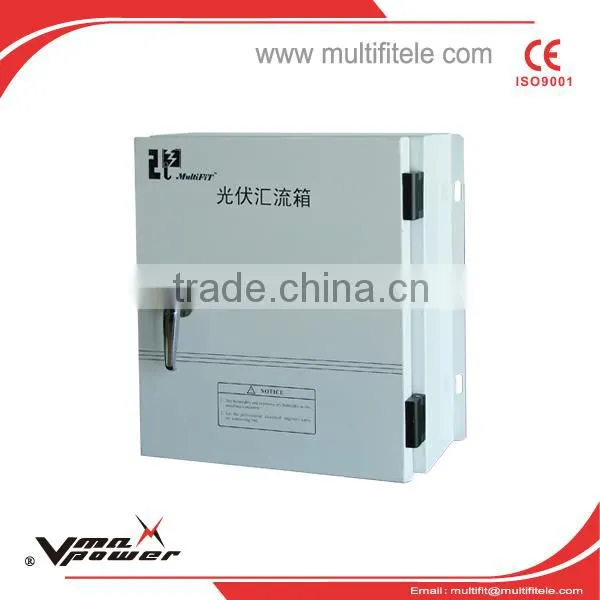

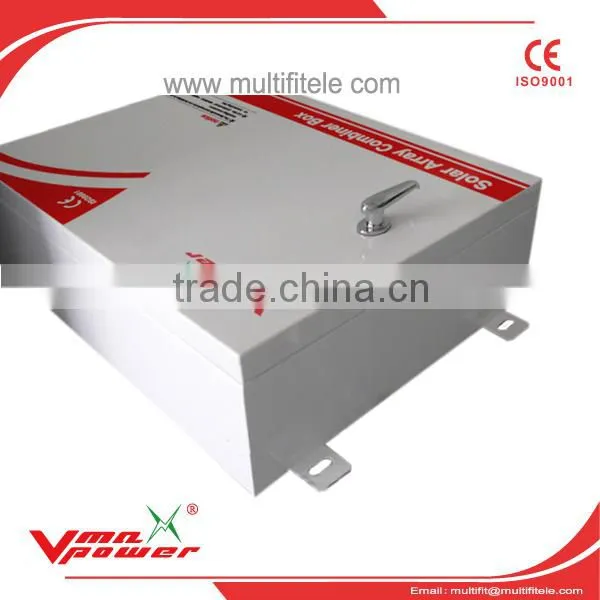

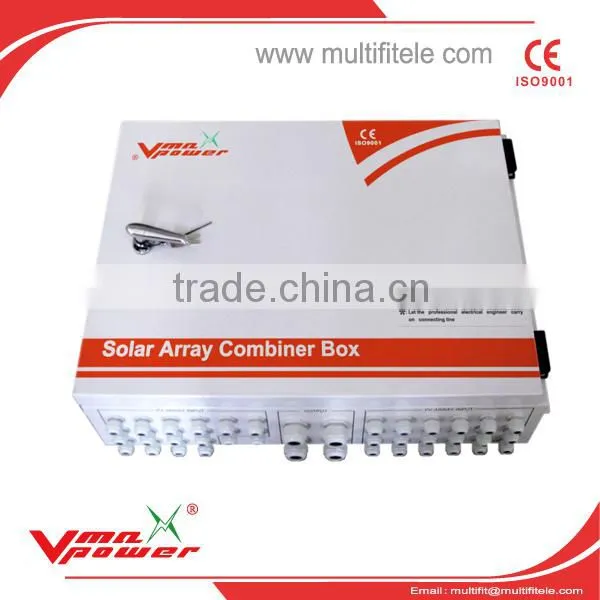

Solar Combiner Box
For large scale grid-connected PV systems, a DC combining device will be installed in between the PV arrays and the inverters to minimize the cable length, increase the reliability and stability, and also for the ease of maintenance. Multifit PV Array Combiner Box is a standardized product developed to use with solar power system to provide a turnkey solution for PV power plants. Based on the DC input voltage range of the inverter, a quantity of the same PV strings can be connected to form a PV array. Then different PV arrays can input into the PV array combiner box, which including lightning protection devices and circuit breakers, to output a DC current for the inverter connection.
Features of pv array combiner box:
·Applicable for outdoor PV systems
·4/6/8/10/12/16/24 PV string inputs with maximum string current at 20A
·Wide DC voltage input range with maximum open-circuit voltage up to 1000V
·With PV dedicated DC fuses with maximum voltage not less than 1000V
·With PV dedicated high voltage lightning protection device
·Both +ve & -ve poles equipped with a 4-pole circuit breaker with the allowable DC voltage not less than 1000V
·Monitoring feature optional for each string of PV array box
·Waterproof terminals
·Lighting Protection
With the Monitor and RS485 Communicate port
| Technical Parameters: | ||
Model | MUL-1004 | MUL-1006 | MUL-1008 |
PV voltage range | 0~1000Vdc | 0~1000Vdc | 0~1000Vdc |
Max. no. of strings (parallel) | 4 | 6 | 8 |
Max.current of each string | 10/15A | 10/15A | 10/15A |
DC output breaker | Yes | Yes | Yes |
Fuse Module | Yes | Yes | Yes |
lightning protection module | Yes | Yes | Yes |
Output connection screw | PG16 | PG16 | PG16 |
Waterproof Class | IP65 | IP65 | IP65 |
Each PV string current monitor ( optional ) | Yes | Yes | Yes |
Communication Port ( optional ) | Yes | Yes | Yes |
Monitor Software | Optional | Optional | Optional |
( Ambient temperature) | -40℃~+75℃ | -40℃~+75℃ | -40℃~+75℃ |
( Ambient humidity ) | 0~99% | 0~99% | 0~99% |
CE/IP65 Certificate | Yes | Yes | Yes |
W / H / D(Iron steel box) | 350×300×180 mm | 350×300×180 mm | 500×400×180 mm |
Net Weight(Iron steel box) | 9kg | 12kg | 14kg |
W / H / D(Plastic Box) | 300×200×150 mm | 300×200×150 mm | 400×300×150 mm |
Net Weight(Plastic Box) | 5kg | 7kg | 10kg |
| Technical Parameters: | |||
Model | MUL-1010 | MUL-1012 | MUL-1016 | |
PV voltage range | 0~1000Vdc | 0~1000Vdc | 0~1000Vdc | |
Max. no. of strings (parallel) | 10 | 12 | 16 | |
Max.current of each string | 10/15A | 10/15A | 10/15A | |
DC output breaker | Yes | Yes | Yes | |
Fuse Module | Yes | Yes | Yes | |
lightning protection module | Yes | Yes | Yes | |
output connection screw | PG16 | PG21 | PG21 | |
Waterproof Class | IP65 | IP65 | IP65 | |
Each PV string current monitor ( optional ) | Yes | Yes | Yes | |
Communication Port ( optional ) | Yes | Yes | Yes | |
Monitor Software | Optional | Optional | Optional | |
( Ambient temperature) | -40℃~+75℃ | -40℃~+75℃ | -40℃~+75℃ | |
( Ambient humidity ) | 0~99% | 0~99% | 0~99% | |
CE/IP65 Certificate | Yes | Yes | Yes | |
W / H / D(Iron steel box) | 500×400×180 mm | 600×500×180 mm | 600×500×180 mm | |
Net Weight(Iron steel box) | 16kg | 23kg | 29kg | |
W / H / D(Plastic Box) | 500×300×185 mm | 600×400×185 mm | 600×400×185 mm | |
Net Weight(Plastic Box) | 14kg | 16kg | 18kg | |
Solar Combiner Box Wiring Diagram
Monitor Software for PV plant control and monitoring
This software is for measuring below date
Each PV generator string current.
PV generator string voltage
Total PV generator energy produced
The Temperature .
The history data of the PV plant
Package | Carton | Carton & Pallet | 20TF container | 40FT container |
Qty | 1 pcs | Based on your order quantity | 700pcs | 1400pcs |
We supply sample for your testing.
We supply OEM & ODM
We can supply you the inverter according to your requirement
The warranty time is 2 years.
