Home > Products > PE Foam Sheet Extrusion Line > plastic sheet extruder
plastic sheet extruder
- 10 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Application: | Sheet | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | Full Automatic | Place of Origin: | Shandong, China |
Brand Name: | Hongrun | Model Number: | HR-EPE120 | Voltage: | 220/380V |
Power(W): | 120kw | Dimension(L*W*H): | 25*2.3*2.2m | Weight: | 12T |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
plastic sheet extruder
Specifications
1.Make foam sheet,pipe,net,rod,profile etc
2.Top quality EPE machine
3.Best equipments brand
Features
1.Damping,Resist static electricity,Dust-proof
2.packaging material:electronic equipment,pottery,glass products,furniture
3.insulation material:Agriculture,building
Description

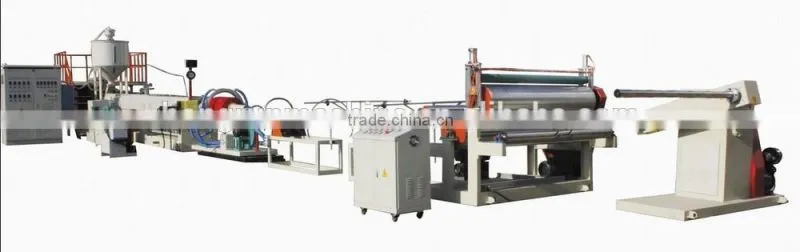

PE foam sheet extruder producing fine closed cell Polyethylene foam sheet, by our unique
designed Screw and Barrel system, using Butane foaming agent, Talc powder or Talc master
batch and Anti-shrinking agent (GMS for short-Surface Active Agent) by accumulated experience and advanced technology.
1.PE foam and related products are made from PE resin and it is expanded and formed into
shapes by being heated and extruded. And it is easy to be decompounded and environment
friendly.
2. Its key function is cushion protecting and warmth reserving.
3. Nowadays it is the most popularly used for modern batch production products, especially export
packaging industry, including electronic industry (such as PC computer, laptop, electronic chips
and parts, inverter, TV, air conditioner, refrigerator), furniture, glassware, garments, metal parts,etc.
4. Whoever aims at modern packaging and export, he has to use PE foam for the following
reasons: Packaging with air bubble film, EPS and plastic film is forbidden in many countries.
Paper packaging is so expensive.
5. PE foam products have quite a few varieties: Sheets for direct wrapping and to make bags;
PE sheet may be coated with plastic film, craft paper and aluminum foil. It may be laminated (by electricity or LPG flame) into thick blocks. Then cut them to make different containers or frames. PE fruit net is direct for fruit and small matter's wrapping. If you add special molds, you may make different profiles for door hinges and furniture packing.
Specification
Model | Unit | EPE90 | EPE105 | EPE120 | EPE150 | EPE170 |
Screw diameter L/D |
| 90/55:1 | 105/55:1 | 120/55:1 | 150/55:1 | 170/55:1 |
Screw speed | r/min | 5-45 | 5-45 | 5-45 | 5-45 | 5-45 |
Foam rate |
| 20-40 | 20-40 | 20-40 | 20-40 | 20-40 |
Width of product | mm | 1000-1400 | 1000-1500 | 1000-2000 | 1000-2000 | 1000-2000 |
Thickness of product | mm | 0.5-4.5 | 0.5-6.5 | 0.8-8 | 1-12 | 2-16 |
Cooling method |
| cooled by water | ||||
Installed capacity | kw | 90 | 100 | 120 | 150 | 180 |
Dimensions(L×W×H)(approx) | m | 22×2.3×2.2 | 23×2.3×2.2 | 25×2.3×2.2 | 30×2.3×2.2 | 32×2.3×2.2 |
Total weight(approx) | t | 8.5 | 9 | 12 | 15 | 17 |
Services
1.when we make the order, I will follow your order, update machine information and send to you
2.when finish the machine, we will pack the machine well and arrange ship send to you. when the machine got your factory we will send our rich experience engineers to your country install machine and train your worker till you satisfied with them.
Warranty
1. our machine have 1 year guarantee and lifetime maintenance.
2. if you need any parts, we will supply them as a cost price
3.when you run the machine, if you have any problem our aftersales service person will solve your problem at first time.
FAQ
Q:. Why I choose your company?
A: a, We are China Leading foam machine Manufacturer.
b, our company have made foam machine for many years with strong
experience and advanced technics
c, Best Quality & Best Service with Competitive price.
d, 100% inspection Before Shipment. And we have got CE certificate
e, we have Professional technical team, will supply 24 hours service
f, our machine have good quality, 1 year guarantee and lifetime maintenance
Q:What should we prepare except material
A:You should prepare workshop, water line, electric line, compress air(if you need I can help you buy air compressor)
We can supply workshop layout drawing.
Q: can you make machine upon our requirement?
A: of course, it is no problem, we can make machine according to your requirement, such as part brand, machine color, labels, moulds, etc.
