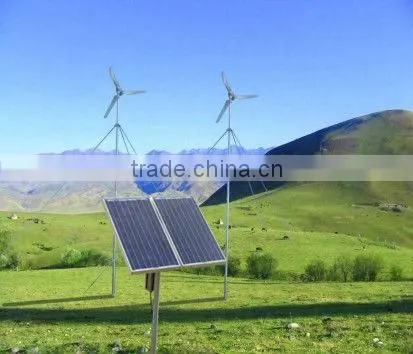

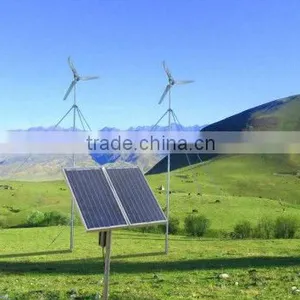

10KW Wind Solar Hybrid Power System MU-WSP10000

Specifications

10KW Wind Solar Hybrid Power System MU-WSP10000
Intelligent CPU control,
With over load, over voltage, over current protection

10KW Wind Solar Hybrid Power System MU-WSP10000

System Description

DC Voltage:240VDC;

AC Output:220V/50Hz Single Phase or 380V/60HZ ,Three Phase AC Output;

Intelligent cup Control,

With over load,over voltage,over current,over charge/dischare, under-voltage protection:

Certification:CE and ISO9001





Power Generator

Wind Power:5000W

Solar Power:5000W



I,Wind Power

Wind turbine Generator:5000W/240VDC,

Tower: 12 m Height

II,Solar power

Solar Mould: 5000W,125wp*40pcs,2 array.

Solar Bracket:40 unit.

Cable for the Solar Panel: 90cm each panel

Junction Box:1 Set

Distribution Box:1 unit.

Cable Wire:200M



Solar/Wind Control System:

Wind/Solar Controller: 10000W /240VDC

Power Inverter: 15000VA/240VDC,

220V/50Hz Single Phase orThree Phase 380V/50Hz AC OutPut

True Sine Wave Form,



Battery Bank,Solar battery,40 pcs 12V 150Ah.

Battery Tank,1 Set



Working Time :8 hours at full load device 10000w.



Application AC Equipment

Lighting,Radio,TV,Fan,VCD,Computer, Refrigeratory,Washer Hair-drier,Air Condition and other Big Power Load
