New australian standard electrical switches
- 10000 Piece / Pieces per Month
- Ningbo or Shanghai China
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CNXY | Model Number: | UKF series |
Max. Current: | 32A | Max. Voltage: | 440VAC |
Product Description
Specifications
New australian standard electrical switches1.IP66 waterproof class
2.Safety feature for mounting
3.PC material
4.CE,ROHS
New australian standard electrical switches
...................................................................................................................................................................................................................
The weatherproof isolating switches is suitable for outdoor switching use in different weather condition.
Include: single, double and triple pole switches from 20 to 80 Amps, the base moulted mechanism.

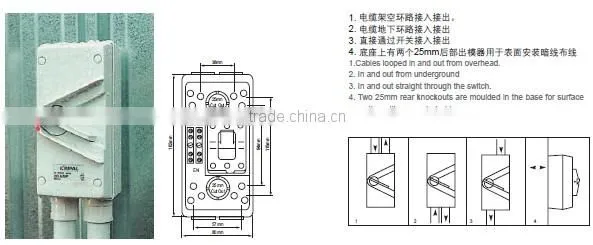

provides for easier termination and more wiring room, switch dimensions are 165mm-a82mm with an overall height of 85 mm.
Fixed earth and neutral connector bars with dual clamping screws per tunnel provide equal as tripping lengths and secure clamping for all cables, terminal bore size 5-a6.6mm.
A safety feature for mounting switches to metal structures is the insulating caps that cover base mounting screws to totally protect them from any live cables.
Each unit is supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits and screw cap. Screw caps must be installed to ensure IP Rating .The impact Resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with a one piece weather seal gasket. For security, a 7mm diameter hole is provided for padlocking the lever in the OFF position .Deep moulsed barriers protect the operating lever from physical abuse or accidental switching. All units comply to IEC60947-3.Mines, and, Energy, south, Australia, Approvais. Standard colours are Grey& White...
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................
.....................................................................................................................................................................................................................

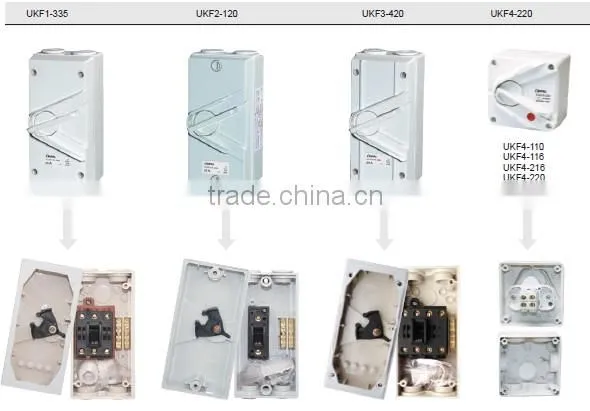

Main specification:
Model | Phase & Voltage | IP rating |
UKF1-20 | 20A 250V single pole, surface switch terminals accommodate 16mm^2 cable, M rating 220 | IP65 |
UKF1-32 | 32A 250V single pole, terminals accommodate 16mm^2 cable, M rating 220 | IP65 |
UKF1-63 | 63A 250V single pole, terminals accommodate 16mm^2 cable, M rating 220 | IP65 |
UKF2-20 | 20A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180 | IP65 |
UKF2-32 | 32A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180 | IP65 |
UKF3-63 | 63A 440V Double pole, terminals accommodate 16mm^2 cable, M Rating 180 | IP65 |
UKF3-20 | 20A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180 | IP65 |
UKF3-32 | 32A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180 | IP65 |
UKF3-55 | 55A 440V Triple pole, terminals accommodate 16mm^2 cable, M Rating 180 | IP65 |
UKF3-55/32 | 55A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 160 | IP65 |
UKF3-63 | 63A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 160 | IP65 |
UKF3-80 | 80A 440V Triple pole with 32mm conduit entry, terminals accommodate 25mm^2 cable, M Rating 150 | IP65 |
.....................................................................................................................................................................................................................
....................................................................................................................................................................................................................
Why us
Gold supplier authenticated by ALIBABA.
Safe and easy to buy from us.
Trade Term
Payment: 30% deposit By T/T, Western Union, 70% before delivery.
Production Lead time: 7~25days; If we have this item of your q’ty in stock , 2days delivery.
Shipping methods: You can choose EMS/DHL/UPS/Fedex/TNT/standard airfreight or ocean freight via international forwarder according to gross weight & Volume. In order not to increase the risk of losing goods and shipping time, We don’t suggest <China post air mail/China post parcel/HK post air mail/HK post air parcel> although it would be much cheaper than other shipping ways.
FOB Shipping port: Ningbo or Shanghai, Mainland China.
Remark: If you want to deal with EXW/CIF/CNF term instead of FOB, please specify. Otherwise, FOB price will be quoted under inquiry.
