New plastic aluminum foot switch
- 10 Piece / Pieces per Month
- Ningbo or Shanghai China
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | CNXY | Model Number: | CFS series |
Max. Current: | 15A | Max. Voltage: | 250VAC |
Product Description
Specifications
New plastic aluminum foot switch1.Best material
2.Long life
petitive price
4.CE,CCC,ISO9001:2000
New plastic aluminum foot switch
Features
Designation | Model | Rating | Type of switch enclosed & contact arrangement | Cable | Cantact | Action | Material of Rind |
Standard Type Momentary Action | CFS-101 | 10A 250VAC | Micro-switch momentary | 0.75mm2, 3C/0.5 meter, | 1A1B | 1.2 kg | Plastics Aluminum Cast |
CFS-102 | 15A 250VAC | CM1704 | 0.75mm2, 3C/1meter, | 1A1B | 1.1 kg | ||
CFS-3 | 10A 250VAC | Micro-switch momentary 2PCS | 0.75mm2, 6C/1meter, | 2A2B | 1.2 kg | ||
CFS-3S | 15A 250VAC | CM1704 | 0.75mm2,6C/1 meter, | 2A2B | 1.1 kg | ||
Standard Type Alternate Action | CFS-105 | 6A 250VAC | Imported alternative switch | 0.75mm2, 2C/1 meter, | PUSH ON PUSH OFF | 2 kg | Plastics Aluminum Cast |
CFS-106 | 6A 250VAC | Imported micro-switch | 0.75mm2, 3C/1 meter | PUSH 1A PUSH 1B | 1.5 kg | Plastics | |
Mini Foot Switch Foot End Push | CFS-201 | 10A 250VAC | Micro-switch Momentary | 0.5mm2, 3C/1 meter-3 meter | 1A1B | 0.7 kg | Plastics |
CFS-01 | 10A 250VAC | 0.5mm2, 3C/1 meter-3 meter | 1A1B | 0.7 kg | |||
CFS-1 | 10A 250VAC | 0.5mm2, 3C/1 meter -3 meter | 1A1B | 0.9 kg | |||
Protective Guard Foot Switch | CFS-302 | 15A 250VAC | CM1704 | Accessory: Cable gland | 1A1B | 3.2 kg | Plastics and Aluminum Cast |
CFS-305 | 6A 250VAC | Pushbutton switch alternate action | PUSH ON PUSH OFF | 3.1 kg | |||
CFS-306 | 6A 250VAC | Imported micro-switch | PUSH 1A PUSH 1B | 3.5 kg | |||
Large Type | CFS-402 | 15A 250VAC | CM1704 | 1A1B | 3.2 kg |
NOTES: 1, Add R for waterproof, available in CFS3 & CFS4.
2, Add Z for aluminum housing, available in CFS1, CFS# & CFS4.

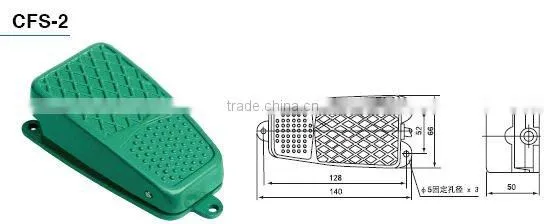

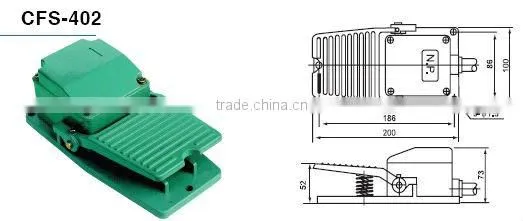

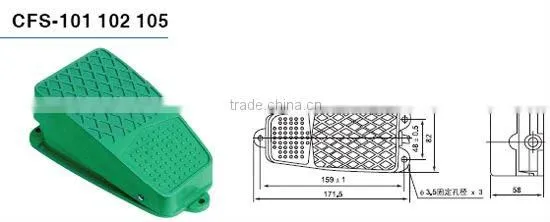

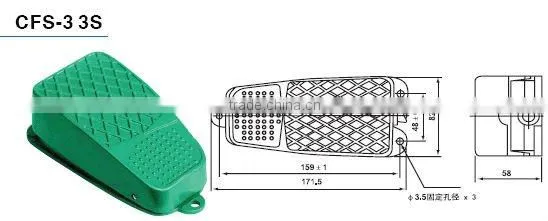

Appearance and dimension
Why us
Gold supplier authenticated by ALIBABA.
Safe and easy to buy from us.
Trade Term
Payment: 30% deposit By T/T, Western Union, 70% before delivery.
Production Lead time: 7~25days; If we have this item of your q’ty in stock , 2days delivery.
Shipping methods:You can choose EMS/DHL/UPS/Fedex/TNT/standard airfreight or ocean freight via international forwarder according to gross weight & Volume. In order not to increase the risk of losing goods and shipping time, We don’t suggest <China post air mail/China post parcel/HK post air mail/HK post air parcel> although it would be much cheaper than other shipping ways.
FOB Shipping port: Ningbo or Shanghai, Mainland China.
If you want to deal with EXW/CIF/CNF term instead of FOB, please specify. Otherwise, FOB price will be quoted under inquiry.
