2012 new hot sale micro switches 15A1.High accuracy
2.Virous of actuators
3.Competitive price
4.CE,ROHS
2012 new hot sale micro switches 15A

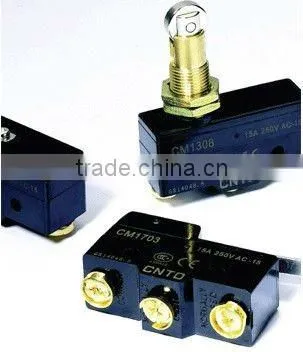

Model:CM Series
Features

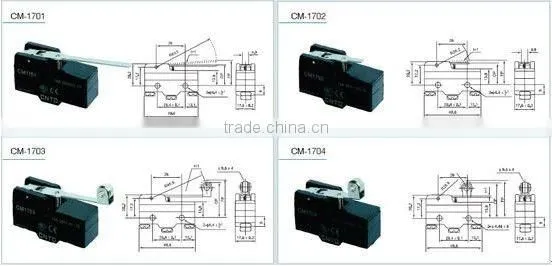

Virous of actuators, action position is adjustable (such as CM1701)
High switch on and off capacity(15A)
High accuracy
Wide range of operation speed
Each type of CM series has solder terminal, screw terminal and tab terminal are selective
Add A for solder terminal, add C for tab terminal, blank for screw terminal
Contact Form
Ratings
|
Noninductive Load |
Inductive Load |
Inrush Current |
|||||||
Resistance Load |
Lamp Load |
Inductive Load |
Motor Load |
|||||||
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
|
125VAC |
15 |
3 |
1.5 |
15 |
5 |
2.5 |
30 max. |
15 max. |
||
8VDC |
15 |
3 |
1.5 |
15 |
5 |
2.5 |
||||
Characteristics
|
0.01mm-1m/sec |
Operating frequency |
Mechanical: 240 operations/min. |
Electrical: 20 operations/min. | |
Contact resistance |
15mΩ max. (initial value) |
Insulation resistance |
100mΩ min. (at 500VDC) |
Dielectric strength |
1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts | |
1500VAC, 50/60 HZ for 1 minute between each terminal and ground | |
Vibration frequency |
10-55HZ,1.5mm double amplitude |
Shock |
Mechanical durable: 1, 000m/Sec2 (about 100G'S) |
Ambient temperature |
General purpose type: -25°C to +80°C, Sealed type: -15°C to +80°C |
Humidity |
General purpose type: 85% RH max., Sealed type: 95% RH max. |
Life |
Mechanical: 20,000,000 operations min. |
Weight |
About 22g to 58g |
Degree of protection |
IP65 |
