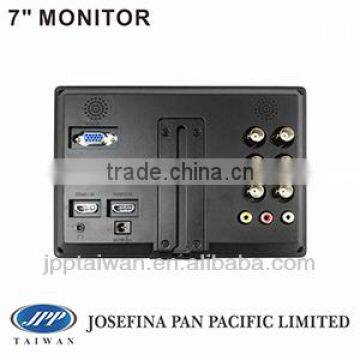

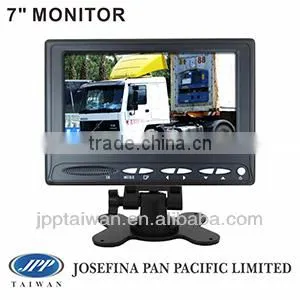

M-CM702KS-SDI, 7" SDI Monitor, 7" HD SDI Monitor, 7" LCD Monitor With Hd-sdi Input

Negotiable MOQ: 1 Carton (Price negotiable depending on order volume and customization)

Key Specifications

Screen Size:

Other, 7"

Screen Type:

16:9

Placement:

Dashboard

Josefina Pan Pacific Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

FOR Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Screen Size Other, 7"

Screen Type 16:9

Placement Dashboard

Combination Other, HD-SDI input

Place of Origin Guangdong, China

Brand Name JPP

Model Number M-CM702KS-SDI

Warranty 1 Years

Specifications

M-CM702KS-SDI, 7" SDI monitor, 7" HD SDI monitor, 7" LCD monitor with hd-sdi input

M-CM702K-SDI, 7" SDI monitor, 7" HD SDI monitor, 7" LCD monitor with hd-sdi input

7" High Performance HD-SDI LED Monitor for CCTV market

* Slim design & easy operation

SPECIFICATION
Model	M-CM702KS-SDI
Type	TFT- LCD Color Monitor
Screen Size	7 inches(154mm×86.6mm)
Resolution(H×V)	1024×RGB×600
Backlight	LED
Input signal	SDI--- 0.8Vp-p 75Ω
	HDMI---1.2Vp-p 100Ω
	YPbPr---0.5~1Vp-p 75Ω
	VGA---0.7Vp-p 75Ω
	Video---1.0Vp-p 75Ω
	Audio---1.0Vp-p 680Ω
Output signal	SDI--- 0.8Vp-p 75Ω
	Audio---0.5W 8Ω(Speaker),
Video color system	NTSC & PAL auto switch
Input Jack	1SDI in, 1YPbPr in, 1VGA in, 2 HDMI in, 2 Video in, 2 Audio in, 1 DC in.
Output jack	1 SDI out, 2 earphone out.
Brightness	250 nit
Contrast Ratio	250:1
View angle (U/D/L/R)	50 / 70 / 70 / 70 degrees
Power supply	DC10~16V input
Power consumption	8W
Operation temp.	-10°C~+60°C
Storage temp.	-20°C~+70°C
Dimensions (L×H×D)	190×135×34mm
Weight	450g
SDI Support mode	Mode SMPTE Type
1	1080I @60Hz SMPTE260M HDTV
2	1080I @60Hz SMPTE274M HDTV
3	1080I @50Hz SMPTE274M HDTV
4	1080I @50Hz SMPTE295M HDTV
5	1080P @30Hz SMPTE274M HDTV
6	1080P @25Hz SMPTE274M HDTV
7	1080P @24Hz SMPTE274M HDTV
8	720P @60Hz SMPTE296M HDTV
9	720P @50Hz SMPTE296M HDTV
10	NTSC SMPTE267 SDTV
11	PAL-I ITU-R BT601.5 SDTV
12	PAL-B,G,H ITU-R BT601.5 SDTV
13	PAL-N ITU-R BT601.5 SDTV
14	1080P @50Hz 3G
15	1080P @60Hz 3G
