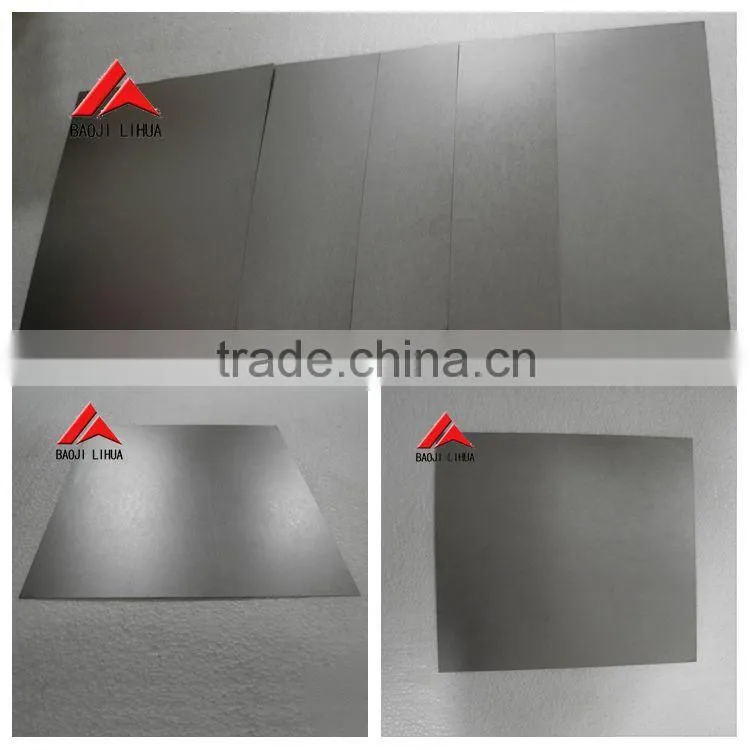

pure tungsten plate
tungsten sheet feature |
|
Tungsten sheet and plates are produced from billets by special cold and hot rolling technology. There are many features for tungsten sheet. Radiation shielding effect equivalent to that of lead (For example, tungsten sheet of 1.2mm thickness has the same radiation shielding effect as that of lead plate of 1.3mm thickness: 1.3mm lead equivalent.) Price is less than half that of tungsten alloy having the same radiation shielding effect. Machinability: Easier to machine than lead, that is, the sheet can be cut or holed with home-use scissors, formed into shape having any curved surface; softer than lead, retractable, foldable, and durable to repeated bending. Easy to handle (No risk of pollution by lead) Excellent thermal plasticity, possible to form into shape having cylindrical or complicated curved surface |
Item Name |
pure tungsten plate |
|||
Material |
Tungsten |
|||
Standard |
ASTM B760 |
|||
Pure |
99.95%(min) |
|||
| Surface | Polished or alkaline washed | |||
| Specification | tungsten sheet | Thickness | Width | Length |
| Normal size | min: 0.10mm max: >6.0mm |
<400mm | <1000mm | |
| Special size | <0.10mm | Discussion | Discussion | |
We can supply the above, Special requirements to be agreed upon by the supplier and buyer | ||||
| Density | 19.3g/cm3 | |||
| Melting Point | 3410 Degrees Celsius | |||
| Boiling Point | 5927 Degrees Celsius | |||
| Application | 1. Metallurgy industry, chemical industry, machinery industry, Medical; 2. Electronics technology industry source technology industry; 3. Electric light source parts,heat shield; 4. Tungsten boat, high temperature furnace; 5. Computer, communications technology, optical materials, medicine; 6. Aerospace development, new energy materials, photosensitive material and catalyst materials |
|||
Certificate |
ISO9001:2008, TUV, material test certificate acc EN10204.3.1 |
|||
| Chemical composition | ||||||||||
| W | Impurity content ( % ) , ≤ | |||||||||
Al |
Ca |
Fe |
Mg |
Mo |
Ni |
Si |
C |
N |
O |
|
blance |
0.002 |
0.005 |
0.005 | 0.003 | 0.01 | 0.003 | 0.005 | 0.008 | 0.003 | 0.005 |
Package |
FAQ |
|
Q1.--How can you ensure the product quality? --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
|
Q2.--Can you print our LOGO on the products? --Sure, and we welcome the customerized products. |
|
Q3.--Can we get the free sample? --Sure. |
|
Q4.--What about the payment terms? --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
|
Q5.--Do you have your website? --Yes, Please click here. (Independent website) |
|
Q6.--What is the necessary information for a inquiry? --Product name, specification, material grade and quantity. |
