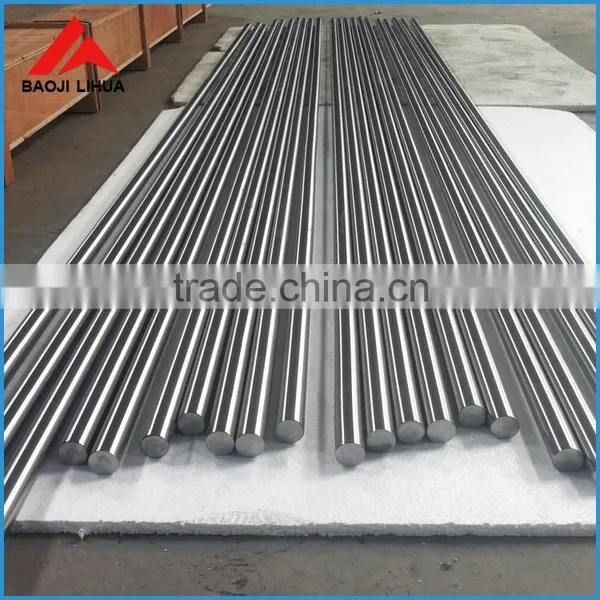

GR5 titanium rods titanium price per kg
- 50000 Kilogram / Kilograms per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- titanium bar/rod
- Factory direct sales of Chuanghui TA1TA2TC4 alloy pure titanium titanium rod medical equipment construction material
- Popular HOT spot supply of Chuanghui titanium alloy GR2GR5 bar mechanical accessories medical experimental equipment
- Spot supply of Chuanghui titanium alloy GR2GR5 bars, mechanical accessories, medical experimental equipment, high-precision processing
- Popular HOT spot Chuanghui titanium alloy GR2GR5 bar mechanical accessories medical equipment
- titanium bar
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | LH | Model Number: | D(0.8mm-350mm)*L(<8000mm) |
Application: | Industrial | Diameter: | <350mm | Shape: | Round |
Length: | <8000mm | Technique: | Rolled | Grade: | titanium, Gr1,2,3,4,5,7,9,12,23 |
Weight: | Actual weight |
Product Description

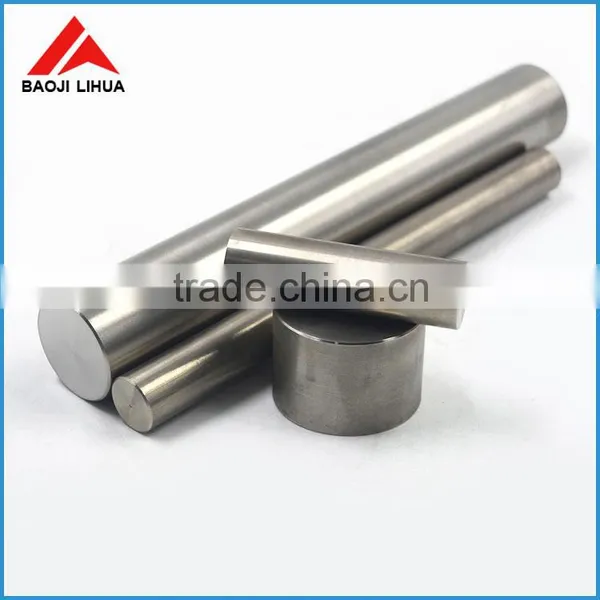

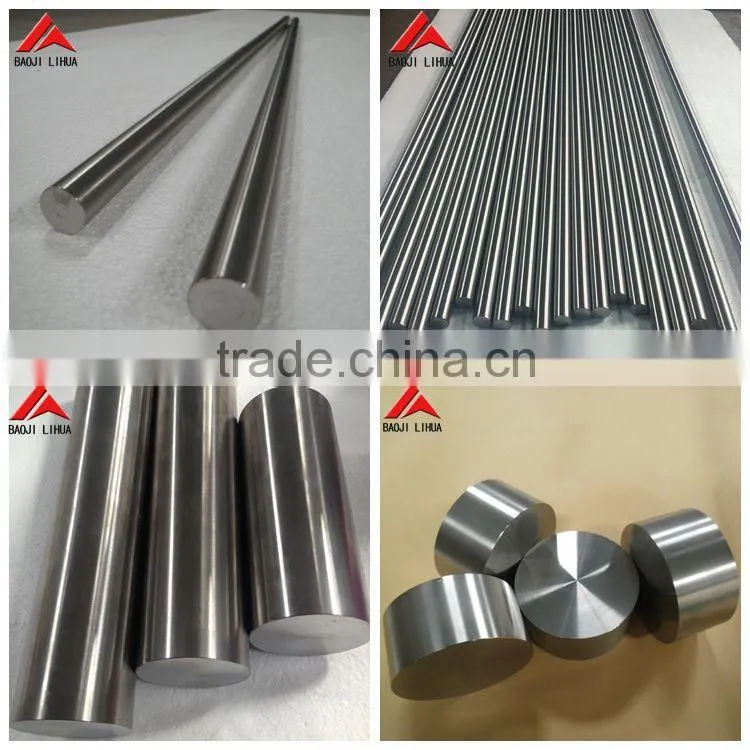

GR5 titanium rods titanium price per kg
Item Name | astm b348 grade 5 titanium bar |
Standard | ASTM B348,ASTM F67,ASTM F136, AMS 4928 |
Material | Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr12,Gr23 |
Diameter | 3~350mm |
Length | 500~6000mm or according to customers' request |
Product Status | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
Shape | Round bar, square bar , hex bar... |
Certificate | ISO9001:2008, TUV, material test certificate acc EN10204.3.1 |
Physical Properties | |||||
Grade | Tensile Strength(min) | Yeild Strength(min) | Elongation(%) | ||
ksi | MPa | ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
3 | 65 | 450 | 55 | 380 | 18 |
4 | 80 | 550 | 70 | 483 | 15 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
9 | 90 | 620 | 70 | 483 | 15 |
12 | 70 | 483 | 50 | 345 | 18 |
23 | 120 | 828 | 110 | 759 | 10 |
Chemical composition | |||||||||||
Grade | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal |
2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | Bal |
3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | Bal |
4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | / |
5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
12 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |
23 | 0.03 | 0.08 | 0.0120 | 0.25 | 0.13 | 5.5-6.50 | 3.5-4.5 | / | / | / | Bal |
