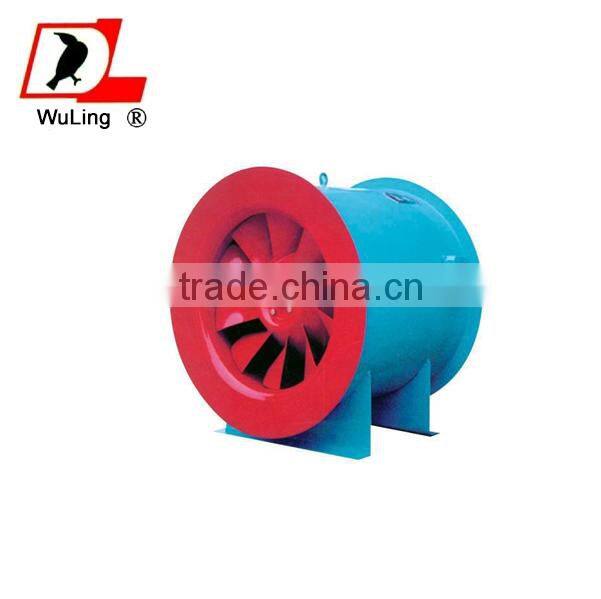

SWF SERIES HI-EFFICIENCY LOW-NOISE MIXED-FLOW FAN
SWF FEATURES:
High Efficiency, Wide Hi-efficiency Range,Widely used in hotels, museum, gym, textile industry, ship, residential and house for ventilation. It also can be used for duct pressurizing, air supplying, air exhausting and ventilation in the construction.
The fan is a hi-tech product developed by advanced CAD software system and performance prediction design. The pressure is higher than that of axial-flow fan, air-flow rate is larger than that of centrifugal fan.Compactness in structure, Convenient in installation, Reliable operation: Under the same air flow, air pressure, volume of the fan is smaller than that of both axial-flow fan and
centrifugal fan. The fan can be directly connected with round air duct and can be mounted in horizontal or vertical way. It also can be directly mounted on the wall or on the support, also can be directly driven by motor.
Low Noise: Using special designed casing greatly reduces turbulent flow noise. Under condition of unit airflow, air pressure, noise reduces 2-3dB (A). Meanwhile you can get higher air pressure under low fan speed. It can replace low-pressure centrifugal fan, high-pressure axial-flow fan in industrial enterprise, civil buildings without any noise elimination.Suitable for use with large scope to meet various purpose, the fan is made in single or
dual speed, adjustable blade angle, changeable blade numbers and speed.
Specification:
SWF series mix flow fan with the charateristics of low noise, high efficiency, huge air flow, the transmitted medium should be non causticity air, non inflammable and explosive air and no notable dust air with the temperature between 80 centigrade, the dust and solid impurities containing index should be less than 150mg/m3.
Technical parameter form :
Instalation and dimension figure:
1.Export Plywood Box Packing
2.BOX Carton Box
3.Pallet
Delivery Detail:5-30 days
1)Your inquiry and question will be replied within 24 hours.
2)Professional foreign sales staff gives you best service.
3)Our products include: ventilation fan, air duct, air valve, air vent, plenum chamber, muffler, soft connecter and accessories
4)All our products will be provided with best quotation, excellent quality and prompt delivery.
5)Sample is available by express.
6)OEM is available.
Shanghai wuling Safety and Protection Equipment Co., Ltd was established in 1992, Located in Shanghai,China, is a ventilation equipment and valve as the center, research and development, production, sales and service as an integrated enterprise. After more than 13 years development, at present in the factory with CNC plasma, sheet metal, metal stamping,sheat,Riveting, Welding, dynamic balance, general and numerical control equipment and precise measuring and test equipment.And We passed ISO9001:2008 international quality system authentication.
Our company accumulates the talent and experienced technical people who rich in fan and valve system field,they are the solid guarantee of our quality. engineers and technicians accounted for over 20% of the number of the company. Since the establishment of the company, products are widely recognized by the market and users, win good reputation.Shanghai Stadium ,Pudong Airport,etc are our client.
Any need,Please feel free to contact us to get the products meet your market.we will offer highest quality products and value-added services to you.
♦What kind of cable do you produce?
•We specialize in producing industrial fan,fire damper,exhaust smoke valve etc.
♦What is your MOQ?
• Normally, the MOQ is just 1 PCS.
♦What is your delivery time?
• Normally, our delivery time is 15 days after received deposit. It is base on the quantity of the order.
♦What is your payment term?
• Normally, we accept T/T or other payment, we can negotiate with customers.
♦What is your quality?
• We have special quality control department to ensure our good quality
♦Can your factory customize cables basing on customer's sample?
• Yes, we can. OEM/ODM is available.
