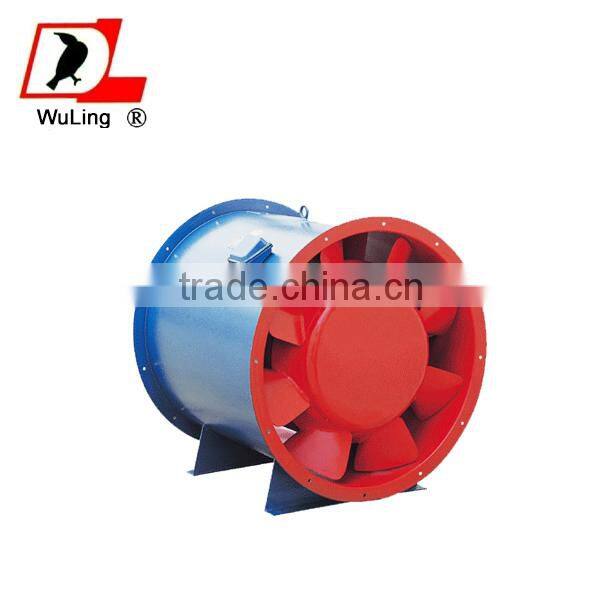

Gxf Oblique Flow Pipeline Ventilating Industrial Fan
- 500 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Electric Current Type: | AC | Mounting: | Duct Fan | Blade Material: | Cast Iron |
Place of Origin: | Shanghai, China | Brand Name: | wuling | Model Number: | GXF |
Voltage: | 220/230/380/400/415/420/440/480V Etc | Power: | 30KW | Air Volume: | 3500-30249 m3/h |
Certification: | CE | After-sales Service Provided: | Overseas third-party support available |
Product Description
Long Life Stable Gxf Series Mixed (diagonal) Flow Blower
It has a drum structure. The small air inlet and outlet will accelerate the rate of air flow. It has a high pressure coefficient. In the case of same device number with general axial flow fans, the flow and pressure of it will be higher than those of general axial flow fans. Therefore, they are especially applicable to the place with a small room of pipeline installation.
product feature
1.Simple structure, lower noise, low-pressure .
2. Difference impeller angle can be choose based your needed,such as 15°,20°,25°,30°, 35°.
3.100% performance test before shipping.
4.Total 13 difference types based the impeller dimension, including 280mm dia, 315mm dia, 355mm dia, 400mm dia, 450mm dia, 500mm dia, 560mm dia, 630mm dia, 710mm dia, 800mm dia, 900mm dia, 1000mm dia, 1120mm dia.
5.Impellers were drove directly by the power-generating.
The motor of T35/BT35 axial-flow fan is improved and the loss of air flow is reduced. Therefore, the efficiency of the fans is 89.5% higher when the noise is much lower. We strengthen the welding of blades and impeller so that the blades can avoid breaking. The BT35 series axial fan is divided into 5 kinds of blade installation angle such as 15°,20°,25°,30°, 35°.
Application:
The fans may be extensively applied to industrial and mining enterprises, hotels, museums, gyms, and so on for pipeline pressurization, and air blowing and exhaust, and ventilation of high-rise and common buildings. The temperature of gas to be delivered shall be in the range of -20 to 80℃; and the dust content in the gas shall not be more than 100mg/m3.
Technical parameter form :
Model | Speed | Air flow | Wind pressure | Single speed power | Double speed power | Noise | Weight |
NO | R/min | (m³/h) | (Pa) | (kw) | (kw) | dB(A) | (kg) |
4A | 2900 | 7260 | 490 | 2.2 | 2.4/2 | 86 | 63 |
6845 | 651 | ||||||
6403 | 803 | ||||||
5928 | 903 | ||||||
5134 | 1012 | ||||||
1455 | 3810 | 132 | 0.37 | 70 | 40 | ||
3496 | 163 | ||||||
3151 | 198 | ||||||
2898 | 210 | ||||||
2472 | 220 | ||||||
4B | 1450 | 4527 | 175 | 0.55 | 76 | 54 | |
4163 | 218 | ||||||
3766 | 271 | ||||||
3438 | 293 | ||||||
3075 | 308 | ||||||
4.5A | 2900 | 9897 | 556 | 3 | 3/2.4 | 87 | 82 |
9164 | 760 | ||||||
8365 | 927 | ||||||
7483 | 1023 | ||||||
6480 | 1089 | ||||||
1450 | 5416 | 168 | 0.55 | 73 | 50 | ||
4971 | 206 | ||||||
4473 | 250 | ||||||
4120 | 266 | ||||||
3514 | 278 | ||||||
4.5B | 1450 | 6390 | 223 | 0.75 | 77 | 64 | |
5878 | 276 | ||||||
5317 | 343 | ||||||
4854 | 371 | ||||||
4341 | 390 | ||||||
5A | 2900 | 12083 | 498 | 4 | 4/3 | 90 | 102 |
11249 | 659 | ||||||
9360 | 1008 | ||||||
6976 | 1152 | ||||||
3120 | 1286 | ||||||
1450 | 7471 | 207 | 0.75 | 74 | 63 | ||
6856 | 254 | ||||||
6179 | 309 | ||||||
5684 | 328 | ||||||
4848 | 343 | ||||||
5B | 1450 | 8876 | 275 | 1.5 | 81 | 84 | |
8164 | 341 | ||||||
7385 | 423 | ||||||
6741 | 458 | ||||||
6030 | 481 | ||||||
5.5A | 2900 | 17656 | 839 | 7.5 | 8/6.5 | 93 | 145 |
15794 | 1165 | ||||||
13676 | 1398 | ||||||
11167 | 1522 | ||||||
7897 | 1580 | ||||||
1450 | 9664 | 231 | 1.5 | 80 | 88 | ||
9111 | 308 | ||||||
8523 | 380 | ||||||
7891 | 427 | ||||||
6833 | 479 | ||||||
5.5B | 1450 | 11814 | 333 | 2.2 | 82 | 105 | |
10868 | 413 | ||||||
9829 | 512 | ||||||
8974 | 554 | ||||||
8026 | 582 | ||||||
6A | 2900 | 20829 | 747 | 11 | 11/9 | 93 | 213 |
19392 | 989 | ||||||
16134 | 1512 | ||||||
12025 | 1729 | ||||||
8379 | 1930 | ||||||
1450 | 13488 | 298 | 2.2 | 81 | 105 | ||
12341 | 366 | ||||||
11106 | 445 | ||||||
10231 | 472 | ||||||
8726 | 494 | ||||||
6B | 1450 | 13875 | 341 | 3 | 85 | 120 | |
12896 | 472 | ||||||
11835 | 556 | ||||||
10667 | 635 | ||||||
9355 | 673 | ||||||
6.5A | 2900 | 25893 | 877 | 15 | 11/14 | 96 | 234 |
24106 | 1162 | ||||||
20056 | 1776 | ||||||
16688 | 2031 | ||||||
13688 | 2166 | ||||||
1450 | 16571 | 237 | 3 | 85 | 114 | ||
15428 | 314 | ||||||
12836 | 480 | ||||||
10680 | 548 | ||||||
8760 | 585 | ||||||
6.5B | 1450 | 16762 | 365 | 3 | 86 | 120 | |
15382 | 447 | ||||||
13865 | 544 | ||||||
12754 | 578 | ||||||
10876 | 604 | ||||||
7A | 1450 | 26251 | 654 | 11 | 11/9 | 90 | 259 |
24438 | 781 | ||||||
22985 | 852 | ||||||
21432 | 915 | ||||||
19761 | 945 | ||||||
960 | 16332 | 241 | 2.2 | 84 | 154 | ||
15024 | 300 | ||||||
13588 | 372 | ||||||
12405 | 403 | ||||||
11095 | 423 | ||||||
7B | 1450 | 21927 | 430 | 4 | 85 | 146 | |
20122 | 526 | ||||||
18138 | 640 | ||||||
16683 | 679 | ||||||
14229 | 710 | ||||||
8A | 1450 | 36350 | 745 | 15 | 11/14' | 94 | 340 |
33444 | 924 | ||||||
30249 | 1146 | ||||||
27615 | 1249 | ||||||
24699 | 1304 | ||||||
960 | 21815 | 248 | 3 | 81 | 195 | ||
20020 | 309 | ||||||
18046 | 371 | ||||||
16597 | 394 | ||||||
14156 | 412 | ||||||
8B | 960 | 24409 | 316 | 5.5 | 85 | 221 | |
22506 | 392 | ||||||
20309 | 486 | ||||||
18541 | 527 | ||||||
16582 | 553 | ||||||
9A | 1450 | 45424 | 732 | 15 | 11/14 | 91 | 382 |
41684 | 896 | ||||||
37574 | 1088 | ||||||
34588 | 1156 | ||||||
29475 | 1207 | ||||||
960 | 29806 | 284 | 4 | 79 | 278 | ||
28050 | 325 | ||||||
25688 | 397 | ||||||
23629 | 450 | ||||||
20151 | 479 | ||||||
9B | 960 | 32436 | 368 | 7.5 | 88 | 362 | |
30246 | 465 | ||||||
27886 | 570 | ||||||
26191 | 635 | ||||||
22429 | 702 | ||||||
10A | 1450 | 55569 | 687 | 18.5 | 16/13 | 91 | 428 |
51733 | 824 | ||||||
47588 | 942 | ||||||
43043 | 1112 | ||||||
35145 | 1192 | ||||||
960 | 36790 | 301 | 5.5 | 81 | 395 | ||
34247 | 361 | ||||||
31503 | 412 | ||||||
28494 | 487 | ||||||
23266 | 522 | ||||||
10B | 960 | 40514 | 367 | 11 | 86 | 440 | |
38198 | 485 | ||||||
34426 | 640 | ||||||
31667 | 692 | ||||||
28647 | 760 | ||||||
11A | 960 | 64085 | 610 | 22 | 20/15 | 94 | 610 |
58950 | 757 | ||||||
53323 | 940 | ||||||
48677 | 1017 | ||||||
43537 | 1068 | ||||||
720 | 42547 | 265 | 5.5 | 82 | 430 | ||
39045 | 325 | ||||||
35195 | 396 | ||||||
32370 | 420 | ||||||
27609 | 439 | ||||||
11B | 960 | 53969 | 444 | 15 | 88 | 557 | |
50855 | 581 | ||||||
45867 | 773 | ||||||
42191 | 836 | ||||||
38162 | 918 | ||||||
12A | 960 | 70926 | 528 | 2 | 20/15 | 94 | 718 |
66881 | 698 | ||||||
60285 | 922 | ||||||
55454 | 966 | ||||||
50158 | 1095 | ||||||
720 | 53886 | 326 | 7.5 | 84 | 544 | ||
49432 | 399 | ||||||
44558 | 485 | ||||||
40982 | 515 | ||||||
34954 | 538 | ||||||
12B | 960 | 66363 | 447 | 15 | 91 | 602 | |
59361 | 621 | ||||||
51404 | 761 | ||||||
41971 | 812 | ||||||
29681 | 842 | ||||||
13A | 960 | 89950 | 633 | 37 | 30/15 | 97 | 968 |
84808 | 836 | ||||||
76444 | 1103 | ||||||
70319 | 1193 | ||||||
63603 | 1310 | ||||||
720 | 71199 | 382 | 15 | 87 | 812 | ||
65338 | 467 | ||||||
58895 | 568 | ||||||
54169 | 603 | ||||||
46201 | 631 | ||||||
13B | 720 | 71949 | 415 | 22 | 92 | 991 | |
66868 | 573 | ||||||
61363 | 676 | ||||||
55310 | 772 | ||||||
48509 | 819 | ||||||
14A | 960 | 114829 | 798 | 45 | 45/22 | 98 | 1227 |
105377 | 977 | ||||||
94925 | 1188 | ||||||
86965 | 1261 | ||||||
74514 | 1318 | ||||||
720 | 86122 | 448 | 18.5 | 89 | 920 | ||
79033 | 549 | ||||||
71194 | 668 | ||||||
65224 | 709 | ||||||
55885 | 741 | ||||||
14B | 720 | 83109 | 407 | 22 | 90 | 954 | |
78353 | 542 | ||||||
73292 | 662 | ||||||
67856 | 752 | ||||||
58763 | 843 |

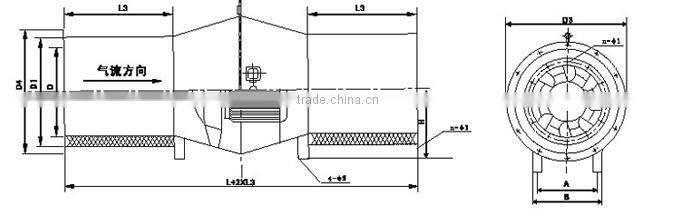

Instalation and dimension figure:
The GXF-A low-speed, GXF-B dimension table
Model | D1 | D2 | L | H | M4 |
NO | |||||
4 | 410 | 470 | 450 | 270 | 300 |
4.5 | 460 | 520 | 450 | 300 | 350 |
5 | 510 | 580 | 500 | 310 | 400 |
5.5 | 560 | 630 | 570 | 335 | 450 |
6 | 610 | 690 | 570 | 375 | 500 |
6.5 | 660 | 740 | 570 | 400 | 500 |
7 | 710 | 790 | 600 | 435 | 550 |
8 | 810 | 890 | 730 | 485 | 600 |
9 | 910 | 990 | 800 | 530 | 700 |
10 | 1010 | 1090 | 920 | 600 | 700 |
11 | 1110 | 1260 | 1030 | 650 | 800 |
12 | 1210 | 1310 | 1100 | 700 | 900 |
13 | 1310 | 1410 | 1150 | 755 | 900 |
14 | 1410 | 1510 | 1230 | 855 | 1100 |
Note: the GXF type can also be equipped with import and export muffler, a method of adding the same type XSJG, can generally be silencing 6-10dB (A)
1.Export Plywood Box Packing
2.BOX Carton Box
3.Pallet
Delivery Detail:5-30 days
1)Your inquiry and question will be replied within 24 hours.
2)Professional foreign sales staff gives you best service.
3)Our products include: ventilation fan, air duct, air valve, air vent, plenum chamber, muffler, soft connecter and accessories
4)All our products will be provided with best quotation, excellent quality and prompt delivery.
5)Sample is available by express.
6)OEM is available.
Shanghai wuling Safety and Protection Equipment Co., Ltd was established in 1992, Located in Shanghai,China, is a ventilation equipment and valve as the center, research and development, production, sales and service as an integrated enterprise. After more than 13 years development, at present in the factory with CNC plasma, sheet metal, metal stamping,sheat,Riveting, Welding, dynamic balance, general and numerical control equipment and precise measuring and test equipment.And We passed ISO9001:2008 international quality system authentication.
Our company accumulates the talent and experienced technical people who rich in fan and valve system field,they are the solid guarantee of our quality. engineers and technicians accounted for over 20% of the number of the company. Since the establishment of the company, products are widely recognized by the market and users, win good reputation.Shanghai Stadium ,Pudong Airport,etc are our client.
Any need,Please feel free to contact us to get the products meet your market.we will offer highest quality products and value-added services to you.
♦What kind of cable do you produce?
•We specialize in producing industrial fan,fire damper,exhaust smoke valve etc.
♦What is your MOQ?
• Normally, the MOQ is just 1 PCS.
♦What is your delivery time?
• Normally, our delivery time is 15 days after received deposit. It is base on the quantity of the order.
♦What is your payment term?
• Normally, we accept T/T or other payment, we can negotiate with customers.
♦What is your quality?
• We have special quality control department to ensure our good quality
♦Can your factory customize cables basing on customer's sample?
• Yes, we can. OEM/ODM is available.
Contact Us
- Shanghai Wuling Safety And Protection Equipment Co., Ltd.
- Contact nameJoy li
- Phone0086-021-57458800
- AddressNo. 6019, Huancheng East Road
