Best selling HSZ 2 ton 3 ton 5 ton pulley chain block hs type chain block Quality Choice
- 50000 Piece / Pieces per Month
- Tianjin port
- T/T Credit Card
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Low Head Room Wire Rope Electric Hoist
- Stage Chain Hoist Fashion Mini Cool Design
- Wholesale manual hand operated hoist HSZ chain pulley block hoist for factory
- manual door frame pallet stacker
Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | OEM |
Model Number: | HSZ | Usage: | Construction Hoist | Power Source: | Hand Chain |
Sling Type: | Chain | Maximum Lifting Weight: | 10 ton | Maximum Lifting Height: | 12m |
Lift Speed: | hand operated | Certification: | CE GS | Warranty: | 1 year |
After-sales Service Provided: | Overseas third-party support available |
Product Description

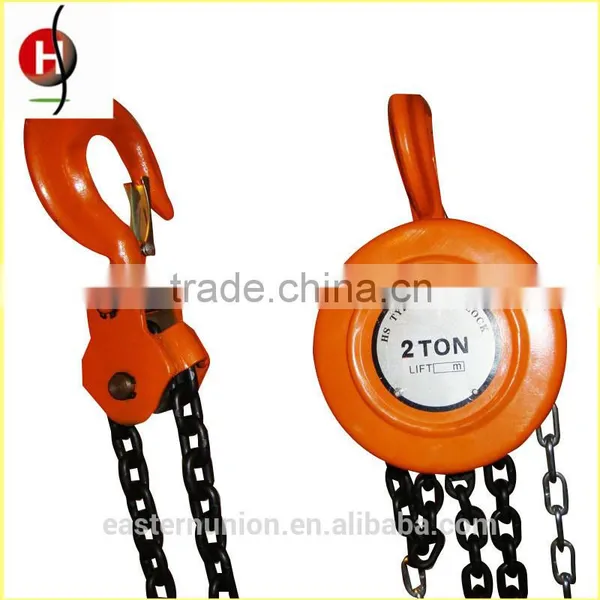

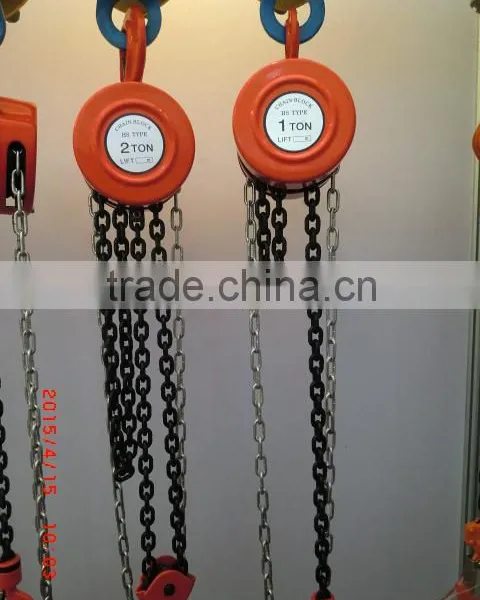

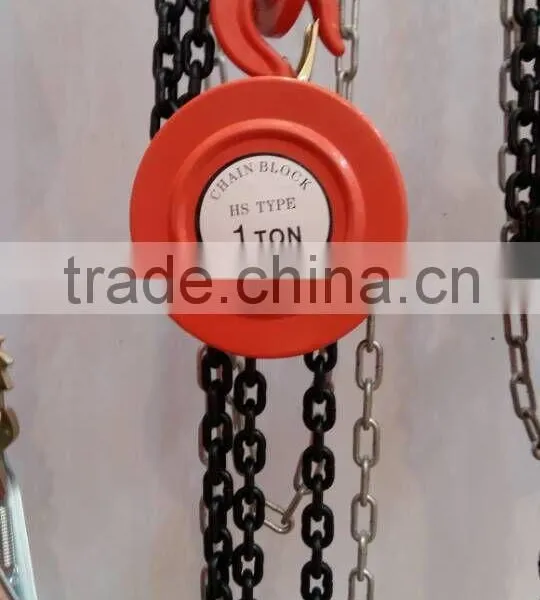

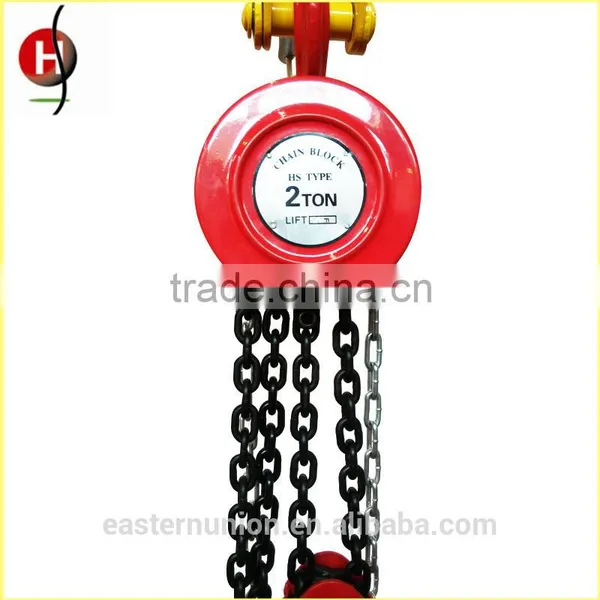

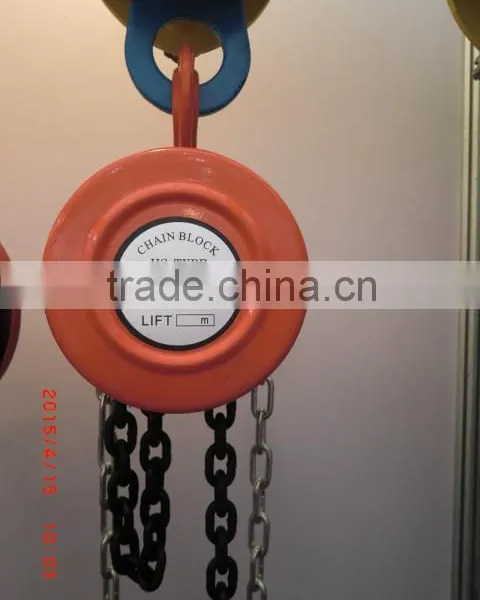

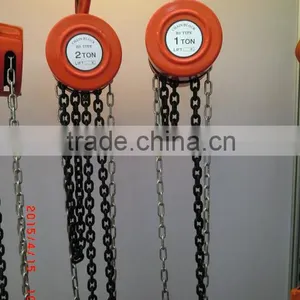

HSZ Type Manual Chain Pulley Block
Details:
Capacity: From 0.5T to 20T
Lifting Height: From 3M to 12M
Catalog:
Model | HSZ 0.5 | HSZ 1 | HSZ 1.5 | HSZ 2 | HSZ 3 | HSZ 5 | HSZ 10 |
Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
Standard lifting height(m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 |
Min. headroom (hook to hook)(mm) | 270 | 270 | 368 | 444 | 486 | 616 | 700 |
Chain pull to lift full load (N) | 225 | 309 | 343 | 314 | 343 | 383 | 392 |
No. of load chain fall lines | 1 | 1 | 1 | 2 | 2 | 2 | 4 |
Diamter of load chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 |
Net Weight(kg) | 9.5 | 10 | 16 | 14 | 24 | 36 | 68 |
Application:
HSZ Series Manual Chain Block is a widely used manual hoisting machinery which is easy to use and carry. Heavy duty and compact design to meet all pertinent world standard. Drop forged and expertly heat treated hooks for great strength and long wearing.
It is suitable for use in factories, mines, farms, construction sites, agricultural production, and in wharfs, docks and storages for fixing machines, lifting cargos, and loading and unloading goods.It is especially advantageous for lifting work in the open air and places where no power supply is available.
The chain block can be attached to a trolley of any type as a traveling chain block.It is suitable to monorail overhead conveying system, handtravelling crane and jib crane.
Feature:
Safe, reliable in operation with minimum maintenance;
High effiency and small hand pull;
Light weight and easy handling;
Fine appearance with small size;
Durability in service.

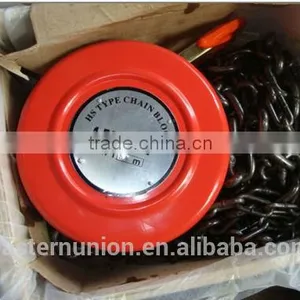

Packing Details:
Company Introduction:
EASTERN UNION GROUP has its own factory with more than 20 years histories, specialized in chain block, lever block, electric hoist, hand pallet truck, trolley, lifting chains, chain sling, etc. With R&D system, we also welcome OEM project.
As a multi functional enterprise with integrating international trade, information consulting and etc, our company make progress to offer our clients higher-quality services, during many years we have gained higher and higher reputation in this area based on building a long-term cooperation with our customers.
Perfect and complete import and export related services, international transport network and a long-term cooperation with mutual benefit, all these has knitted a large net to meet our customer's requirements. Most of our products are exported to North and South America, Southeast Asia, Africa, Mid East, Europe etc.
Offer you the best service, supply you the first-class product and to be your sincere partner forever!
