Specifications
1) BV identification
2) High-quality product
3) Smooth operation
4) Reasonable structure
5) Steady performance

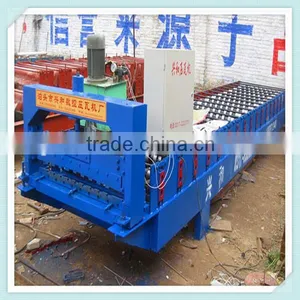

800 Shutter door roll formin machine
Working process

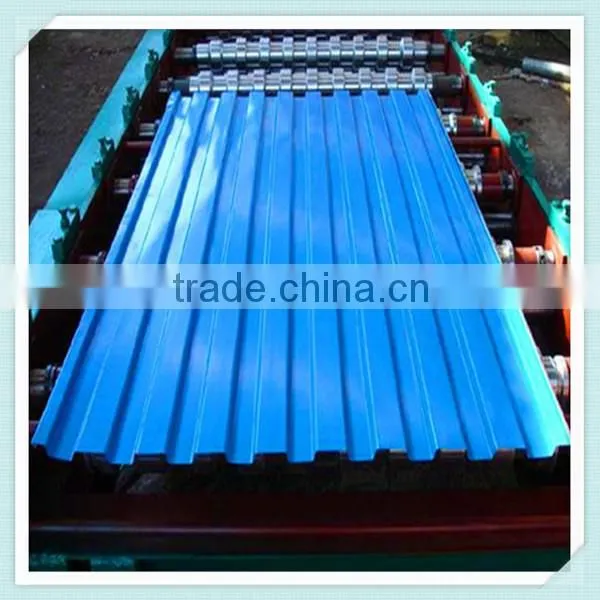

Tile drawing
Machine parameter
| Type | 800 Shutter door | |||||||
| Feeding width | 1000mm | |||||||
| Effective width | 800mm | |||||||
| Thicknes | 0.3-0.8mm | |||||||
| Size | 8800mm*1400mm*1300mm | |||||||
| Main Frame | 300H steel | |||||||
| Weight | about 4 tons | |||||||
| Diameter of shaft | Φ70,45#steel | |||||||
| Material of roller | 45#steel | |||||||
| Main motor power | 5.5 kw | |||||||
| Number of rollers | 18stand rollers | |||||||
| Control system | PLC computer controller | |||||||
| Speed | 6-8m/min | |||||||
| Chain | 1 inch | |||||||

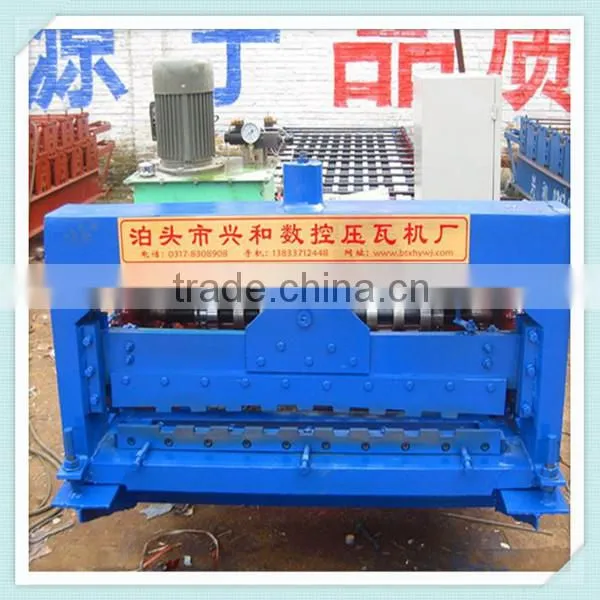

Machine pictures
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30 working days after receiving prepaid.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
A QU: Does one machine can only produce one style panel profile?
AS: Not exactly.For wider and double layer making machine.
It can produce more than 6 kinds of panels.
B QU: How many panels does common machine produce?
AS: Maybe more than two.It depends on feeding width.
C QU: I need the machine to roll form 914mm width sheet and 1219 mm width sheet , ok?
AS: Of course,OK.It is common feeding width. Many kinds of roll forming machine designs available.
D QU: Is your machine suitable for thickness of 0.25mm, 0.28mm and 0.30mm and 0.36mm of sheet thickness?
AS: Yes.Common thickness is 0.3-0.8mm.But it can roll 0.25mm also.
E QU:What is effective width and cover width?
AS:Effective width=Cover with<Feeding width
It means the max distance between two waves of finishing panel sheet.
F QU: What is the largest width of metal sheet I can feed through the machine?
AS: Max feeding width depend on panel profiles.It may be 1500mm or even large.
G QU: So,can you tailor make the machine? it should be common and the profile is a common one
AS:Yes,It is very common.I can give you quotation and advice now!!
H QU: With your curve crimping machine, how many types/angles can it bend? just one type?Or how many types of curve angles can 1 curve crimping machine make?
AS: It can bend many kinds of radians by adjust the last shaft by PLC control.
I QU: With your crimping machine, can we set the curve angle whenever we want during production?
AS: Yes.We can set it by PLC.It is the same with single-deck and double-deck roll forming machines.
J QU: Does your machine only run on 3 phase electricity?
AS: Of course not.It can be 2 phases as your requirement.
