Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Tile Making Machine > Metal Roofing Sheet Trapezoid Profile 910 Roll Forming Making Machine for Sale

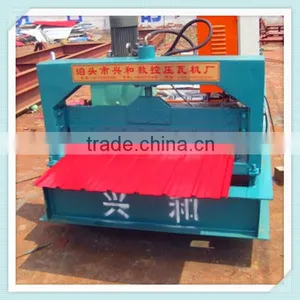

Metal Roofing Sheet Trapezoid Profile 910 Roll Forming Making Machine for Sale

Name: Metal Roofing Sheet Trapezoid Profile 910 Roll Forming Making Machine for Sale
Brand: XINGHE
SKU: 118282005

US$ 5,000 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Tile Forming Machine

Tile Type:

Colored Steel

Contact Supplier Request Quote Chat Now

Botou Xinghe Roll Forming Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XINGANG TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Tile Forming Machine

Tile Type Colored Steel

Use Roof

Production Capacity 6-8m/min

Place of Origin Hebei, China

Brand Name XINGHE

Model Number XH910

Power(W) 5.5kw

Voltage 380v 50-60hz

Dimension(L*W*H) 5800*1400*1300mm

Weight 3 Tons

Certification BV

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

910 Fully Automatic Control Cutting Color tile Steel Roof Roll Forming Machine

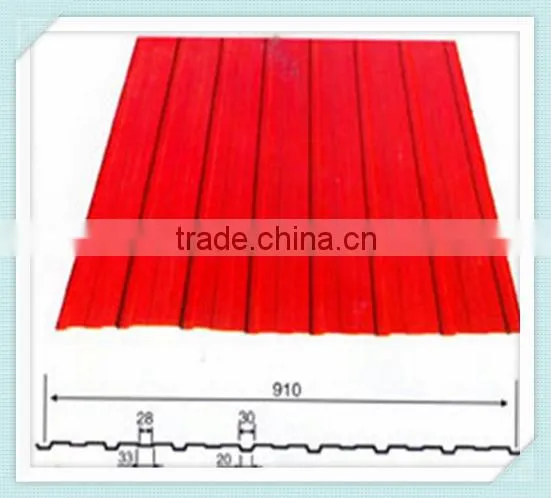

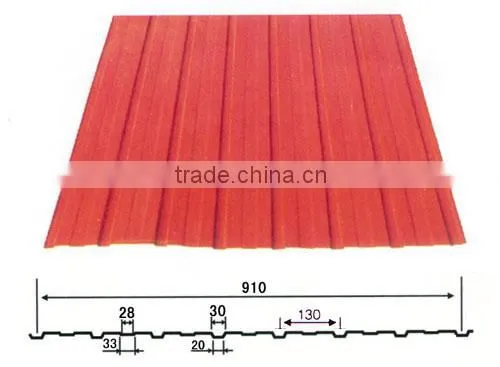

1.Forming Tile Show:

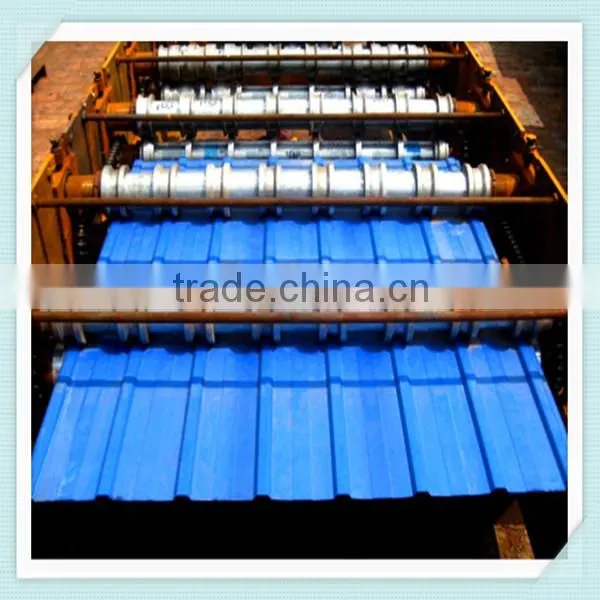

2.Producing Process Show:

3.Equipment Technical Pamameter:

Main Forming Machine Technical Pamameter:

machine size	5800mm1400mm1300mm
Feeding width	1000mm/1250mm
Equipment weight	3.5T
Material of shaft	45#steel adjustable treatment
Out diameter of shaft	φ70mm
Material of roller	Cr12, quenched treatment HRC58-60°C
Number of forming rollers	12 standard rollers
Main frame	300 H steel
Thickness of medium plate	14mm
Transportation system	Chain transportation
Thickness of chain	0.6 inch
Main motor power	3 KW
Bearing	6213
Forming speed	8-12m/min
Rolling thickness	0.3-0.8mm

Ps:Parameters above is the standard configuration.Parameters can be designed as per your special requests.

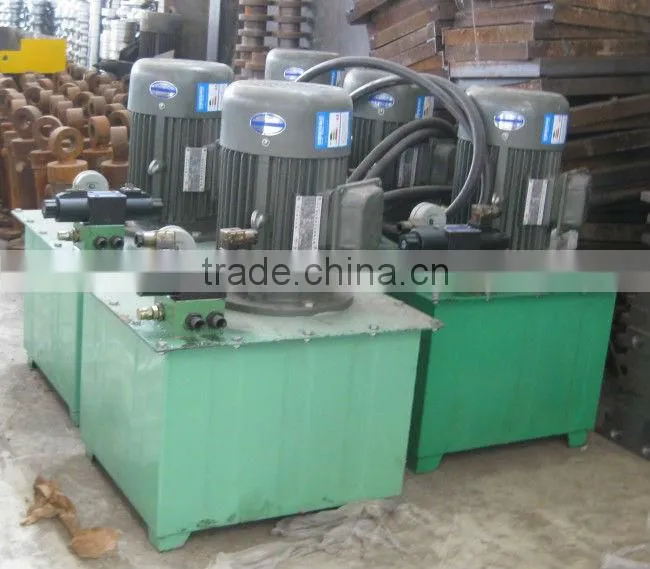

Hydraulic Shearing System:

Material of blade

Cr12,heat treatment 60-62°C

Shearing system

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.

The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.

Power of the oil pump: 4kw

Hydraulic oil :40#

Electrical System:

Screen display

5.7 inches touch screen

Main computer control cabinet

It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

Processing precision : within 1.00mm

It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.

Transducer brand is TaiWan”taida”

The seller should provide Chinese and English language screen.

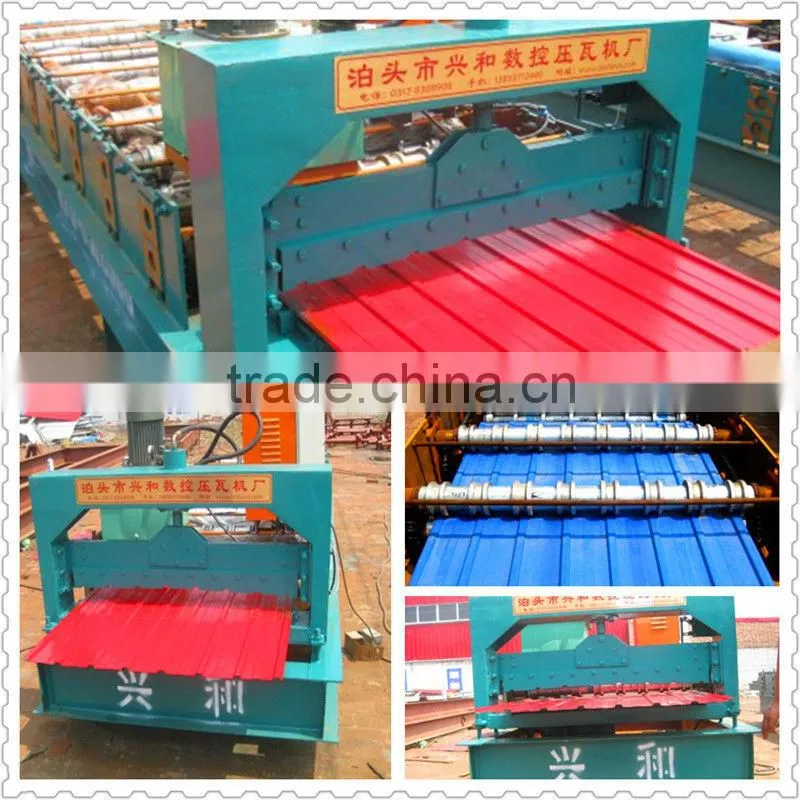

4.Equipment Show:

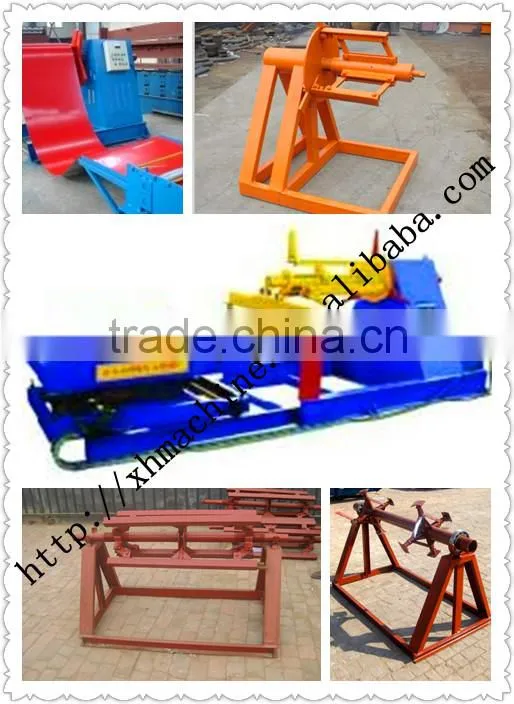

Optional System:

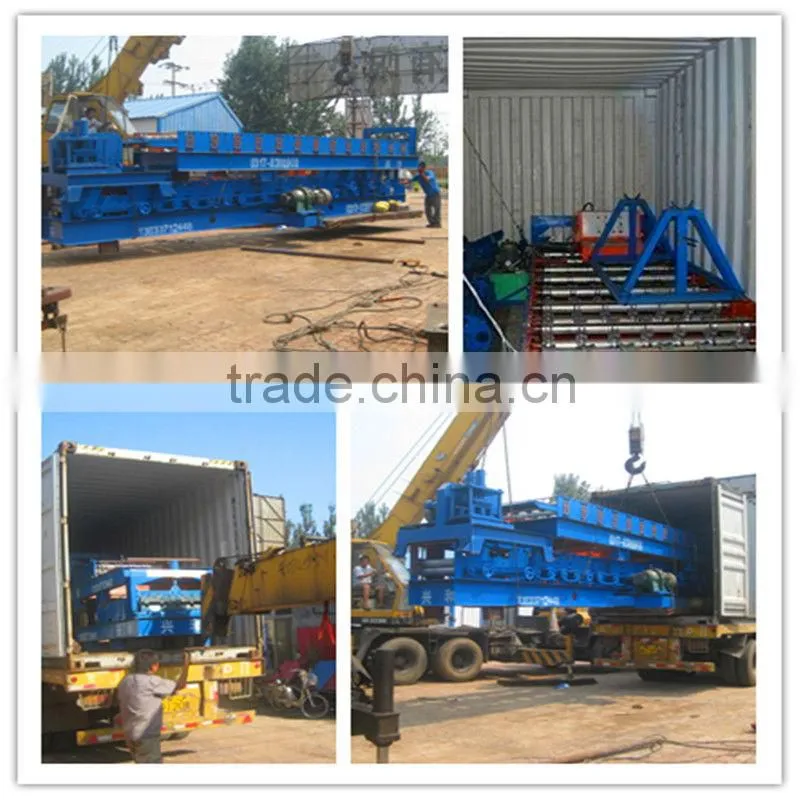

5.Equipment Loading Show:

6.Customers to Visit:

Ps:our products have been exported to more than 20 countries and regions over the world, and maintained good cooperative relations with customers .

We do firmly believe in technological innovation and making every detail of the product perfect is our ambition ever.

7.About Us:

Botou Xinghe Roll Forming Machinery Co.,Ltd. is located in botou - the home of roll forming machine . With 8 years of production experience ,we can offer you good quality machine at favourable price .

8.Service:

1) Pre-sale service:

Freely provide project designing, process designing, choosing suitable equipment for you.

2) Medium-sales service:

Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

3) After-sales service:

We sent engineer to the scene to guide installation, debugging and training operators.
