Main Specification | ||
Glazed steel tiles roll forming machine | ||
1 |
Main frame |
300mm H-sections |
2 |
Side board thickness |
14mm |
3 |
Main motor power |
3kw |
4 |
Power supply |
380V 50-60Hz |
5 |
Shaft number |
11rows |
6 |
Shaft material |
Carbon steel 45# |
7 |
Shaft diameter |
75mm |
8 |
Rolling wheel material |
Carbon steel 45# with chrome plated |
9 |
Cutting method |
Hydraulic mould cutting |
10 |
Hydraulic pump motor power |
3kw |
11 |
Cutter material |
Cr12 |
12 |
Chain size |
33mm |
13 |
Control system |
PLC Delta inverter |
14 |
Production rate |
6-8m/min |
15 |
Feeding thickness |
0.3-0.8mm |
16 |
Feeding width |
1000mm/1250mm |
17 |

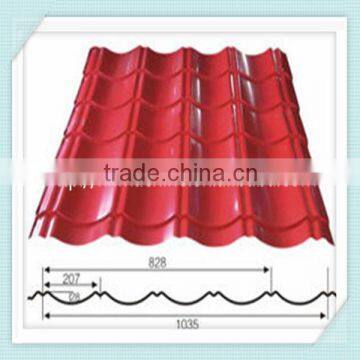

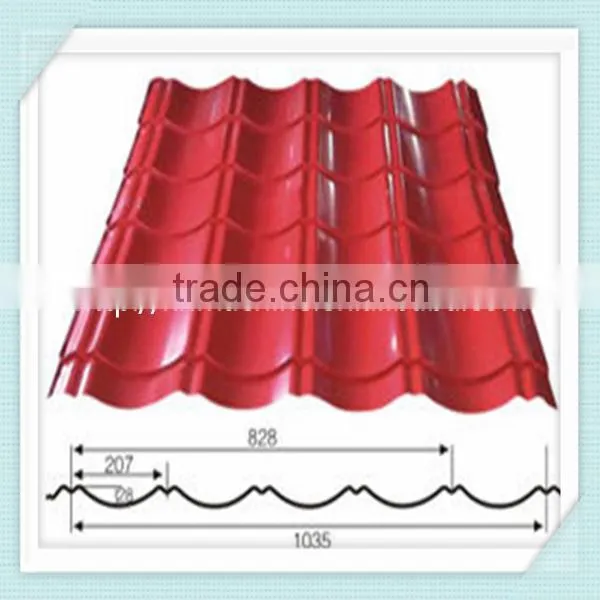

Finished specification |
As per your requests |
18 |
Overall size |
5800*1400*1300mm |
19 |
Total weight |
About 3.5 Tons |
|
*Parameters above is the standard configuration *Parameters can be designed as per your special requests. | ||

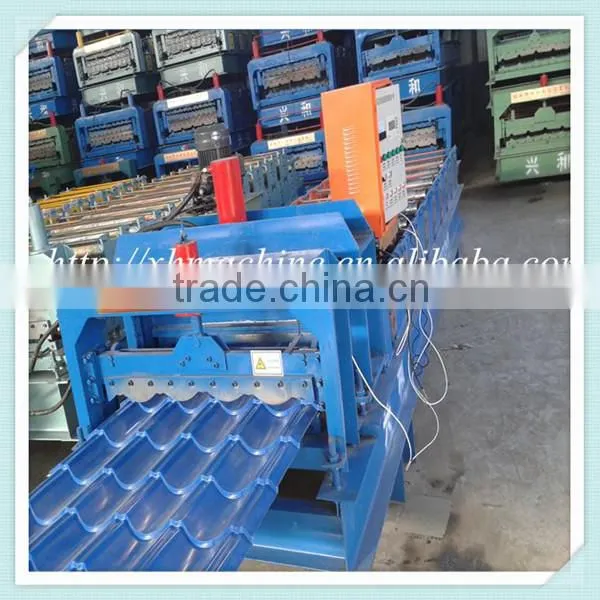

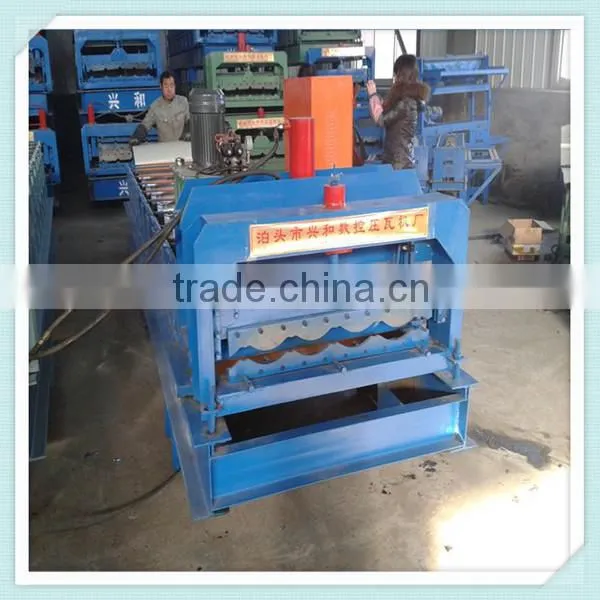

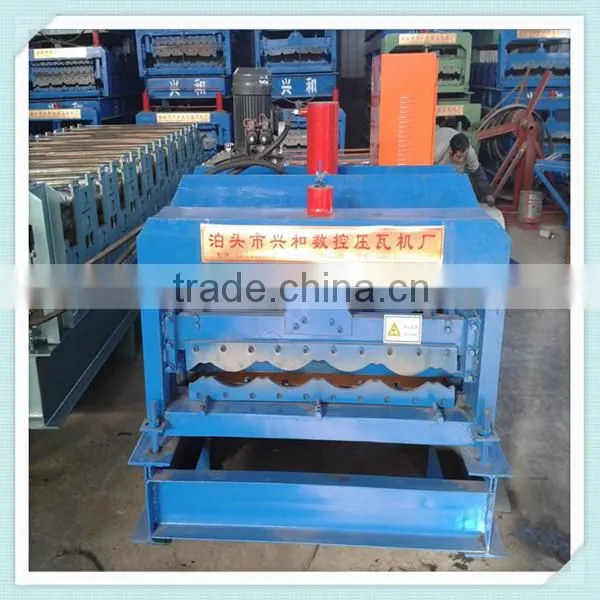

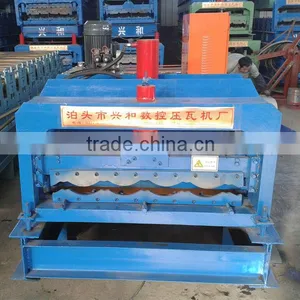

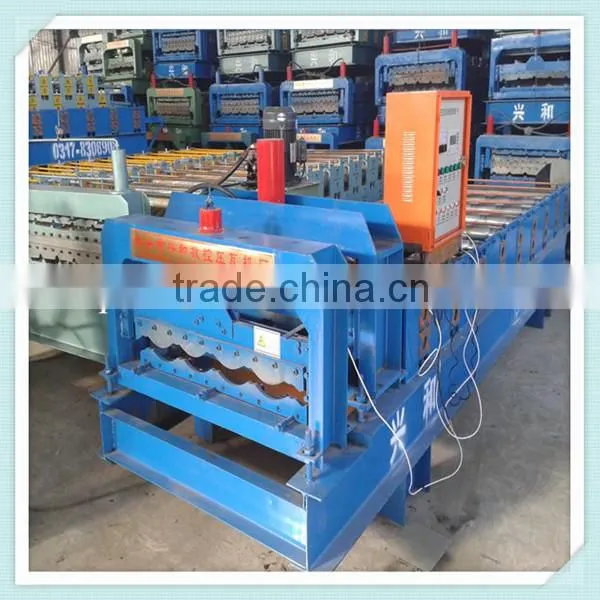

Product Photos |
Loading Container |
Package & Payment & Delivery | ||
1 |
Package details |
Nude fasten up in container or under your requests |
2 |
Payment terms |
30% TT for deposit balance against copy of B/L 100% L/C at sight |
3 |
Delivery time |
Within 30 days after receipt deposit |
4 |
Port of shipment |
XINGANG TIANJIN |
Our Service | |
1 |
One-year quality assurance for all the machine |
2 |
Technical staff available to service machine overseas |
3 |
Permanent free for technical support |
4 |
Design and produce according to your sample or drawing |
