1067 Colored Steel Sheet Metal Roofing Glazed Tile Roll Forming Machine

Name: 1067 Colored Steel Sheet Metal Roofing Glazed Tile Roll Forming Machine
Brand: XINGHE
SKU: 118281117

US$ 6,500 - 12,560 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Tile Forming Machine

Tile Type:

Steel

Botou Xinghe Roll Forming Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XINGANG TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Tile Forming Machine

Tile Type Steel

Use Roof

Production Capacity 8-12m/min

Place of Origin Hebei, China

Brand Name XINGHE

Model Number 1067

Power(W) 5.5KW

Voltage 380v,3phase,50hz

Dimension(L*W*H) 5800*1400*1300mm

Weight about 3.5tons

Certification BV

Warranty 12 months

After-sales Service Provided Engineers available to service machinery overseas

Main Specification
Glazed steel tiles roll forming machine
1	Main frame	300mm H-sections
2	Side board thickness	14mm
3	Main motor power	3kw
4	Power supply	380V 50-60Hz
5	Shaft number	11rows
6	Shaft material	Carbon steel 45#
7	Shaft diameter	75mm
8	Rolling wheel material	Carbon steel 45# with chrome plated
9	Cutting method	Hydraulic mould cutting
10	Hydraulic pump motor power	5.5kw
11	Cutter material	Cr12
12	Chain size	33mm
13	Control system	PLC Delta inverter
14	Production rate	6-8m/min
15	Feeding thickness	0.3-0.8mm
16	Feeding width	1000mm/1250mm
17	Finished specification	As per your requests
18	Overall size	*580014001300mm*
19	Total weight	About 3.5 Tons
Parameters above is the standard configuration Parameters can be designed as per your special requests.

Major Component & Production Process
Major Components	Manual uncoiler	1 set
	Main roll forming machine	1 set
	Hydraulic Cutting off system	1 set
	Control system(PLC)	1 set
	Output shelf	1 set
Production Process	Uncoiler → Roll forming → Cutting off → Output

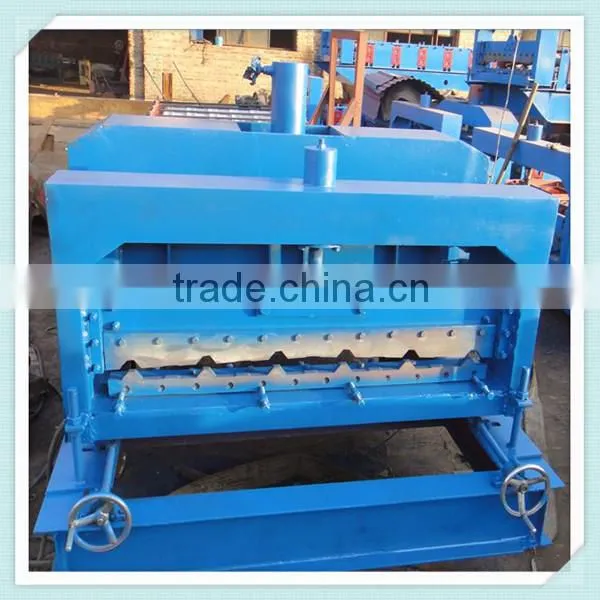

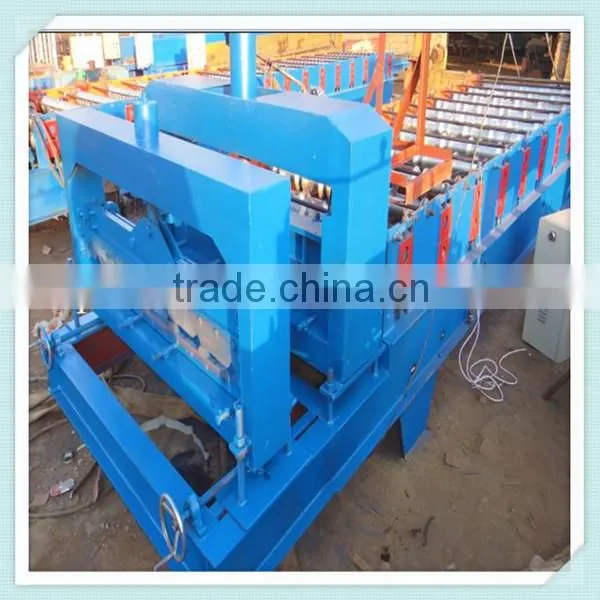

Product Photos

Package & Payment & Delivery
1	Package details	Nude fasten up in container or under your requests
2	Payment terms	30% TT for deposit balance against copy of B/L 100% L/C at sight
3	Delivery time	Within 30 days after receipt deposit
4	Port of shipment	XINGANG TIANJIN

Our Service
1	One-year quality assurance for all the machine
2	Technical staff available to service machine overseas
3	Permanent free for technical support
4	Design and produce according to your sample or drawing
