Specifications
pulse dust collector1.Automatic dust
2.explosion proof
3.low noise operation
4.high -precision filter
Porducts Name:
ZY-LGZ high efficient, automatic soot cleaning Percolate-type dust collector bag
Model Number :
ZY-LGZ
Advantage:
1.Automatic dust
2.wide percolated area
3.high efficient
4.receycled using
5.water proof
6.Oil proof7. antistatic(Especial for Al,Zn)
8.Anti-expolsion
9.Please contact us for more information
WIDELY USED:
ZY-LGZ high efficient, automatic soot cleaning Percolate-type dust collect,is widely used in polishing machine ,grinding machine ,belt sander , Mechanical processing , Casting, cement, rubber, food, pharmaceutical, ceramics and other industries
Sructural Principle:
Percolate-type dust collector has many advtanges,such as low resistance ,wide percolated area and small size.Set in a sole dust cleaning space with relevant tube connects dust collector .When connecting to a power source ,key on ,air with dust will into cupboard from covering ,through tubes and vent .Thick dust will be separated from air and dropped into drawer,as sdudden explosion of space and reduction of temperature.Other fine dust will be percolated and stayed on ektexine of core.by llision.hooking .and electrostatic interaction .Chlean air comes out through the vent.Air can be recycled and used dirctory in roon after cleaning treatment,without any energy lost during ventilation .We used an electromagnetic pulse device to clean dust.even when machine on.only power resources needs .

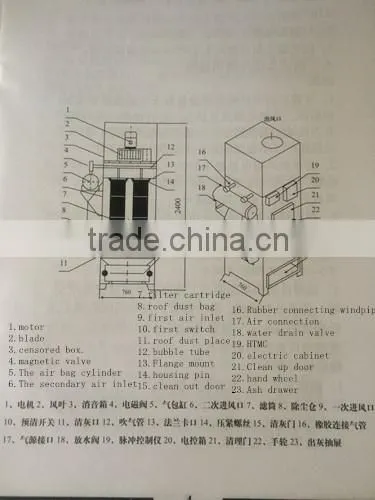

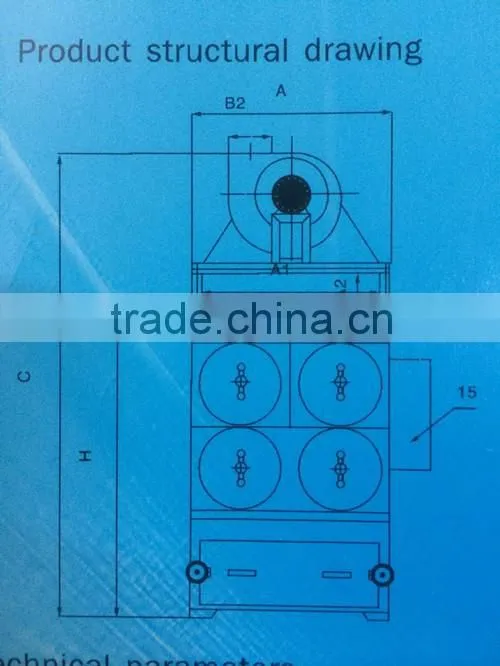

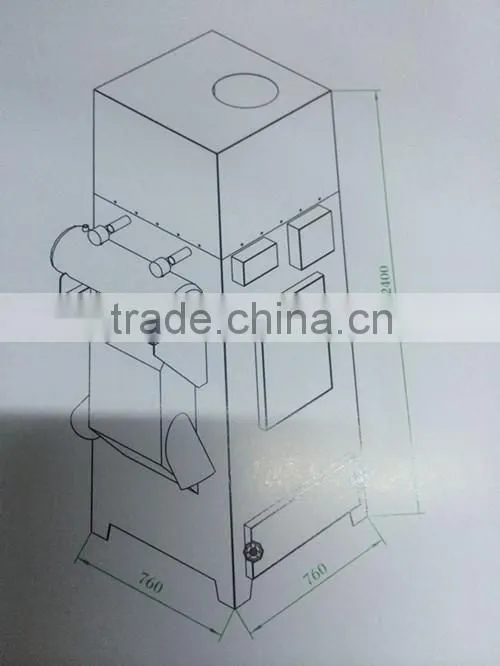

Product structural drawing :
Technical parameters :
| Model | Filter area |
Filter speed (m/min) |
Parameters (M3/h) |
Power (KW) |
resistance (Pa) |
| LT-1x2-20 | 20sqm | 0.8-1.2 | 960-1460 | 0.75x2 | <1000 |
| LT-1x2-28 | 27sqm | 0.8-1.2 | 1300-1980 | 1.5 | <1000 |
| LT-2x2-45 | 40sqm | 0.8-1.2 | 1920-2880 | 2.2 | <1000 |
| LT-2x2-55 | 54sqm | 0.8-1.2 | 2600-3880 | 3 | <1000 |
| LT-3x2-60 | 60sqm | 0.8-1.2 | 2880-4320 | 4 | <1000 |
| LT-3x2-80 | 80sqm | 0.8-1.2 | 3900-5820 | 5.5 | <1000 |
| Model |
Filter cartridge (qty) |
Filter cartridge (size) |
Power (KW) |
| LT-1x2-20 | 2 | 350x600 | 0.75x2 |
| LT-1x2-28 | 4 | 220x800 | 1.5 |
| LT-2x2-45 | 4 | 240x800 | 2.2 |
| LT-2x2-55 | 4 | 240x800 | 3 |
| LT-3x2-60 | 6 | 350x650 | 4 |
| LT-3x2-80 | 6 | 350x650 | 5.5 |

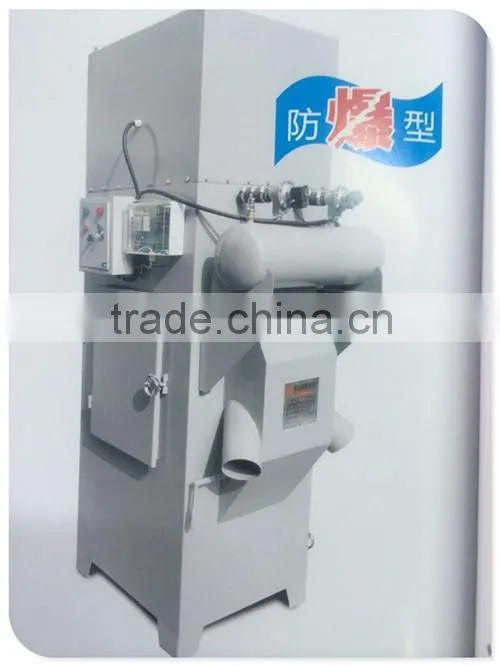

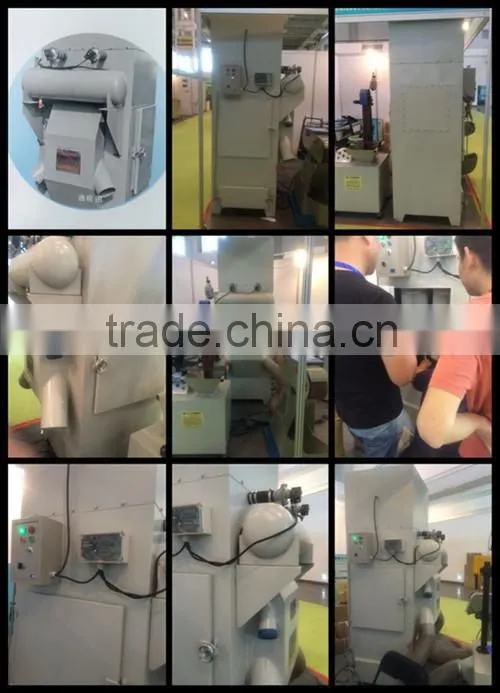

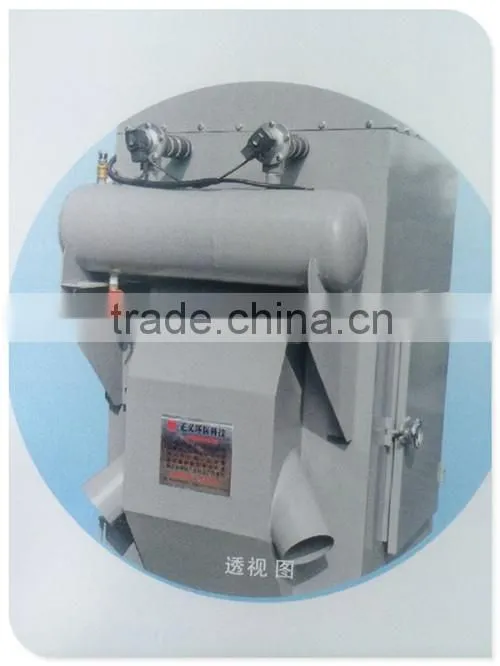

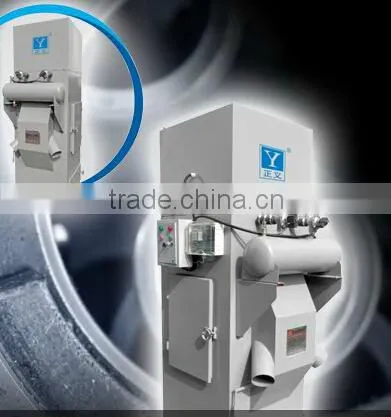

Products picture:
As usual we use original export packing cartons with wooden pallet outside ,also can accept clients special requirements .
1.24 hours online service
2. One step servive provide the products information price ,delivery time and so on .
3.High quality confirmed
4. Longtime warranty for our production .
5. Clients is our GOD
Customer abuse me thousands times, I treat clients like the first love!
NINGBO HAISHU RELI IMP &EXP COMPANY,Specialized in produce dust collector over 30 years , export to all over the world with best quality and one step service ,Varity of the styles and sizes fit for different countries clients requirements .Welcome to inquiry and visit our company ,we will provide best service and competitive price with good quality .
1.How can I contact you ?get prices?
Though Alibaba feedback
By email
By fax
Or calling
2.If you can provide detail E-catalogue or products detail information ?
Yes,it’s necessary ,clients ‘ any requirements ,if we can do ,we will try our best to support .
3. Small Clients or Small order can be accepted ?What's MOQ?
Of course,every client is our God,no matter big or small ,we will treat every clients as our good friends, provide one step service .
4. Could I get some samples for testing before placing order ?how soon we can get them ?
Of course ,you can!it’s our best honor can provide our samples to your esteemed company ! As usual we will send the samples within 5days .
5.What’s your payment terms ?
As usual we do TT prefer ,but we can discuss according to real situation .
