car audio,auido filter,audio capacitor

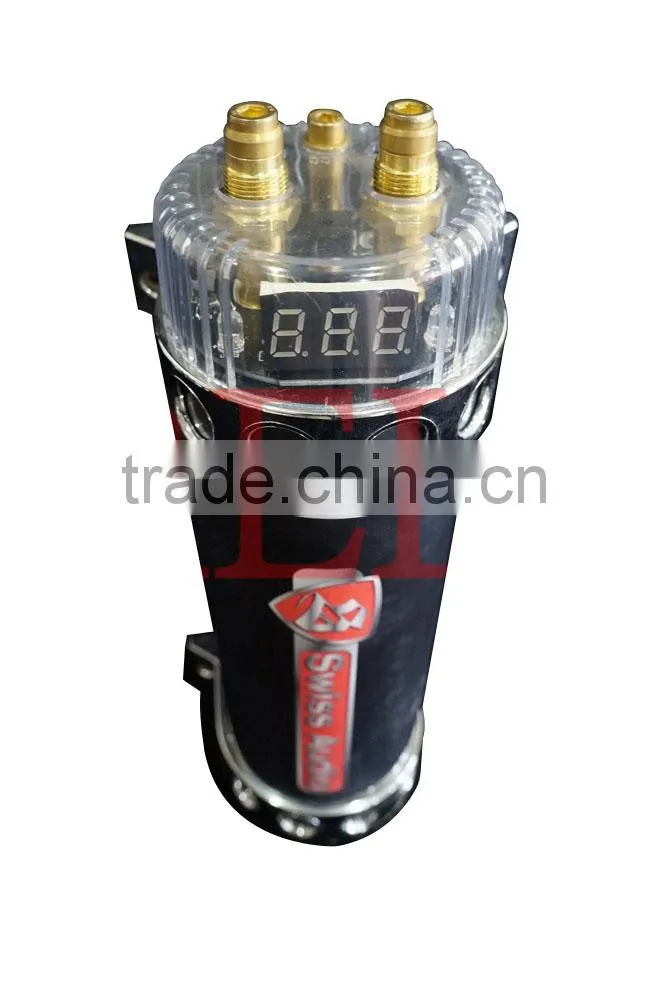

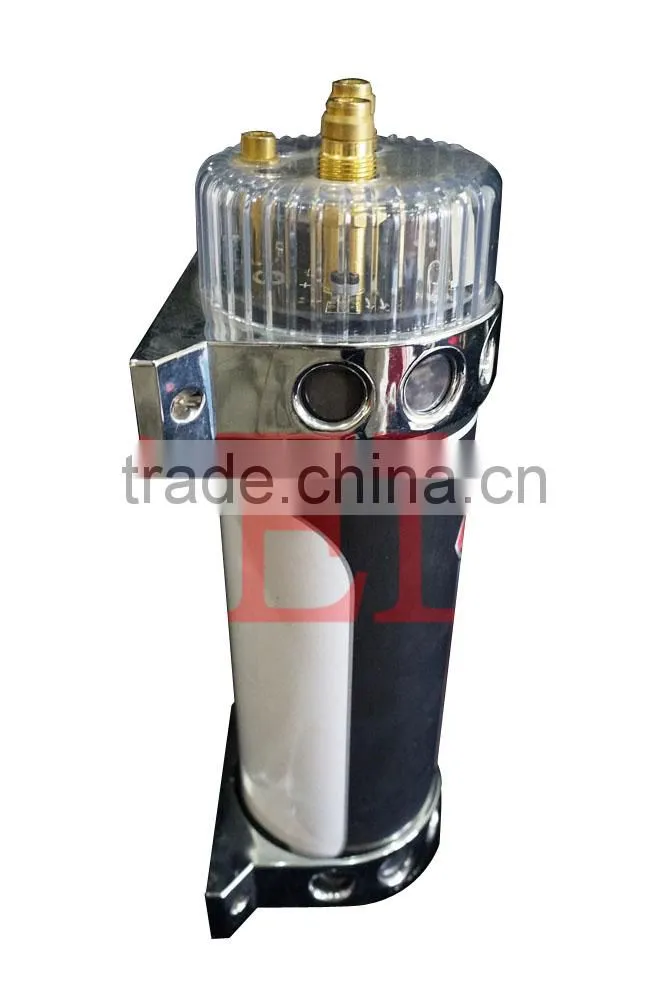

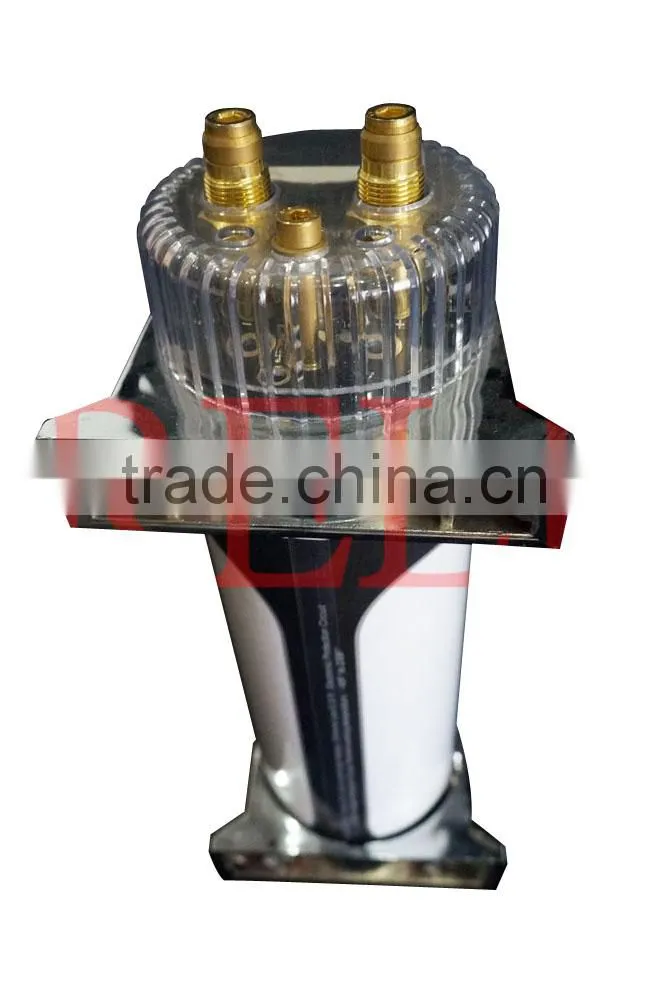

Name: Car power capacitor
MODEL: 02RAC-21
SIZE: Dimensions :76*153mm
(HEIGHT:153--244mm)
Capacitance: 0.1—0.5F
Rated working volt: DC 18V
WORK TEMPERATURE:-40°C~115 °C
Dielectric Material:Aluminum Foil and Paper
Scope of application :automotive
Appearance: Square.
Power performance: small power
Leader Type:No lead (screw terminal )
Capacitance tolerance ±10(%)
Specification:
Car audio power capacitorwith aluminum sleeve
Optional digit voltage display
Installation hardware included
Optional farad
Features
1.Car audio power capacitor
2.Extreme low equivalent series resistance
3.24volt surge with over-voltage protection circuit
4.Electronic polarity protection circuit
5.Mounting brackets and hardware included

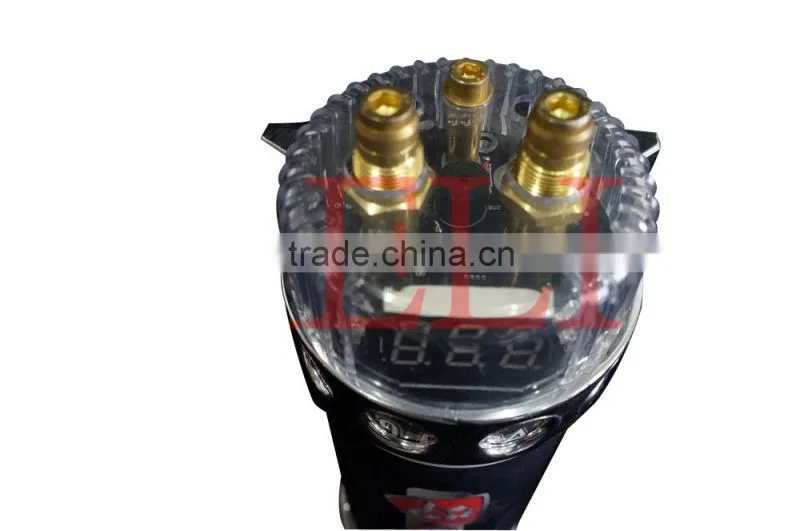

6.Optional digit voltage display :red /blue (generally the cost of the blue digit 7.display is higher than the red one )
8.Capacitor tolerance :+-10%
9.Options available :24k gold or hard nickel plated terminals ,colors of sleeve
Installation Instructions
1.In order to achieve the best effect,Car audio power capacitor installation location should be as far as possible close to the power amplifier,use shorter power connect line ,at the same time installation the car audio power capacitor in the place not easy to touch,To a certain extent, isolated the heat generated by the power amplifier
2.The power line should as short as possible ,The fuse do not install between the capacitance and power amplifier. But make sure the main supply battery cable using the appropriate fuse to protect the power supply circuit..
3. Car audio power capacitor anode line should be as short as possible, and directly connected to the car metal surface bare cable .
4. Capacitor of the power cord should be the same GA number as the power amplifier power cord.
5. Connect one end of the line of control to car audio automatic antenna connector.
| ITEM | CAPACITY | SIZE |
| 08RAC-15 VOLTAGE:18V |
0.1F | 76*153MM |
| 0.2F | 76*153MM | |
| 0.3F | 76*153MM | |
| 0.4F | 76*153MM | |
| 0.5F | 76*153MM | |
| 0.7F | 76*217MM | |
| 0.8F | 76*217MM | |
| 1F | 76*217MM | |
| 1.5F | 76*217MM | |
| 2F | 89*230MM | |
| 2.5F | 89*230MM | |
| 3F | 89*244MM | |
| 3.5F | 89*244MM | |
| 4F | 100*244MM | |
| 4.5F | 100*244MM | |
| Can produce according to customer's requirement,OEM is acceptable. | ||
NINGBO HAISHU RELI IMP &EXP COMPANY ,Our factory also manufacturing and exporting the capacitors and accessories for ten years. has lots of business partners all over the world.Our products have competitive price,high quality and best service.We alreadyhave been approved by RHOS VDE CE SGS CQC UL,and we also accept OEM/ODM orders and special designs to serve the customers better.
Aluminium Capacitor Case/Metallic Capacitor Cover/Plastic Capacitor Can/Plastic Capacitor Cover/Aluminum Electrolytic Capacitor Cover/Other Capacitor Parts,etc
1.How can I contact you ?get prices?
Though Alibaba feedback
By email
By fax
Or calling
2.If you can provide detail E-catalogue or products detail information ?
Yes,it’s necessary ,clients ‘ any requirements ,if we can do ,we will try our best to support .
3. Small Clients or Small order can be accepted ?What's MOQ?
Of course,every client is our God,no matter big or small ,we will treat every clients as our good friends, provide one step service .
4. Could I get some samples for testing before placing order ?how soon we can get them ?
Of course ,you can!it’s our best honor can provide our samples to your esteemed company ! As usual we will send the samples within 5days .
5.What’s your payment terms ?
We support various payment methods; for example, T/T in advance, Western Union, Money Gram, etc. If you are not clear with it, our sales consultant can give you professional suggestions. Please call for more information!
6,What's your shipping?
We offer sea shipping for capacitor and capacitor parts, and standard shipping and DHL for most small-size and weight (non-liquid) orders.
