Metal Color Steel Roof Ridge Cap Roll Forming Machine
Specifications
1.Steady performance
2.Longtime usage
3.Easy operation and maintaince

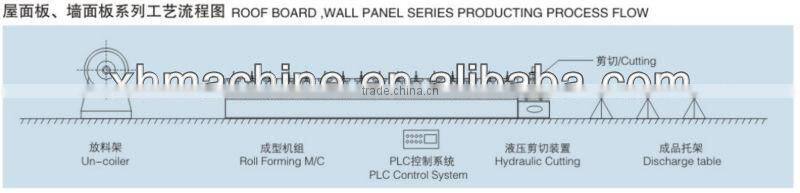

Working process

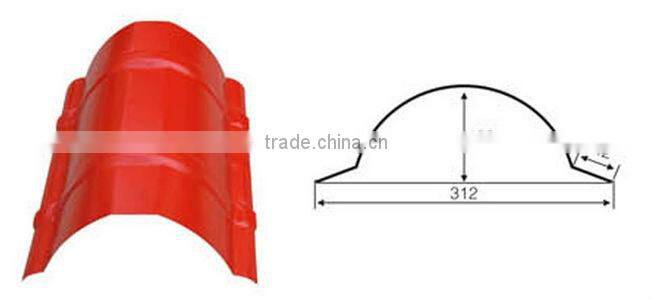

Tile drawing
Machine parameter
| Material Width | 440mm | |||
| Effctive width | 312mm | |||
| Thicknes | 0.3-0.6mm | |||
| Size | 6500mm*500mm*1200mm | |||
| Weight | about 3.5 tons | |||
| Material of shaft | 45#steel | |||
| Diameter of shaft | Φ70 | |||
| Material of roller | 45#steel,Chrome | |||
| Main motor power | 3.0kw | |||
| Hydraulic station | 3.0kw | |||
| Control system | PLC computer controller | |||
| Speed | 6-10m/min | |||
| Chain | 0.6 inch | |||

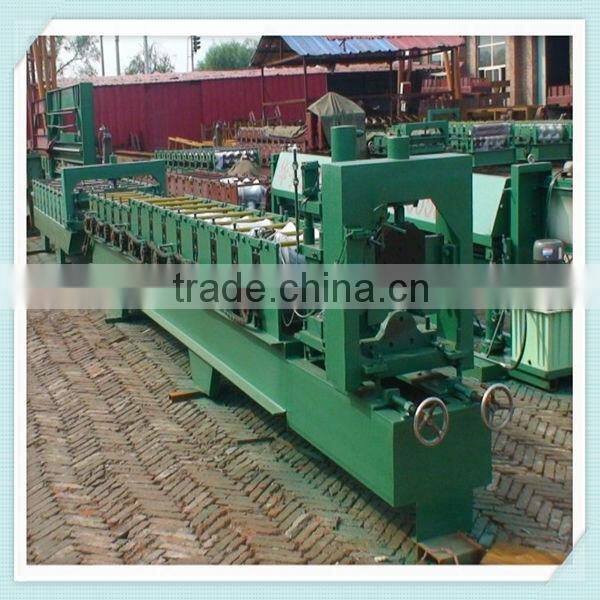

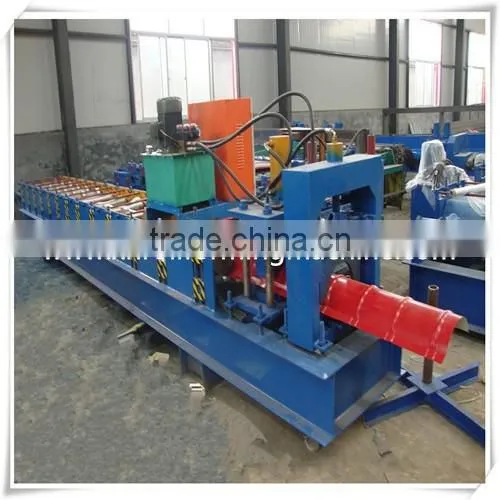

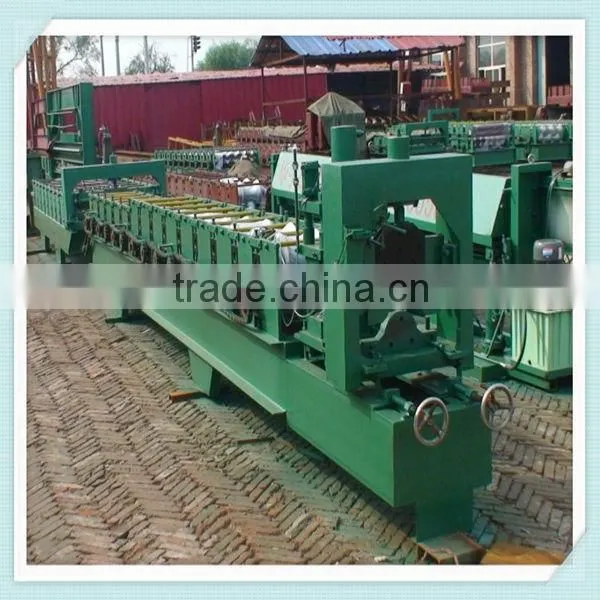

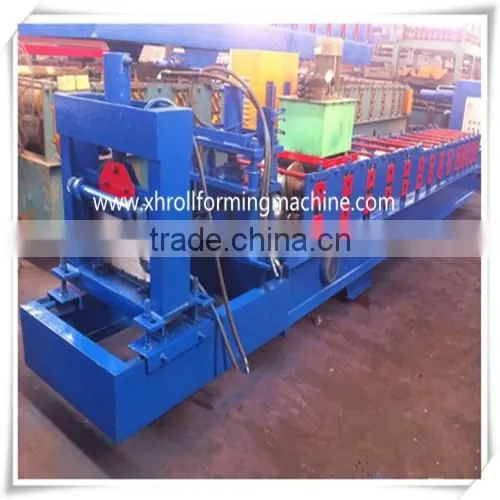

Machine show
At present, our product have been sold to more than 30 cities home and abroad, achieving
good reputation.Backed with the powerful technology and perfect market service system,
and globalization, we have expanded our international market step by step. Opportunities
accompanying with challenges, but we are always full of confidence! All of our Xinghe staff
are waiting for you heart and soul.
1.)we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country
2.)You can send your men to our factory. we will teach them how to operate the machine without training charges
3. )Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
4.)Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support !
A QU: Does one machine can only produce one style panel profile?
AS: Not exactly.For wider and double layer making machine.
It can produce more than 6 kinds of panels.
B QU: How many panels does common machine produce?
AS: Maybe more than two.It depends on feeding width.
C QU: I need the machine to roll form 914mm width sheet and 1219 mm width sheet , ok?
AS: Of course,OK.It is common feeding width. Many kinds of roll forming machine designs available.
D QU: Is your machine suitable for thickness of 0.25mm, 0.28mm and 0.30mm and 0.36mm of sheet thickness?
AS: Yes.Common thickness is 0.3-0.8mm.But it can roll 0.25mm also.
E QU:What is effective width and cover width?
AS:Effective width=Cover with<Feeding width
It means the max distance between two waves of finishing panel sheet.
F QU: What is the largest width of metal sheet I can feed through the machine?
AS: Max feeding width depend on panel profiles.It may be 1500mm or even large.
G QU: So,can you tailor make the machine? it should be common and the profile is a common one
AS:Yes,It is very common.I can give you quotation and advice now!!
H QU: With your curve crimping machine, how many types/angles can it bend? just one type?Or how many types of curve angles can 1 curve crimping machine make?
AS: It can bend many kinds of radians by adjust the last shaft by PLC control.
I QU: With your crimping machine, can we set the curve angle whenever we want during production?
AS: Yes.We can set it by PLC.It is the same with single-deck and double-deck roll forming machines.
J QU: Does your machine only run on 3 phase electricity?
AS: Of course not.It can be 2 phases as your requirement.
