Specifications
Use this machine to add the density of the powder ,thenyoucan reducethe pressure of the last work stage ,Improve product quality1,Descriptions

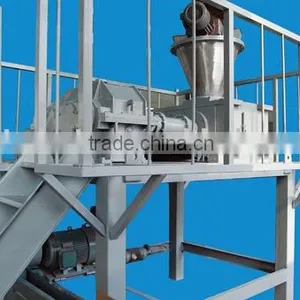

This series of dry roll compacting granulator is first developed by our company,using an advanced dry granulating technique. Through the physical process of com pressing, crushing and screening, powder materials of low density and poor fluidity will be made into granules of high density and good fluidity, meeting different stand ards without dust pollution. This set of equipment has filled in the gaps of technology in our country. Now, according to different requirements and different materials,we can supply complete sets of equipment , single machine , or fittings of different specifications . Besides , we offer varieties of services such as granulating test for different materials, special designs, installation assistance, debug direction and so on. We can also granulate the materials for customers.
3,Principle
Dry powder materials will be spirally pressed from the top into the gaps between the double rollers after gas removing . Then under the action of the huge extruding power from double rollers , the materials will be compressed into slices . Then after the processes of crushing , reorganizing and screening ,slice materials will be turned into granules or pellets. Different shapes of materials such as slices,strips, oblate balls etc. can be achieved by changing the groove forms of the roller surface. The extruding power can be adjusted by hydraulic cylinder according to different requirements.
5,Applications
A. Petrochemical industry B. Fine chemical industry C. Pharmaceutical industry D. Foodstuff industry
E. Biochemical industry F. Agricultural chemical industry G. Fertilizer industry H. Mining chemical industry
I. Iron and steel industry J. Coal industry
6,Typical materials
Fill grain for capsule , pigment , detergent , catalyst ,cryolite ,calcium oxide/CaO ,bentonite,vitamin ,amino acid ,zinc oxide/ZnO ,Calcium Hypochlorite ,PPO/polyphenylene oxide,ferric oxalate ,carbon-white,Potassium sulphate /K2SO4 ,calcium sulphate/CaSO4 ,potassium chloride/KCl ,sodium bicarbonate/NaHCO3 ,carboxymethylcellulose/CMC ,Spodumene, strontium carbonate , chemical fertilizer , silica aerogel , inorganic salt grain , calcium hypochlorite , pesticides , cyanuric acid , sodium dichloro-isocyanvrate , trichloroisocyanuric acid , oxide , zinc oxide , lead(ll) oxide , potassium uitrate , potassium sultate , potassium carbonate , sodium hexafluoroaluminate , C9H10N5O2C1 , calcium biphosphate , foodstuff , fertilizer , feed , additives for plastics , chemical medicine , cosmetic ,synthetic detergent , titanium dioxide , coal powder , urea formaldehyde moulding powder , melamine moulding powder , white carbon black , sodium tripolyhosphate , decanoic acid , dolomite fines ,magnesium carbonate , antimony dioxide , barium carbonate and many other chemical and pharmaceutical materials.
Powder materials which need to be recovered: A. Dust in iron casting plants B. Lead dust C. Zinc dust D. Aluminum dust E. Filtered dust F. Dust caused by grinding.
8,Current Users
Nanning Chemical Group Co., Ltd
Yancheng Bright Fine Chemicals Co., Ltd
Hebei Jiheng Group Co., Ltd
Zhengjiang Tianhe Biotechnology Co., Ltd
Luxi Chemical Group Liaocheng Lanwei Chemical Co., Ltd
Qingdao Zhitong Chemical Co., Ltd
Anhui Xiaoxian Science and Technology Committee Supplies Chemical Factory
Qingdao Chemical Co.,Ltd
Jiangsu Northern Chlorine Alkaline Chemical Co., Ltd
Shandong Dongying Leijie Fine Chemical Co., Ltd
Shanxi Yongji Chemical Factory
Shanghai Pharmaceutical Industry Co., Ltd
Nanjing Jinning Sanhuan Hi-tech. Magnetic Industrial Co., Ltd
East Hope Group Qiangda Concentrated Feedstuff Co., Ltd
Shanghai Zineng Hi-tech Co., Ltd
Taiwan Mulong Industry Co., Ltd
Wuxi Meihua Chemicals Co., Ltd
Sichuan Zigong Gujinshu New Material Co., Ltd
Hengshui Jiewei Chemistry Co., ltd
Shandong Tengzhou Yinfeng Chemical Co., Ltd
Longkou Hairuida Chemical Co., Ltd
Xuzhou Keweisi Disinfector Co., Ltd
Liaocheng Shiyu Chemical Co., Ltd
Shanghai Yulong Fine Chemical Co.,Ltd
Dingzhou Radi Water Environment Biotechenology Co.,Ltd
Shanghai Jinghua Chemical Factory
Handan Fuyang Chemical Co., Ltd
Handan Ruibang Fine Chemical Co., Ltd
Liaocheng Guangpu Petrochemical Industry Co., Ltd
Taian huamao Chemical Co., Ltd
Anhui Yellow Mountain Chemical Co., Ltd
Yangzhou Sundary Chemical Co., Ltd
SDIC Xinjiang Lobupo Potash Co., Ltd
Jingning Electromagnetism Electron Equipment Co., Ltd
Shijiazhuang Jiupai Pharmaceutical Industry Co., Ltd
Changzhou Jintaiyang Animal Health Product Co., Ltd
Changzhou Tongyu Biotechnology Co., Ltd
Nanning Boruida Environmental Technology Co., Ltd
Qingdao Bonded Area Hualu International Trade Co., Ltd
Shanghai Greenman Eco Science and technology Co., Ltd
Huaxiang Disinfector Co., Ltd
Shijiazhuang Kaixiang Trade and Industry Co., Ltd
Yangzhou Sandeli Chemical Co., Ltd
Shuangjian (Taizhou)Chemical Co., Ltd
Guizhou Huitong New Material Development Co., Ltd
Puyang Keliwei Chemical Co., Ltd
Guangxi Redsun Chemical Co., Ltd
Liaocheng Huaao Chemical Co., Ltd
Handan Steel Group Xinxin Fine Chemical Co., Ltd
Liaocheng Luxi Chemical Group Thermoelectricity Co., Ltd
Henan Yongcheng Jiebao Chemical Co., Ltd
Shanxi Shundu Group
Yongtai Pasturage and Aquaculture Pharmaceutical Co., Ltd
Hebei Jiupai Industry Group
Taizhou Hengxiang Wireless Equipment Co., Ltd
Changzhou Lianfeng Chemical Co., Ltd
Sichuan Pengzhou Oil Accessory Ingredient Co., Ltd
Xingtai Mine (Group) Co., Ltd
Hubei Jinzhou Daya Chemical Co., Ltd
Yancheng Anshun Chemical Co., Ltd
Dalian Luyuan Pharmaceutical Industry Co., Ltd
Anhui Shenjian New Material Co., Ltd
Zhejiang Winchoice Imp/Exp Co., Ltd
Xian Hanbao Biotechnology Development Co., Ltd
Dongguan Sawtry Technology Co., Ltd
Jinzhou Shenqi Magnetic Industrial Co., Ltd
Yantai Humon Chemical Co., Ltd
Huaian Blueshy Chemical Co., Ltd
Changzhou Jiafa Granulating Drying Equipment Co.,Ltd
Anhui Redstar Pharmaceutical Co., Ltd
Jiangmen Powder and Metallurgy Co., Ltd
Changyi Donghai Chemical Co., Ltd
Zhengjiang Copious Chemical Co., Ltd
Winner Inc India
China Bluestar Group
Foshan Jinkuizi Fertilizer Industry
Tongliao Clubs Biotechnology Co., Ltd
.........................
