Specifications
XH1075-1125 new type double layer roll forming machine
size:6000*1500*1500mm
weight:4t
main power:3kw
XH1075-1125 Metal Roofing Sheet Double Layer Roll Forming Machine

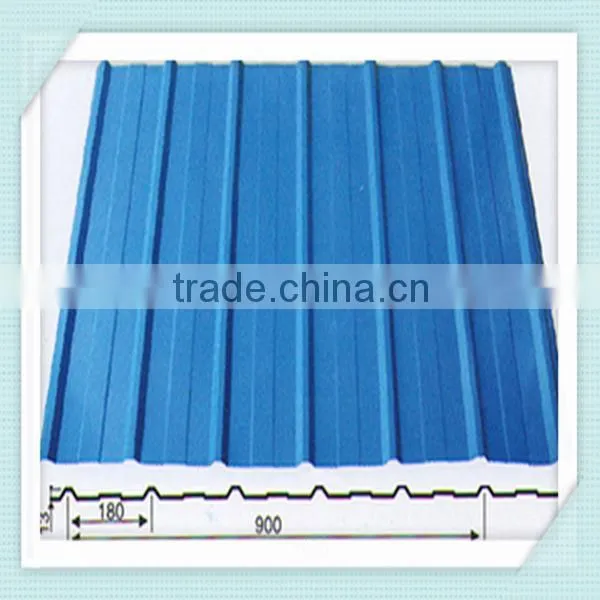

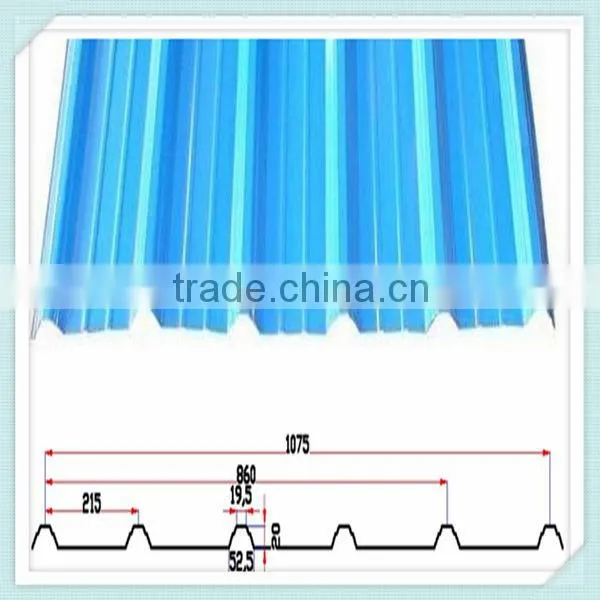

1.Forming Tile Show: |
2.Producing Process Show: |
Decoiling—active feeding (put the coil strip into the first feeding roller)—leveling —roll forming —computer control system—hydraulic cutting—product to stand
3.Equipment Technical Pamameter: |
Main forming machine
machine size |
6000mm*1500mm*1500mm |
Feeding width |
1000/1250mm |
Equipment weight |
4T |
Material of shaft |
45#steel adjustable treatment |
Out diameter of shaft |
φ70mm |
Material of roller |
Cr12, quenched treatment HRC58-60°C |
Number of forming rollers |
Up for 1075: 11 rows bottom for 1125:10 rows |
Main frame |
300 H steel |
Thickness of medium plate |
16mm |
Transportation system |
Chain transportation |
Thickness of chain |
1 inch |
Main motor power |
3 KW |
Bearing |
6213 |
Gear box |
150*150 |
Forming speed |
8000-10000mm/min |
Rolling thickness |
0.25-0.8mm |
Hydraulic shearing
Material of blade |
Cr12,heat treatment 60-62°C |
Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 4kw Hydraulic oil :40# |
Electrical system
Screen display |
5.7 inches touch screen |
Main computer control cabinet |
It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. Processing precision : within 1.00mm It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Transducer brand is EURA The seller should provide Chinese and English language screen. |

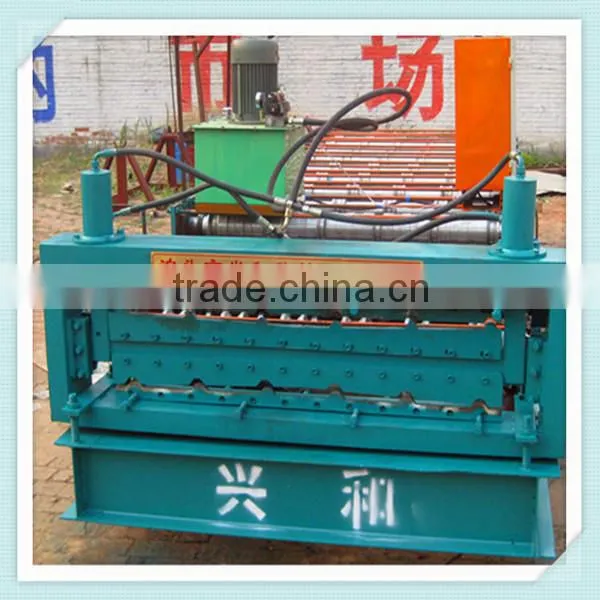

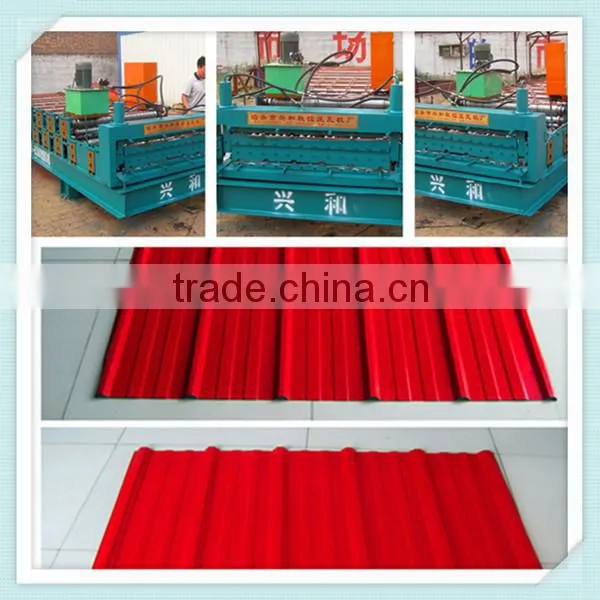

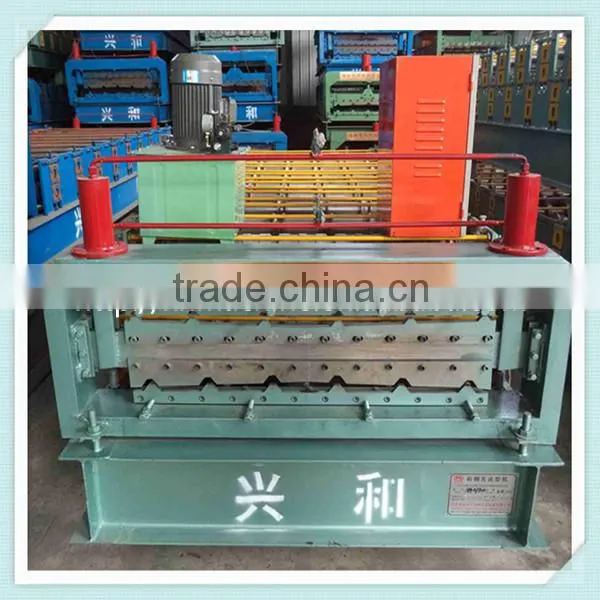

4.Equipment Show: |
Optional System:
Our factory is specialized in manufacturing color steel forming machinery,C&Z purlin machine,archaic glazed tile forming machine,steel structural floor panel roll forming machine,sandwich panel roll forming machine,highway guardrail forming machine and other cold roll forming machines,crimp machine,curved machine.
1.)we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country
2.)You can send your men to our factory. we will teach them how to operate the machine without training charges
3. )Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
4.)Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support !
