Help CenterTrade Assurance 780 Corrugated Roof Sheet Roll Forming Machinery
Related Products
-
Trade Assurance 780 Roofing Sheet Roll Forming MachineUS$ 8,000 - 13,500MOQ: 1 Set -
Trade Assurance Roof Tile Sheet Rolling Forming MachineUS$ 8,000 - 13,500MOQ: 1 Set
-
Trade Assurance IBR Galvanized Steel Roofing Sheet Making MachineUS$ 8,000 - 13,500MOQ: 1 Set
-
Trade Assurance Hot Sale 780 Mm Metal Roof Corrugated Roll Forming MachineUS$ 8,000 - 13,500MOQ: 1 Set
-
780 Color Steel Roof Tile and Wall Panel Roll Forming MachineUS$ 8,000 - 13,500MOQ: 1 Set

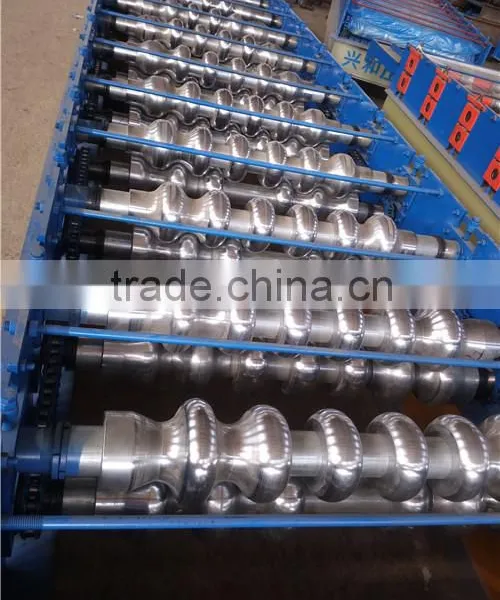

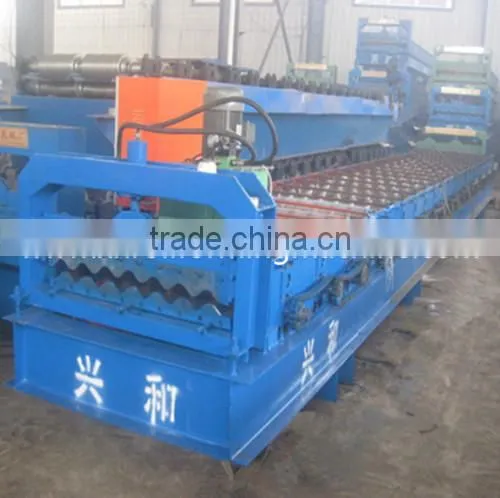

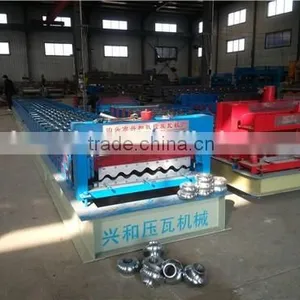

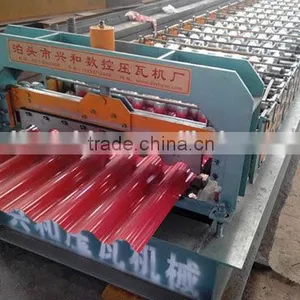

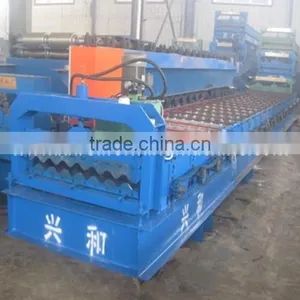

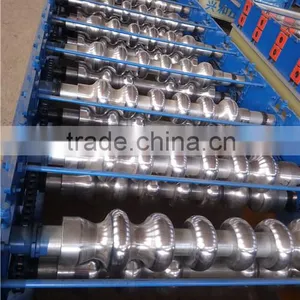

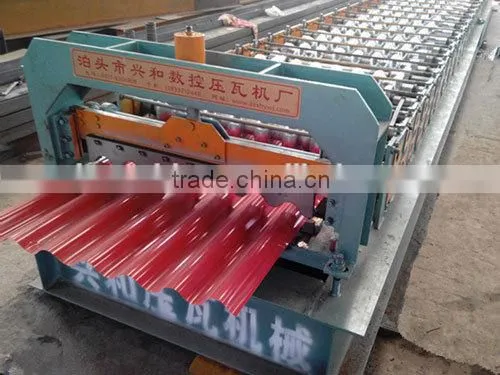

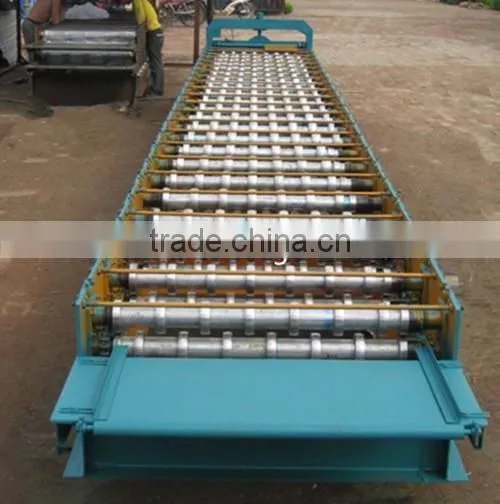

1.Main Roof Forming Machine Pictures
Now our roll forming machine have been exported to many countries,the most important is that all you need can be customized.
2.Quick Look:
1 |
Direct Roof Forming Machine Factory/Manufactuer |
2 |
CE authentication book |
3 |
PLC Automatic Production Line |
4 |
Many profile design available,Design machine according to client’s request |
5 |
High Precision and Production Speed |
6 |
In stock |
3.Work flow:
manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table
4.Technical Parament
No. |
Item Name |
Specification |
1 |
Width of Feeding Material |
1000mm or As the client’s request |
2 |
Thickness of Feeding Material |
0.3-0.8mm |
3 |
Suitable to process |
Color Steel Plate |
4 |
Forming Steps(Roller Stations) |
9-18 stations according to tile drawing |
5 |
Diameter of Shaft |
Φ70-100mm |
6 |
Production Speed |
8-12m/min Electric Motor Drive |
|
|
10-15m/min Hydraulic Motor Drive |
7 |
Material of Rollers |
High Grade 45# steel forged |
8 |
Machine Length |
5.6-15 meters |
9 |
Machine Weight |
About 2.5-10 tons |
10 |
Voltage |
380V,50Hz,3Phase or as client’s request |
11 |
Control System |
PLC Control |
12 |
Motor |
3-15kw |
13 |
Driving Way |
Chain Transmission |
14 |
Chain Size |
1-2 inch |
15 |
Cutting System |
Hydraulic Mold Cutting |
16 |
Material of Cutting Blade |
Cr12 Mould Steel with Quenched treatment |
4.One Forming Machine Line
1 |
5 Ton Manual Uncoiler |
1 Set |
2 |
Collection Tables |
3 Sets |
3 |
Quick-Wear Parts |
1 Set |
5.Payment
30% TT in advance and balance before checking and loading machine |
30%TT in advance and balance after copy of bill of loading |
30%TT in advance and balance at sight irrepealable bill of loading |
6.Packing and Shipping
We can guarantee that roll forming machine will be delivered to you intactly.
7.Company Information
8.Our Service
1. OEM service.
2. Any small problems will be solved at the most prompt time.
3. We always offer relateive technical support,quick response,all your inquire will replied within 24 hours.
6.Trade Assurance: 100% product quality protection ;100% on time shipment protection;100% payment protection; if the product quality does not meet the standards set in your contract, will refund the covered amount of your payment
9.FAQ
1. Q: What is the MOQ?
A: 1 set.
2. Q: What is the Delivery time?
A: Within 25 workdays.
3. Q: What is the Payment terms you can accept?
A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.
4. Q: What is the Warranty?
A: Within 12 months,all of the technical personnel are ready to serve you at any time.
