Home > Products > C&Z&U Purlin Roll Forming Machinery > Trade Assurance 2016 Popular Style Xinghe C Purlin Roll Forming Machine And Trapezoid Steel Tile Manufacture Forming Machine
Trade Assurance 2016 Popular Style Xinghe C Purlin Roll Forming Machine And Trapezoid Steel Tile Manufacture Forming Machine
- 20 Set / Sets per Month
- XINGANG TIANJIN
- T/T
You May Like
-
Trade Assurance C profile purlin roll forming machine,z purlin processing line,z shaped steel machine
-
975 Corrugated Iron Roofing Sheet Single Layer Roll Forming Making Machine
-
975 corrugated glazed steel roofing tile making machine
-
1064 corrugated steel sheet tile making machine
-
Trade Assurance Hot Sale 76-18-1064 Mm Metal Roof Corrugated Roll Forming Machine
-
780 corrugated steel plate roll forming machine
Product Details
| Condition | New | Type | Other, C/Z stee purline forming machine | |
| Tile Type | Steel | Use | Other, purline | |
| Place of Origin | Hebei, China | Brand Name | XINGHE | |
| Model Number | C80-300 | Power(W) | 11KW | |
| Voltage | 380v | Dimension(L*W*H) | 9600*13.0*1200mm | |
| Weight | 6ton | Certification | BV | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Main Specification | ||
C type steel purlin roll forming machine | ||
1 | Main frame | 400mm H-sections steel |
2 | Side board thickness | 18mm |
3 | Main motor power | 7.5kw |
4 | Power supply | 380V 50-60Hz |
5 | Shaft number | 15 rows |
6 | Shaft material | Carbon steel 45# |
7 | Shaft diameter | 80mm |
8 | Rolling wheel material | Bearing steel GR15 with forging and annealing |
9 | Cutting method | Hydraulic mould cutting or sawed off with punching |
10 | Hydraulic pump motor power | 11kw |
11 | Chain size | 50mm |
12 | Control system | PLC Delta inverter |
13 | Production rate | 8-9m/min |
14 | Feeding thickness | 1.5-3.0mm |
15 | Feedstock | Black or galvanized steel strip |
16 | Finished C purlin size | 80-300mm |
17 | Overall size | 9600*1300*1200mm |
18 | Total weight | About 6 Tons |
*Parameters above are the standard configuration Parameters can be changed as per your special requests. | ||

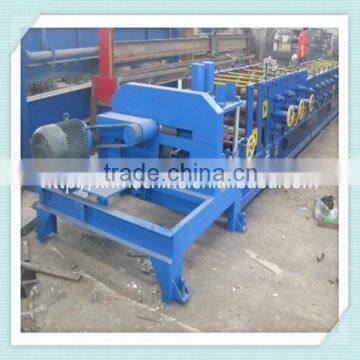

Product Photos |
Package & Payment & Delivery | ||
1 | Package details | Nude fasten up in container or under your requests |
2 | Payment terms | 30% TT for deposit balance against copy of B/L 100% L/C at sight |
3 | Delivery time | Within 30 days after receipt deposit |
4 | Port of shipment | XINGANG TIANJIN |
Our Service | |
1 | One-year quality assurance for all the machine |
2 | Technical staff available to service machine overseas |
3 | Permanent free for technical support |
4 | Design and produce according to your sample or drawing |
