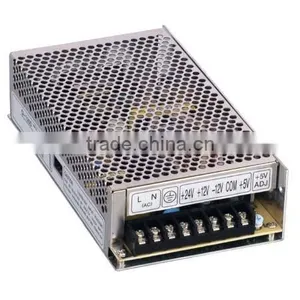

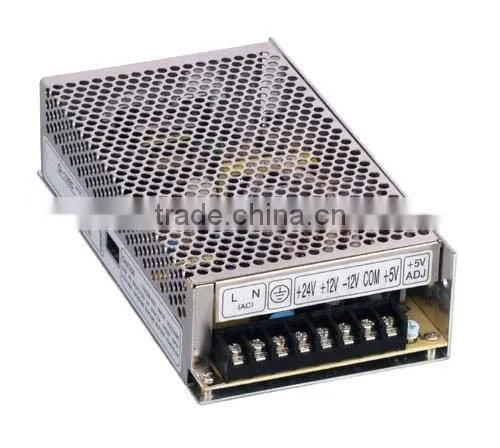

ac dc Output Switching Power Supply T100

Name: ac dc Output Switching Power Supply T100
Brand: HUAJING
SKU: 118263583

US$ 1 - 100 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

HUAJING

Model Number:

T100

Zhejiang Huajing Rectifier Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name HUAJING

Model Number T100

Output Power 51 - 100W

Output Type Triple

Input Voltage Other, 85 ~ 132VAC/170 ~ 264VAC by switch 47 ~ 63Hz

Output Frequency 47 ~ 63Hz

105°C Output capacitor

With short-circuit and overload protection

100% full-load burn-in test

Installed with EMI filter, minimum wave

Model Performance	T-100C			T-100D
Model Performance	CH1 CH1	CH2	CH3	CH1	CH2	CH3
DC output voltage	5V	15V	-5V	5V	12V	24V
Output Voltage Tolerance (Note 2)	±2%	±6%	+2,-10%	±2%	+6%	± 6%
Rated output current	10A	2.5A	1A	6A	2A	2A
Output Current Range	2 -12A	0.2 -2.5A	0.1 -1A	2-12A	0.1 -2A	0.2 -2A
Ripple and noise (Note 3)	80mVp-p	150mVp-p	150mVp-p	80mVp-p	150mVp-p	150mVp-p
Into the line of stability (Note 4)	±0.5%	±1%	±1%	±0.5%	±1%	±1%
Load stability (Note 5)	±1%	±5%	±5%	±1%	±5%	±5%
DC output power	100W			102W
Efficiency	77%			79%
DC voltage adjustable range	CH1:+10,-5%			CH1:+10,-5%
Input Voltage Range	85 ~ 132VAC/170 ~ 264VAC Selected by switch 47 ~ 63Hz;
AC input current	2.5A /115V , 1.25A /230V
Inrush Current	Current 30A/115V 60A/230V cold start
Leakage	<0.5mA/240VAC
Overload	105% ~ 150% Type: FOLDBACK cut output Recovery: recycle AC ON / OFF
