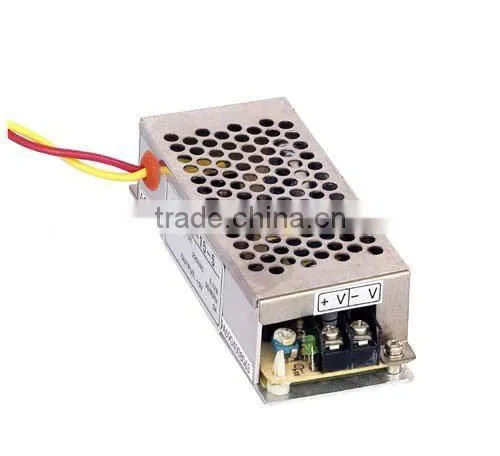

Help CenterMini Size Switch Power Supply
Related Products
-
Mini Size Switching Power Supply 35WUS$ 1 - 100MOQ: 50 Pieces -
Mini Size Switching Power Supply 50WUS$ 1 - 100MOQ: 50 Pieces
-
DIN Rail Output Switch Power Supply 30WUS$ 1 - 100MOQ: 50 Pieces
-
DIN Rail Type Output Switch Power Supply 45WUS$ 1 - 100MOQ: 50 Pieces
-
DIN Power Supply Single Output Switching Power Supply SmpsNegotiableMOQ: 50 Pieces
105°C Output capacitor
With short-circuit and overload protection
100% full-load burn-in test
Installed with EMI filter, minimum wave
|
Model Performance |
MS-15-5 |
MS-15-12 |
MS-15-24 |
DC output voltage |
5V |
12V |
12V |
Output Voltage Tolerance (Note 2) |
±2% |
±1% |
±1% |
Rated output current |
3A |
1.3A |
0.7A |
Output Current Range |
0-3A |
0-1.3A |
0-0.7A |
Ripple and noise (Note 3) |
50mVp-p |
50mVp-p |
100mVp-p |
Into the line of stability (Note 4) |
± 0.5% |
± 0.5% |
± 0.5% |
Load stability (Note 5) |
± 1% |
± 0.5% |
± 0.5% |
DC output power |
15W |
15.6W |
16.8W |
Efficiency |
65% |
68% |
72% |
DC voltage adjustable range |
+10,-5% |
± 10% |
± 10% |
Input Voltage Range |
85 ~ 132VAC/170 ~ 264VAC by switch 47-63Hz |
||
Input Current |
0.5A /115V,0.25A /230V |
||
Inrush Current |
Current 15A/115V 30A/230V cold start |
||
Leakage |
<0.5mA/240VAC |
||
Overload |
105% ~ 150% type: current limit reset: Automatic restore |
||
