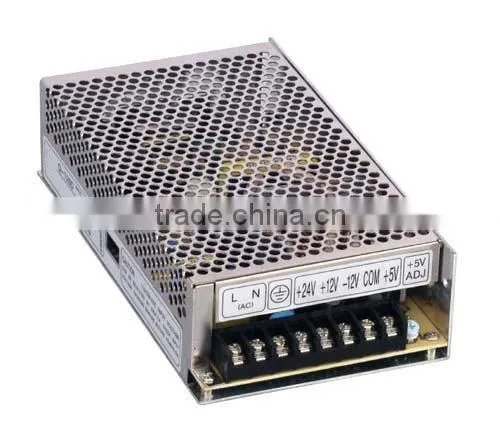

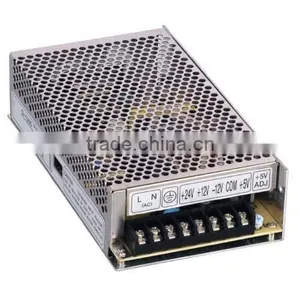

Help CenterIndustrial Switch Power D120
Related Products
-
Triple Output Switching Power Supply T30US$ 1 - 100MOQ: 50 Pieces -
12V ac Switching Power Supply 50WUS$ 1 - 100MOQ: 50 Pieces
-
ac dc Output Switching Power Supply T100US$ 1 - 100MOQ: 20 Pieces
-
24V Switch Power Q60US$ 1 - 100MOQ: 50 Pieces
-
Quad Output Switch Power Supply Q120US$ 1 - 100MOQ: 50 Pieces
105°C Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effect
With short-circuit and overload protection
100% full-load burn-in test
Installed with EMI filter, minimum wave
|
Model Performance |
D-120A |
D-120B |
||
CH1 |
CH2 |
CH1 |
CH2 |
|
DC output voltage |
5V |
12V |
5V |
24V |
Output Voltage Tolerance (Note 2) |
± 2% |
± 6% |
±2% |
± 7% |
Rated output current |
12A |
5A |
6A |
4A |
Output Current Range |
2-12A |
0.5-5A |
2-10A |
0.4-4A |
Ripple and noise (Note 3) |
60mVp-p |
120mVp-p |
60mVp-p |
150mVp-p |
Into the line of stability (Note 4) |
± 0.5% |
± 1% |
± 0.5% |
± 1% |
Load stability (Note 5) |
± 0.5% |
± 5% |
± 0.5% |
± 6% |
DC output power |
120W |
126W |
||
Efficiency |
78% |
80% |
||
DC voltage adjustable range |
CH1:+10.5% |
CH1: +10.5% |
||
Input Voltage Range |
88 ~ 132VAC/176 ~ 264VAC Selected by switch 47 ~ 63Hz |
|||
Input Current |
2.5A /115V ,1.25A/ 230V |
|||
Inrush Current |
Cold-start Current 35A |
|||
Leakage |
<3.5mA/240VAC |
|||
Overload |
105% ~ 150% Type: pulsing hiccup shutdown Reset:auto recovery |
|||
Over Voltage Protection |
CH1:5.75V ~ 6.75V |
|||
