AWM3135 Silicone Rubber Heat Resisting Wire
US$ 0.01 - 1
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TianCheng
Model Number:
AWM3135
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AWM3323 Slicone Heating WireUS$ 0.01 - 5MOQ: 2000 Meters -
UL3222 Brown Color Metal Alloy Silicone Heating WireUS$ 0.01 - 5MOQ: 1000 Meters
-
UL3219 Metal Alloy Silicone Heating WireUS$ 0.05 - 5MOQ: 1000 Meters
-
9mm Tinned Copper Core Silicone Insulation Fiberglass Braid Ignition WireUS$ 0.35 - 1MOQ: 1000 Meters
-
Tinned Copper Core Silicone Insulation Fiberglass Braid Ignition Cables Highly Used for CarsUS$ 0.35 - 1MOQ: 1000 Meters
Place of Origin
Jiangsu, China
Brand Name
TianCheng
Model Number
AWM3135
Type
Insulated
Application
Other, internal wiring
Conductor Material
Other, tinned copper
Conductor Type
Stranded
Insulation Material
Other, silicone rubber
Specifications
AWM3135 Silicone Rubber Heat Resisting Wire1.We are the manufacturer
Working Conditions
rated voltage:600v
rated temperature:-60°c - +200°c
Composition
conductor: tinned copper core
insulation:silicone rubber
Application
Wiring of Electrical Household Appliance,Lamps,Electronic Equipment and High Temperature Environmet,etc...
Product dimensions
UL 3135 silicone rubber wire
| AWG No. |
Conductor |
Diameter mm |
Insulation Thickness mm |
Outer Diameter mm |
Ref.Weight kg/km |
| 24 | 7/0.20 | 0.60 | 0.78 | 2.3 + 0.10 | 5.70 |
| 12/0.15 | 0.60 | 0.78 | 2.3 + 0.10 | 5.90 | |
| 22 | 7/0.26 | 0.75 | 0.78 | 2.5+ 0.10 | 8.30 |
| 17/0.15 | 0.75 | 0.78 | 2.4+ 0.10 | 7.20 | |
| 20 | 7/0.32 | 0.96 | 0.78 | 2.6+ 0.10 | 10.40 |
| 28/0.15 | 0.95 | 0.78 | 2.6+ 0.10 | 10.10 | |
| 18 | 7/0.40 | 1.20 | 0.78 | 2.9+ 0.10 | 14.60 |
| 24/0.20 | 1.15 | 0.78 | 2.9+ 0.10 | 13.20 | |
| 17 | 32/0.20 | 1.34 | 0.78 | 3.0+ 0.10 | 16.00 |
| 16 | 7/0.50 | 1.47 | 0.78 | 3.2+ 0.10 | 20.00 |
| 40/0.20 | 1.50 | 0.78 | 3.2+ 0.10 | 17.80 | |
| 15 | 30/0.25 | 1.60 | 0.78 | 3.3+ 0.10 | 21.00 |
| 14 | 41/0.254 | 1.90 | 0.78 | 3.7+ 0.10 | 27.00 |
| 13 | 49/0.25 | 2.0 | 0.78 | 3.8+ 0.10 | 29.80 |
| 12 | 19/0.50 | 2.50 | 0.78 | 4.2+ 0.10 | 36.00 |

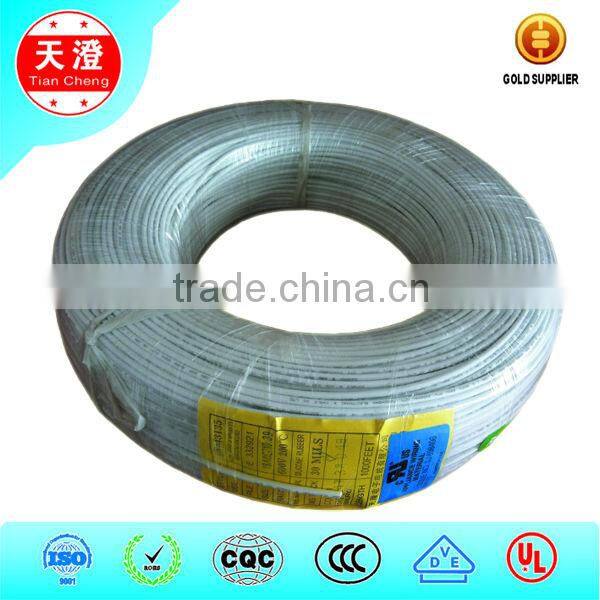

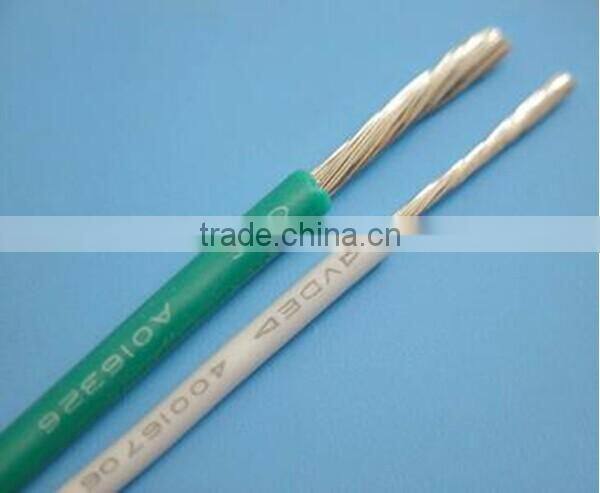

Product show

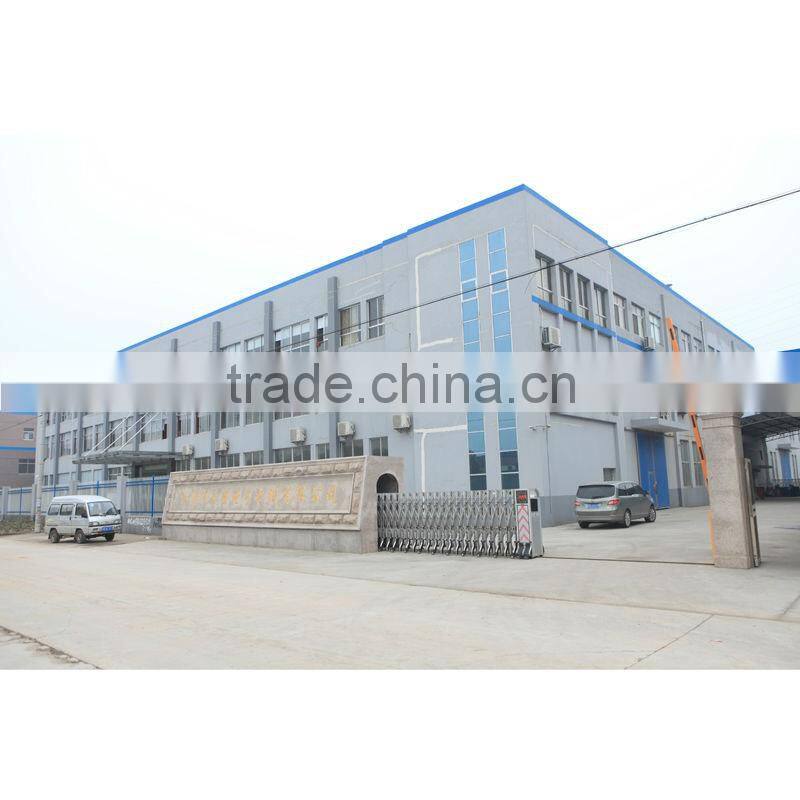

Factory

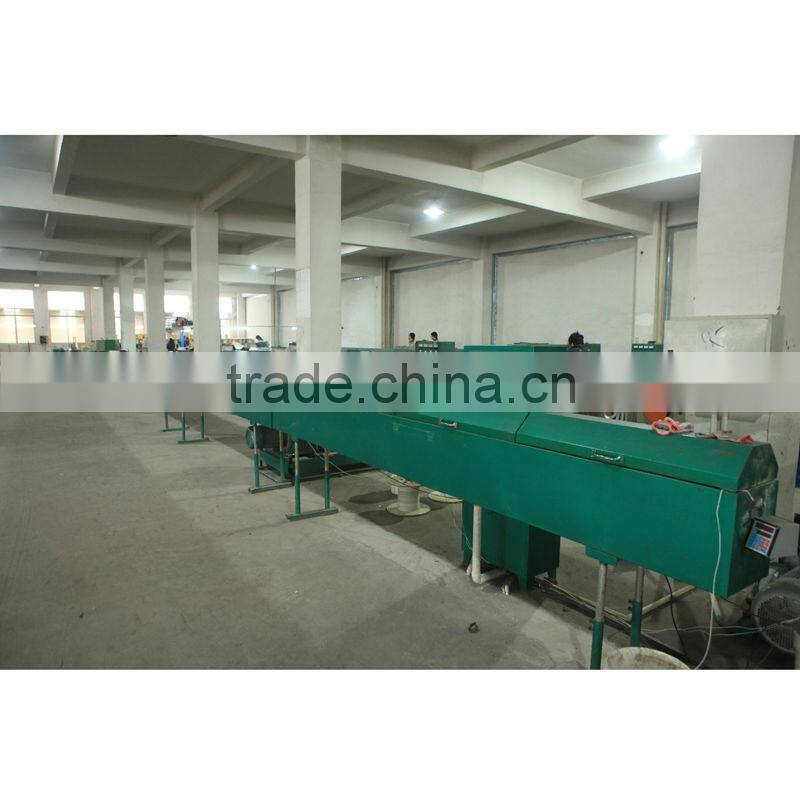

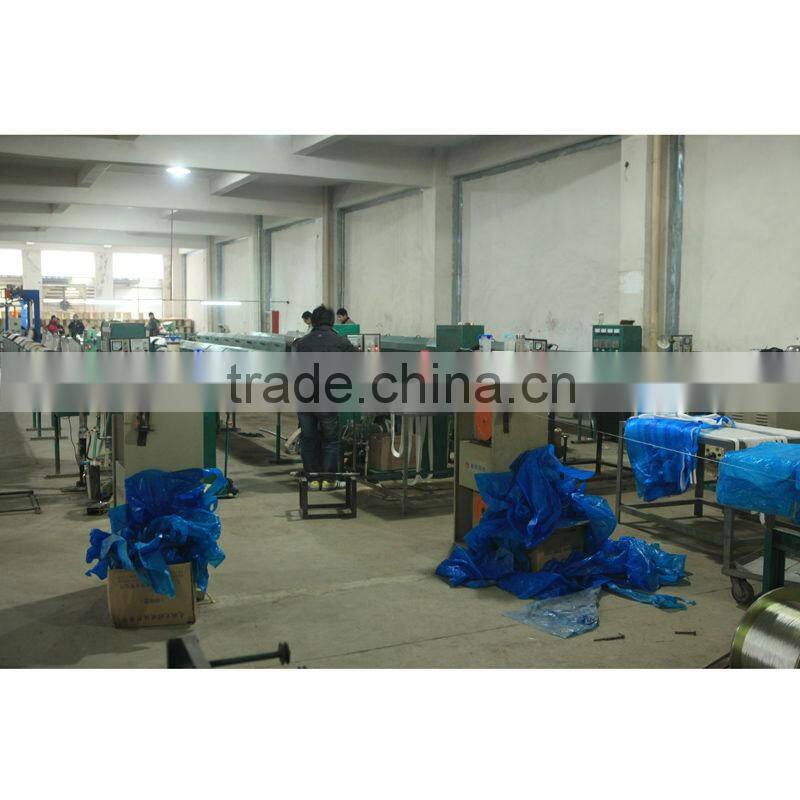

Production line
Certificate
Our services
To Provide Our Customers With A Competitive Marketplace Advantage Through Our Applied Knowledge,
Value-added Services, and Our Innovative Control Solutions.
Welcome To Contact Us For More Details. Any inquires will be replied within 24 hours.
