Professional technology wood branches slicing machine made in changzhou China

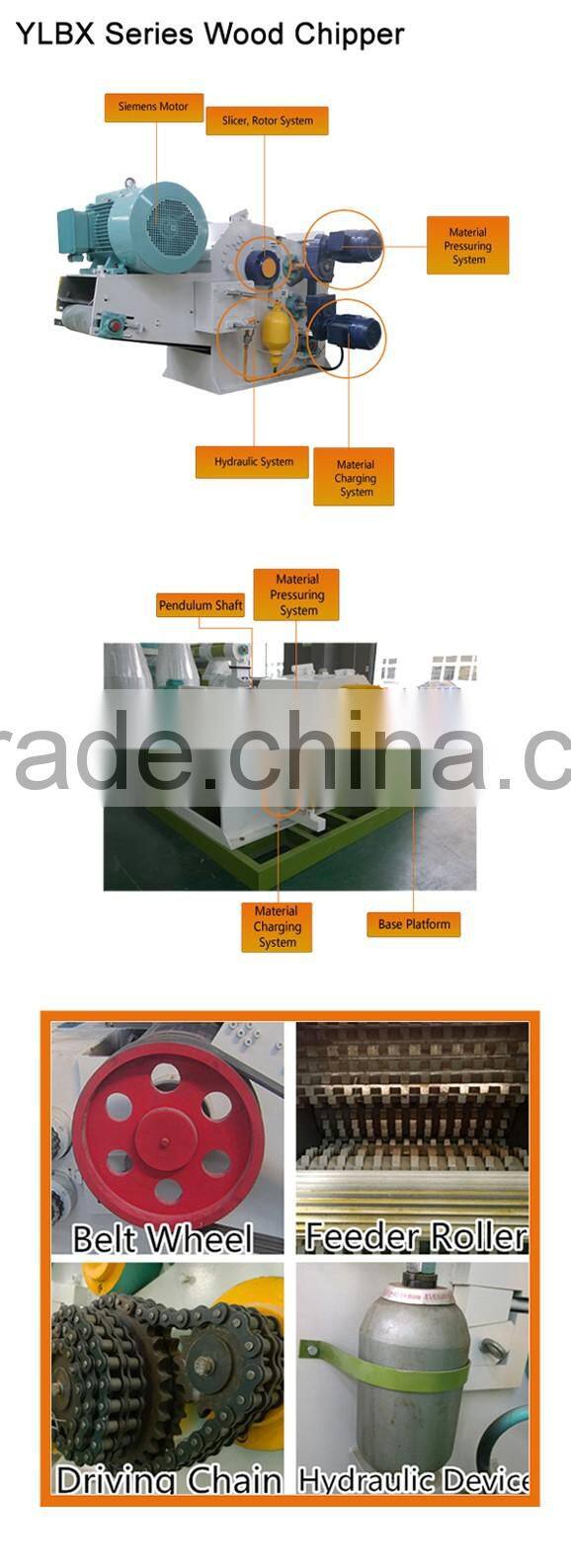

Detailed introduction of drum wood chipper :
We use famous brand parts to guarantee the quality of machine and every machines are processed in our own CNC workshop.
Introducing the Model of YLBX216:
Item |
drum wood chipper ( YLBX216 ) |
|
Technical Parameters (YLBX216 )
|
- Capacity: 8t/h - Dimensions: 4348x1730x1258 (mm) - Rotor diameter: 650 (mm) - Pump motor power: 1.5 optional - Number of rotor knives: 2 pieces - Clip length: 22/30mm - Net weight: 4070 (kg) - Main drive motor power: 55 (kw) |
Features |
- Wood logs, branches and twigs with moisture more than 15% - CE & ISO & SGS - Siemens motor, NSK/ SKF bearing - Only one adopt Germany's advanced technology in china - Special material blade with high strength and anti-abrasion - Knife roll is wholistic processing and is understaken dynamic balance test to improve accuracy ans stable operation. - Process larger diameter wood with its special structure(IPR) - Feeding system consists of feeding and squeezing parts - PLC control system - Low power consumption, which is 20-30% lower than similar product in market - Forging dead plate, with high strength and long service time |
Packing Details |
Iron case or iron pallet etc |
MOQ |
1 set |
Payment |
L/C, T/T, Western Union, Money Gram as client require |
Warranty |
1 year |
If YLBX216 is not suitable for you, please refer to the following models.
Main technical parameters for related Models:
Model |
YLBX213 |
YLBX216 |
YLBX2108 |
YLBX21010 |
Rotor diameter (mm) |
320 |
650 |
800 |
1000 |
Number of rotor knives( pieces ) |
2 |
2 |
16 |
18 |
Feed opening (mm) |
120x350 |
180x500 |
250x600 |
350x700 |
Rotor speed ( rpm ) |
760 |
590 |
650 |
550 |
Feed speed ( m/min ) |
37 |
37 |
26 |
21 |
Stock processed max diameter ( mm ) |
90 |
120 |
200 |
300 |
Clip length ( mm ) |
26 |
22/30 |
20 |
20 |
Capacity ( t ) |
3 |
25 |
20 |
40 |
Main drive motor power ( kw ) |
30 |
55 |
90 |
160 |
Feed roller motor power ( kw ) |
1.1x2 |
3x2 |
4x2 inverter optional |
7.5x2 inverter optional |
Pump motor power ( kw ) |
Manual |
1.5 optional |
1.5 optional |
2.2 |
Machine net weight ( kg ) |
1250 |
4070 |
5700 |
7500 |
Overall dimensions ( mm ) |
155x1184x1 120 |
4348x1730x1 258 |
2900x2990x1 500 |
3532x3260x1 650 |
Until now, as a professional manufactuer of biomass machinery, we have finished various kinds of wood chipper with very rich experience! And our products have been sold well to over 50 countries.
If you interest, please send us an inquiry directly! It is our honor to customize a best suitable solution for you according to your requirements.
Packaging: Depending on customers' requirement,such as wooden box or Iron crate etc.
Shipping: Our shipping operator and delivering equipments will be ready on time to ensure
goods shipped based on Sales Order requirement When the container arrived
our factory.
Advantages we have:
-24 Hours Online Service.
-Inquiry will be replied within 2 hours.
-All-the-way tracking service offered from placing order to delivery.
-Free training for operation, debugging and daily maintenance.
-We can provide professional guide installation.
-One year warranty and all-round after-sales service.
-Customized design and flow chart are available for our clients.
-Independent R&D team and strict & scientific management system.
Yongli - is a qualified manufacturer which specializes in developing, producing and marketing top class machinery equipment. Now we focus On Pellet mill, Hammer mill, Mixer, drum dryer, wood
chipper, packing Machine etc. Video: /watch?v=mp96IZFDphI
(1) 15 years'experience in biomass pellet production field.
(2) Approved ISO9001 and international certificate: CE and SGS.
(3) 7 years golden Supplier in Alibaba. 21 National patents by government.

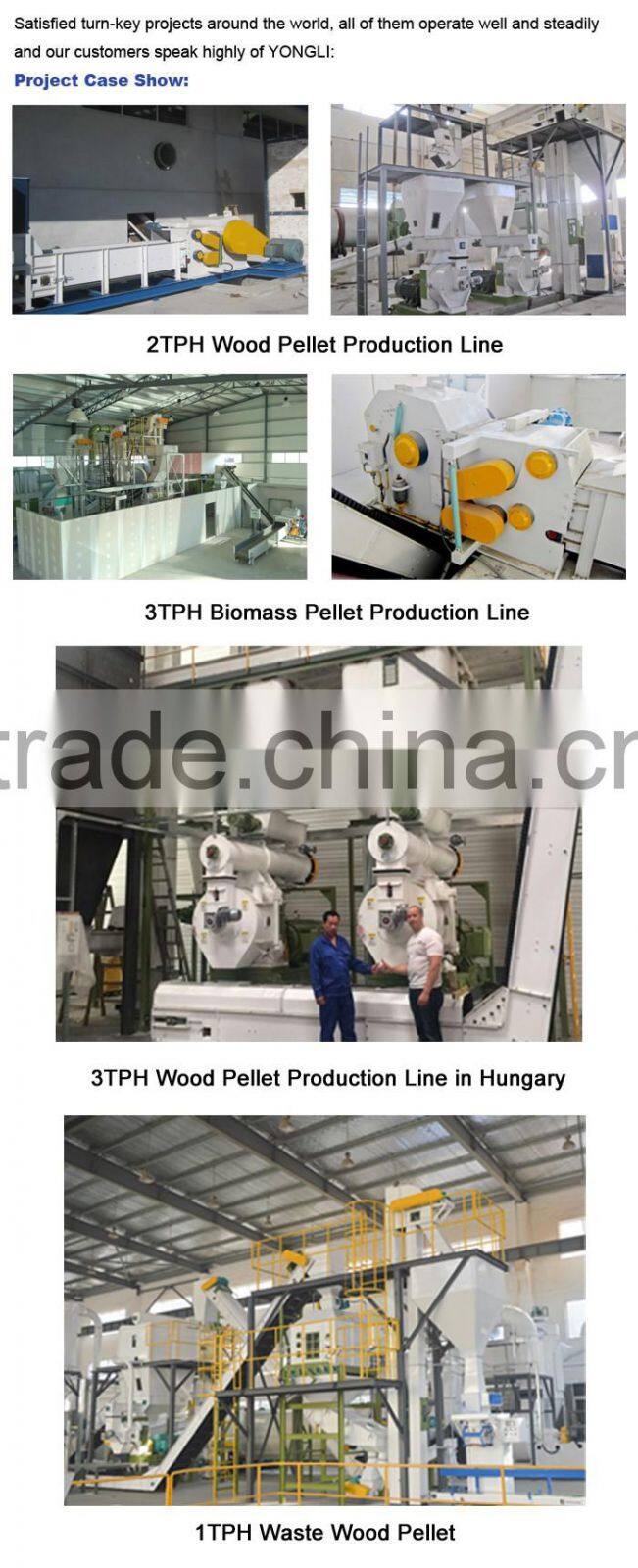

(4) Exported to over 50 countries and finished more than 2000 turn-key projects.
(5) Specialized in designing, researching, developing, manufacturing and exporting.

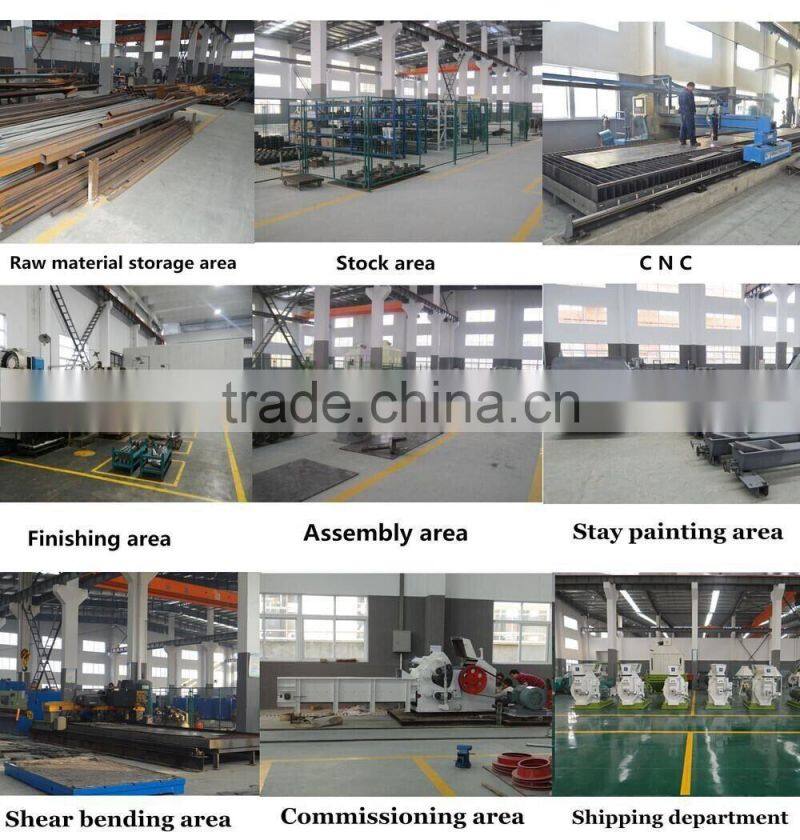

Workshop show:
