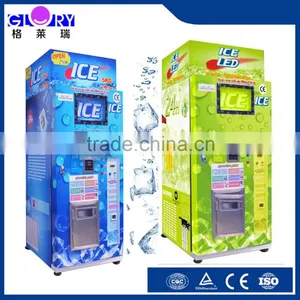

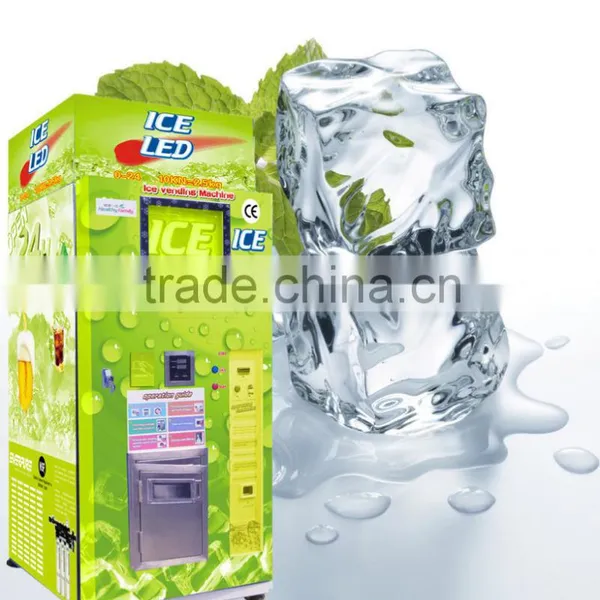

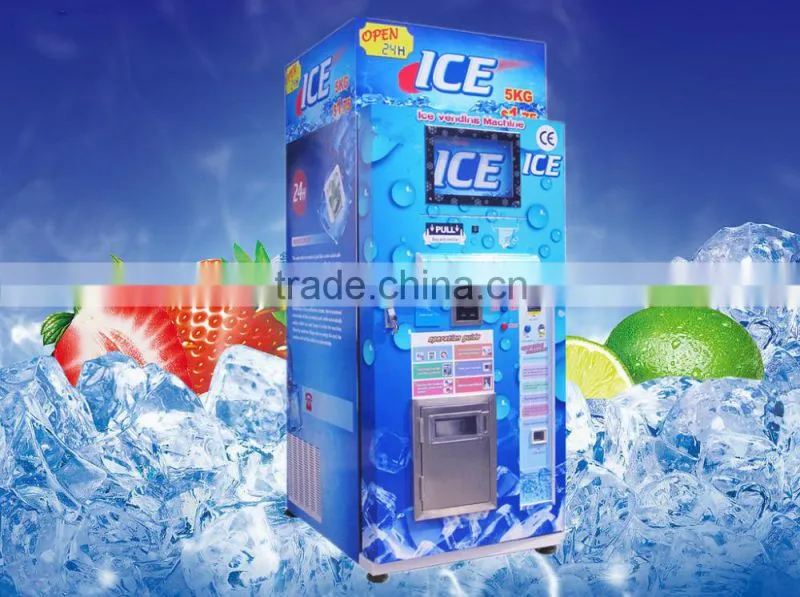

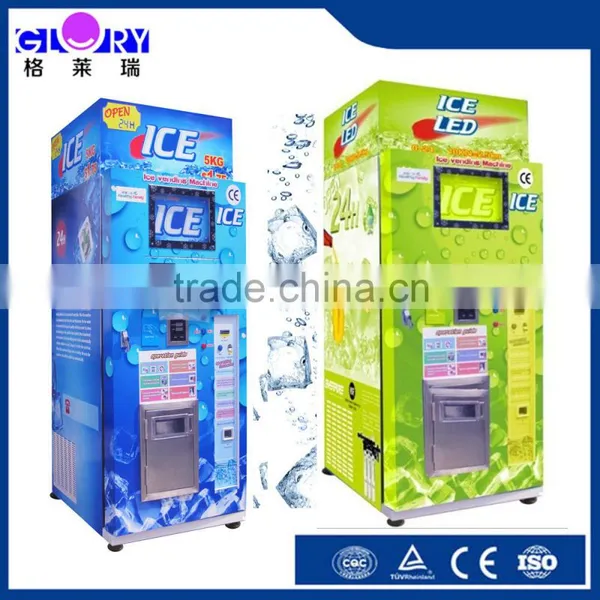

Energy Saving Convenient Multifunction Self-Service Ice Vending Machine For Bagged Ice Or Bulk Ice

   ♦ Ice Vending Machine Use fully automatic water purification,ice-making,ice vending and calculation of ice amount and price,automatic sealing,really realize the fully automatic vending.

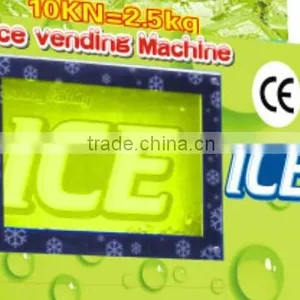

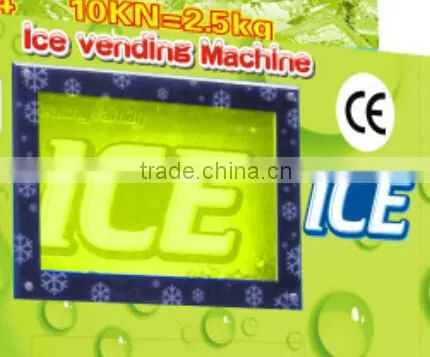

    ♦ Ice Vending Machine Use LED display screen,online display sum and balance;

   ♦The Ice Vending Machine Make use of leading PC electric controlling system for automatic water filling,water purification,automatic ice-making,automatic machine stopping for full of ice ,and pause vending,falsh light and reject putting in coins when lack of ice ;automatically lock of ice vending door and unlock when consume.

   ♦ Payment methods Of Ice Vending Machine :coin +bill +ic card(with change)

  ♦ Turnover of Ice Vending Machine can be checked,independent counting for coin and card

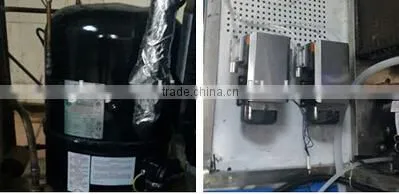

    ♦ The Ice Vending Machine is High security, security and against the destruction.Body material;2.0mm thickness cold-rolling sheet,surface high-temperature electrostatic spraying. Makes use of food-grade 304 stainless steel for all the ice –contact parts,and the world brand japanese compressor(CE certificate)

    ♦ The conveying device of Ice Vending Machine makes use of famous-brand assembly from taiwan to sure the reliable performance. The computation part is thd patent of our factory which is under the protection of intellectual property rights.flexible and adjustable ice amount and unit price setting.

    ♦ Ice-break device of Ice Vending Machine is installed inside the ice tank so as to ensure ice vending smoothly; Patent ice-vending structure ensure high efficient and convenient ice vending.

      ♦ Ice tank of Ice Vending Machine foamed from 5cm thickness polyurethane have good heat preservation function so as to ensure ice cube will stay for a long time without melt.

    ♦Ice Vending Machine Adopt global advanced American COINCO currency payment system, that is stable and reliable.

     ♦ Adopt German SIEMENS/GSM module to realize the machine remote management: automatic message notification when failure; check turnover and running status by message

      ♦Adopt Taiwan FOTEK photoelectricity switch induction technology to check ice position, automatically stop vending when lack of ice.

      ♦ In auto-packing structure, we adopt German SIEMENS PLC (programmable logic controller)which is imported with original package. And German imported vacuum suction nozzle, stable transmission, can move ice,bag ice, seal bag,dispense rapidly and automatically

     ♦ Adopt American EVERPURE filter to produce sanitary edible ice cube.

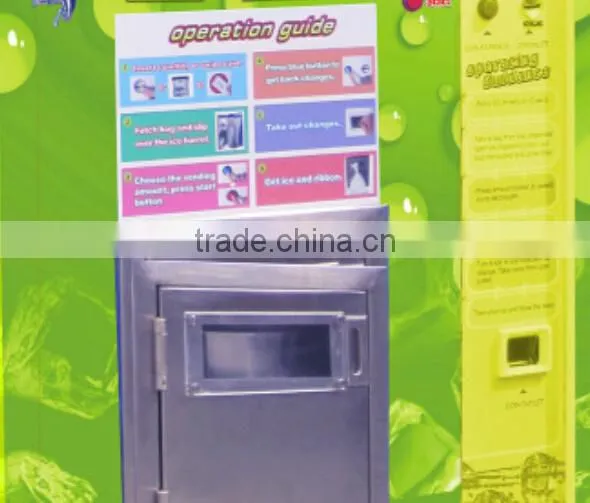

    ♦ Ice vending door adopt close and anti-dust door, safe and sanitary. Automatically lock when no consumption, and unlock after flinging coin.

    ♦ Patented design to dispense ice, gitator installed inside, to ensure dispense ice smooth, fast,efficiently.

     ♦ Ice storage bin is made of 5 CM thick polyurethan foam, has good thermal insulation property, can stop the ice cube dissolving in a long time

      ♦ GSM global remote management system (optional function)

Item

GL-1000AUTO Self-Service Ice Vending Machine

Power supply

AC220-240v/50HZ

consumption

3KW

rated current

15.76A

Environment temperature

2-38℃

Working temperature

20℃

capatity of ice

20℃ temperature

450KG/24H

Size of the ice-cube

w22*d22*h22mm

Capacity of ice mould space

540space

Spec of compressor

3P

refrigerant

R404a

Cooling method

Spray cycling spray

Radiating method

Air (can customize water cold)

Size of bulk ice tank

W80cmxd80cmxh150cm

Capacity of ice tank

200kg

Material of ice tank

Stainless steel 304

Water source

Municipal tap water

Purification process

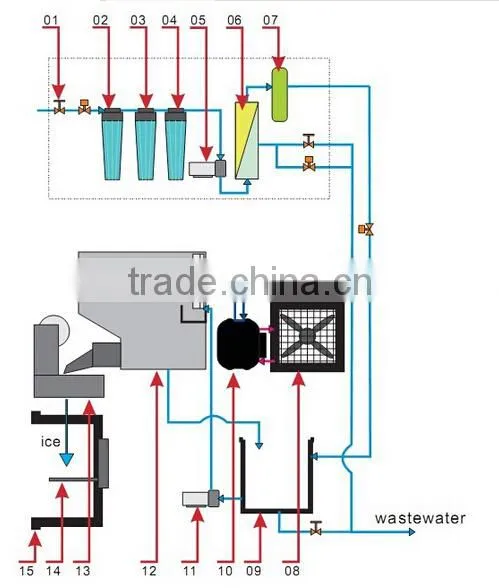

Tap water→20″5upp filter→20″1upp filter→EVERPURE filter→ice machine

Pressure of raw water

≥0.1mpa

Sales method

Induction ic card/coin/bill/give change/GSM remote monitor(option)

Capacity of bill box

400PCS

Capacity of coin box

3000PCS

Dispensing ice

Baged ice/ bulk

bag ice

Wide33*high55cm

Bag thickness

0.05mm(single layer)

Range of bag ice

5kg

Ice dispensing speed

22S/bag

Capacity of inside storage bag

200 pcs

Machine size

W100cmxD120cmxH245cm
