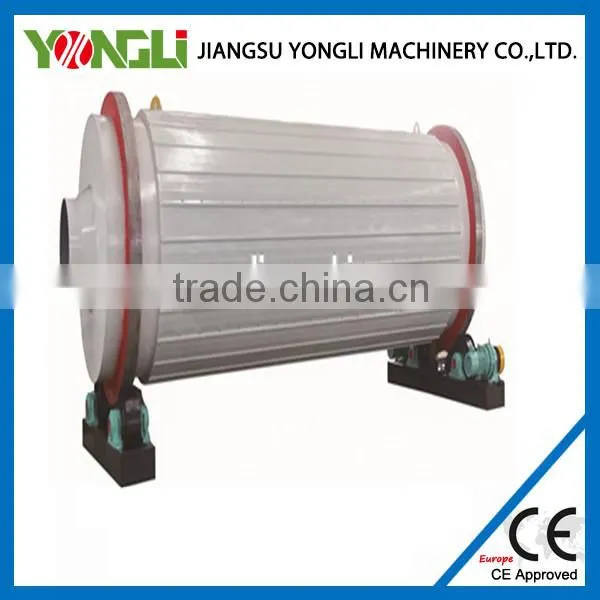

SGS Report 2016 new type Drying Hardwood Lumber
Item |
sawdust dryer machine ( YLHG2 ) |
Style |

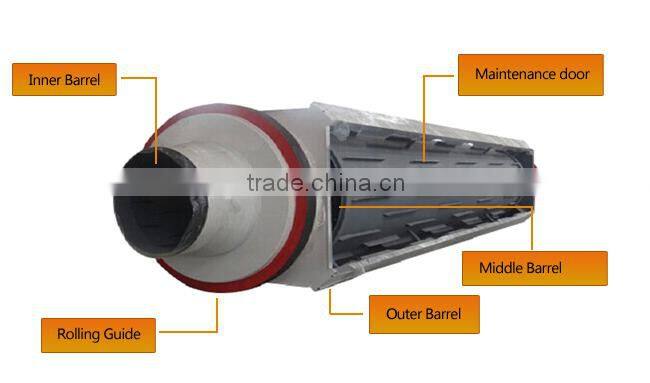

Triple layers drum dryer |
|
Technical Parameters
|
- Capacity: 2t/h - Inside diameter: 2450mm - Length: 8000 mm - Rotary speed(r/min): Can be adjusted by process - Power: 3x2(kw) - Inlet temperature: <500 - Outlet temperature: 80 degree - Moisture: 45% |
Features |
- Siemens motor - Available raw material: mainly for powder biomass raw material, such sawdust or grinded wood powder. - Three-pass dryer with high drying efficiency - Support of roller ring and retainer wheel are integral cast steel type - Convenient feeding - Sealed by flexible and anti-abrasion steel disc at the drum body andFeeding&discharge end - Feeding device is separately designed which is convenient for insta-Llation and transportation - CE/SGS/ISO/National Patent |
Packing Details |
Iron case or iron pallet etc |
MOQ |
1 set |
Payment |
L/C, T/T, Western Union, Money Gram or as your require |
Warranty |
1 year |
Main technical parameters:
Model |
YLHG1 |
YLHG2 |
YLHG3 |
YLHG4 |
YLHG5 |
Inside diameter(mm) |
1700 |
2450 |
2650 |
2850 |
3700 |
Length(mm) |
8000 |
8000 |
9100 |
9000 |
10000 |
Rotary speed(r/min) |
adjustable |
adjustable |
adjustable |
adjustable |
adjustable |
Capacity(t/h) |
1 |
2 |
3 |
4 |
5 |
|
Inlet temperature(℃)
|
<500 |
<500 |
<500 |
<500 |
<500 |
|
Outlet temperature(℃)
|
80 |
80 |
80 |
80 |
80 |
Power(kw) |
2.2x2 |
3x2 |
4x2 |
4x4 |
5.5x4 |

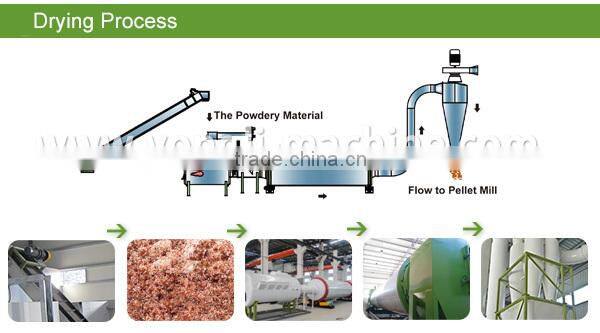

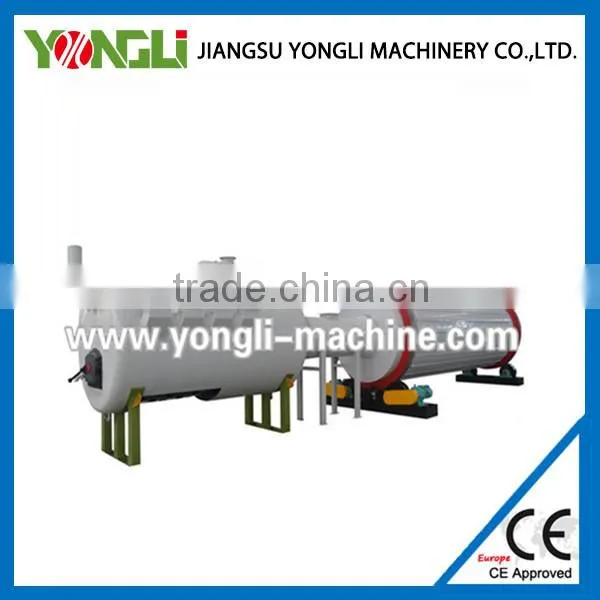

(Belt conveyor-->Sawdust-->Boiler-->Dryer-->Cyclone, Fan, Pulse filter)

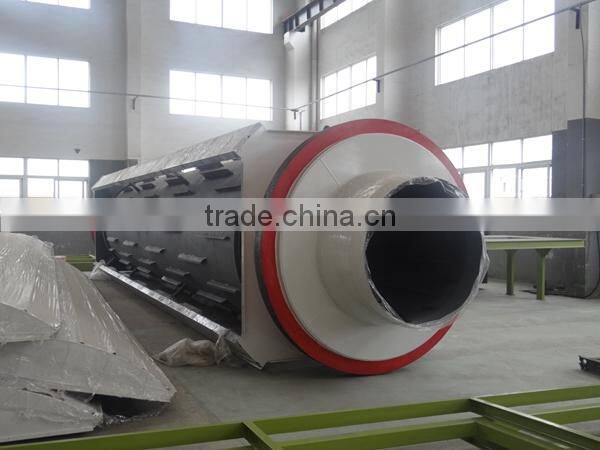

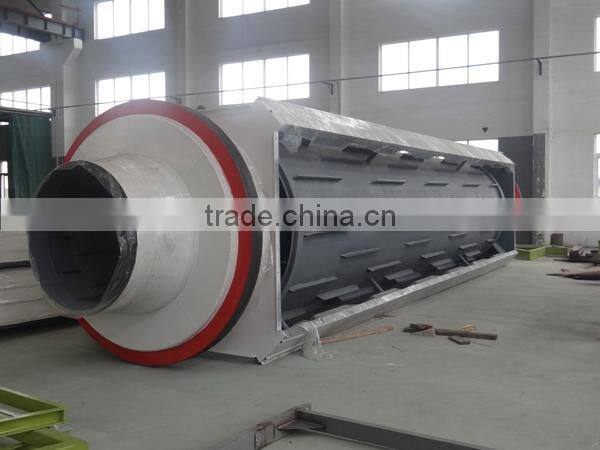

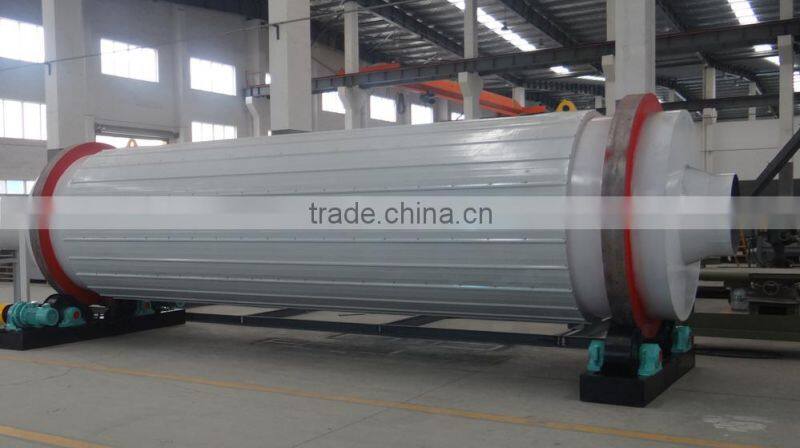

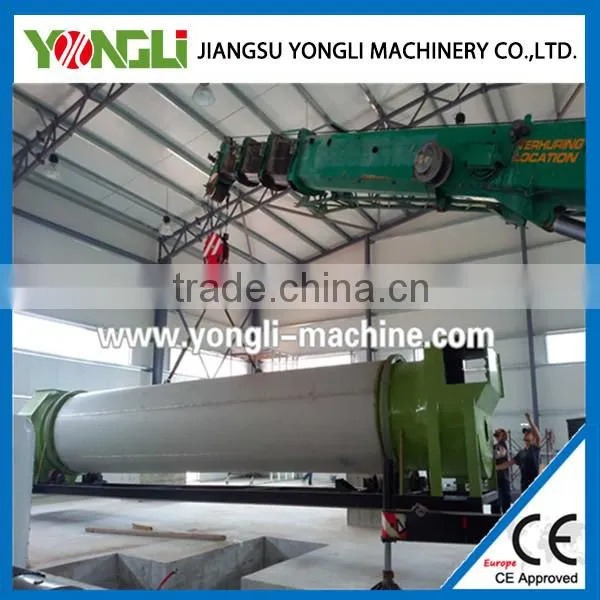

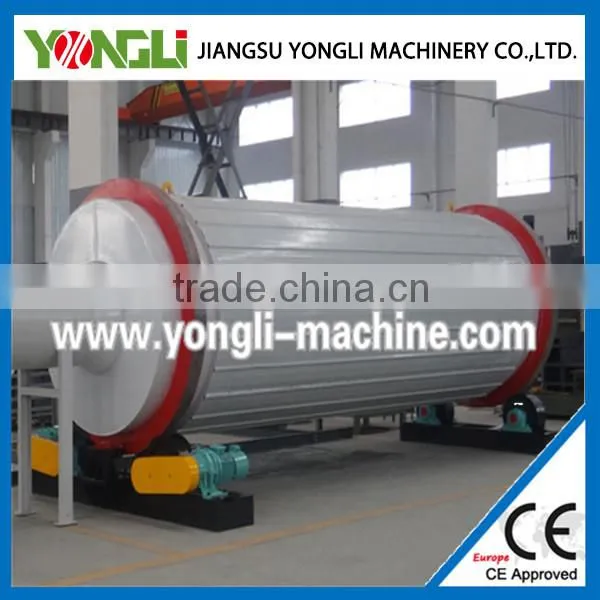

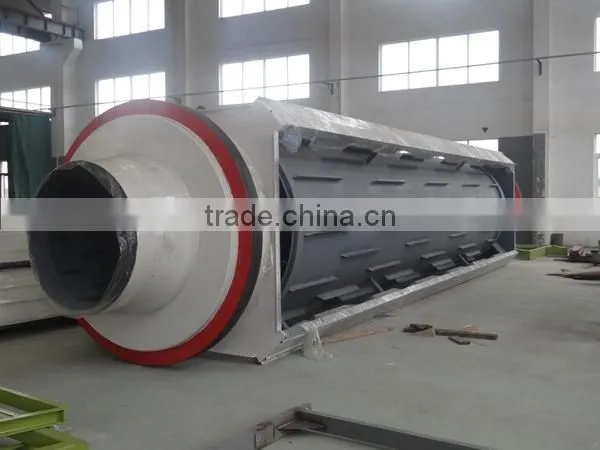

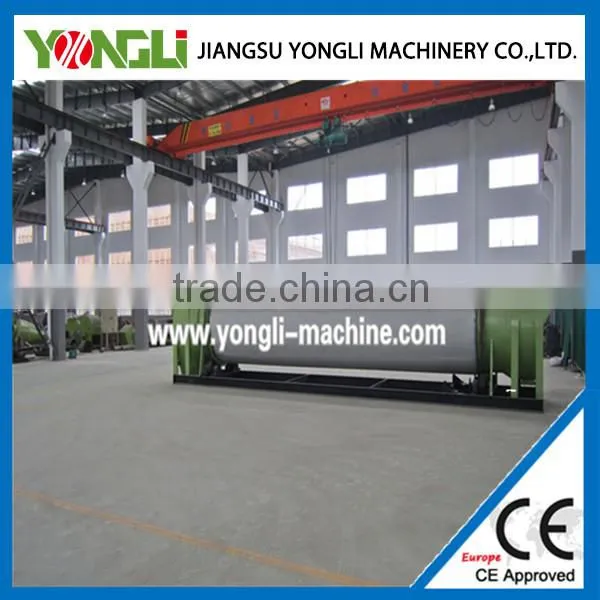

Factory photos of triple layers drum dryer:

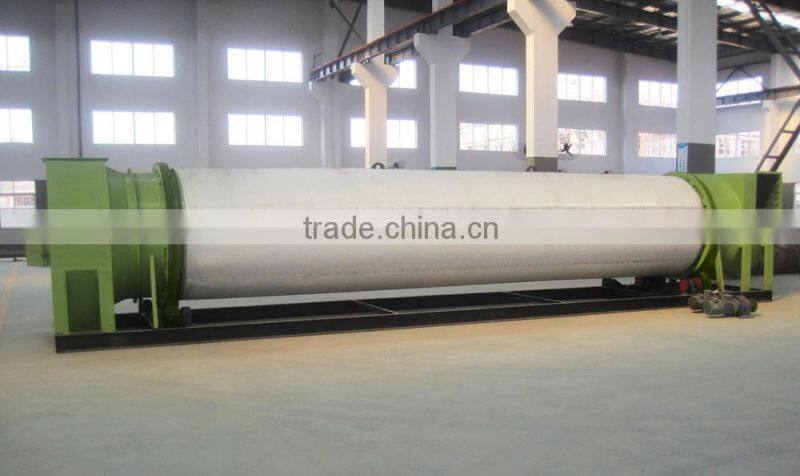

Single Layer Drum Dryer:
(Widely used for drying fibrous, wood chips, bulk or bulked powder biomass materials)

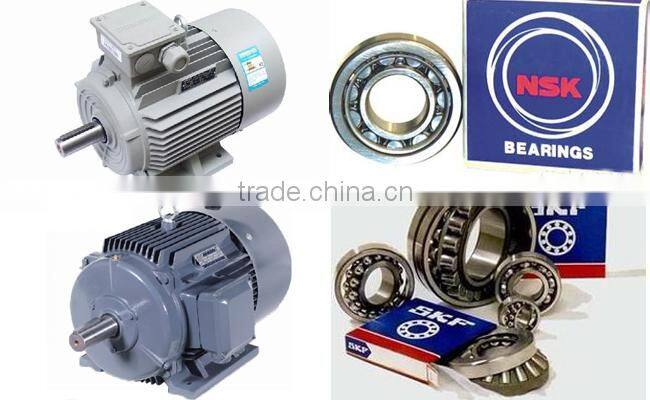

Use famouse spare parts to guarantee the dryer quality:(siemens motor, SKF/NSK bearing)
More details, please feel free to contact us !
Packaging: Depending on customers' requirement,such as wooden box or Iron crate etc.
Shipping: Our shipping operator and delivering equipments will be ready on time to ensure
goods shipped based on Sales Order requirement When the container arrived
our factory.
Yongli - is a qualified manufacturer which specializes in developing, producing and marketing top class machinery equipment. Now we focus On Pellet mill, Hammer mill, Mixer, drum dryer, wood
chipper, packing Machine etc. Video: /watch?v=mp96IZFDphI
(1) 15 years'experience in biomass pellet production field.
(2) Approved ISO9001 and international certificate: CE and SGS.
(3) 7 years golden Supplier in Alibaba. 21 National patents by government.
(4) Exported to over 50 countries and finished more than 2000 turn-key projects.
(5) Specialized in designing, researching, developing, manufacturing and exporting.
Workshop show:
