Home > Industrial Equipment & Components > Boiler & Furnace > Boiler > Hot Sale Low Price Pellet Wood Pellet Oven

Hot Sale Low Price Pellet Wood Pellet Oven

Name: Hot Sale Low Price Pellet Wood Pellet Oven
Brand: YONGLI
SKU: 118233845

Hot Sale Low Price Pellet Wood Pellet Oven thumbnail-1

Hot Sale Low Price Pellet Wood Pellet Oven photo-1

US$ 1,000 - 5,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Natural Circulation

Usage:

Industrial

Contact Supplier Request Quote Chat Now

Jiangsu Yongli Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Natural Circulation

Usage Industrial

Structure Water Tube

Pressure Other, Atmospheric pressure

Style Horizontal

Fuel Other, Biomass fuel

Place of Origin Jiangsu, China

Brand Name YONGLI

Model Number 1.40

Output Hot Water

Dimension(L*W*H) 4200*1650*2250mm

Weight 3925kg

Certification CE & ISO9001 & SGS

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Hot water boiler for sale:
1. fully and efficient combustion
2. excellent workmanship
3. no smoke, slag and coruscation

Hot sale low price pellet wood pellet oven

Features

(1) Energy efficient: the biomass hot water boiler half-gasification complete combustion, rapid heating water heater thermal efficiency up to 90% or more; body structure with four backhaul maximum increase heat transfer area, so that the heat can completely conversion; setting a dedicated heat recovery unit, smoke pipe exhaust temperature is below 120 degrees, greatly reducing the burning cost.

(2) Environmental: fuel for the comprehensive promotion of environmentally friendly biomass fuel, affordable, wide variety of sources; a special gasification chamber structure enables the fuel fully half gasification combustion, without erecting a tall chimney, just boiler vent connected to the outdoors; integrated dust removal device and configure, emissions visible smoke.

(3) Intelligent control: a microcomputer-button operation, can automatically feed automatic ignition with a temperature setting, loop start and stop and fault alarm function, easy operation.

(4) Safety and effort: biomass water heater pressure boiler without professional fireman. It can automatically feed automatic ignition 1-2 times-daily feeding, reduce labor intensity

(5) Maintenance is simple: the boiler internal vertical smoke tube structure, not easy to coke deposition obstruction has each furnace cleaning the mouth, post-repair and maintenance is simple.

Scope:

Widely used in hotels, guesthouses, sauna bath center, leisure clubs, buildings, apartments, factories, schools and institutions with hot water, bathing and heating.

Technical parameters:

Item		0.18	0.24	0.35	0.48	0.70	1.05	1.40
Rated heating value kcal		15×10⁴	20×10⁴	30×10⁴	40×10⁴	60×10⁴	90×10⁴	120×10⁴
Thermal efficiency%		90
Rated water temperature%		85
Rated water pressure		Atmospheric pressure
Fuel consumption kg/h		36	48	70	96	140	210	280
Rated voltage v		380
Power consumption W	Blower
	Induced draft fan	750		1100	1500	2200	3000	4500
	Feeder	180			250
Feeder Ratio K		150			75
Shipping Weight kg		642	1022	1428	1768	2229	3126	3925
Size mm	Length	1750	2200	2520	2720	3250	3800	4200
	Width	670	720	980	980	1250	1550	1650
	Height	1420	1580	1860	1960	1960	1960	2250
Water storage L		560	800	980	1100	1300	1950	2480
Diameter in	Input	40		50		50Flange	80 Flange
	Output	40		50		50Flange	80 Flange
	Sewage	40		50		50Flange	80 Flange

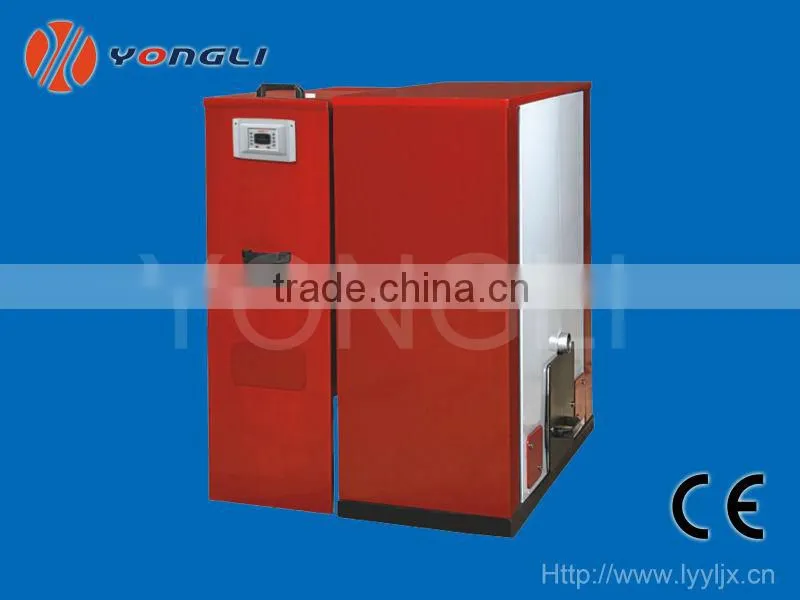

Photos of the Biomass hot water boiler

Contact way

About Our Company

Jiang su Yongli Machinery Co.,Ltd. was founded in 2003 with an occupation of 22,000m² located in the scenic Tianmu Lake, Liyang city, Jiangsu province, which is a national 5A tourist place.

We have spacious production workshop, comfortable and elegant office space, coupled with a strong team of workers.

Jiangsu Yongli Machinery Co., Ltd is with the strong capability of R&D, process engineering design,

and training, and the company is always commit to customers' satisfaction and success

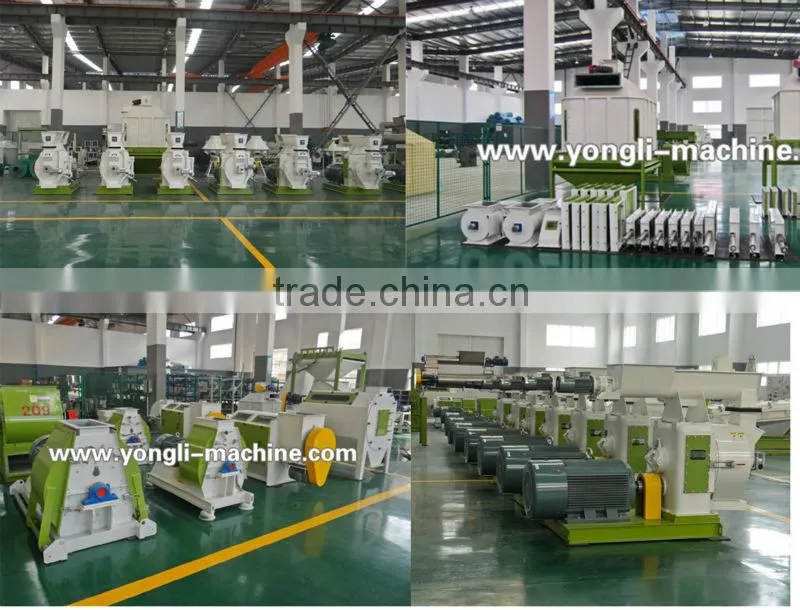

Our Warehouse

Certificates

1.The quality assurance system of Jiangsu Yongli Machinery Co., Ltd is authenticated with ISO9001 quality assurance system.

2.The products of YONGLI are issued CE certification by European Union.

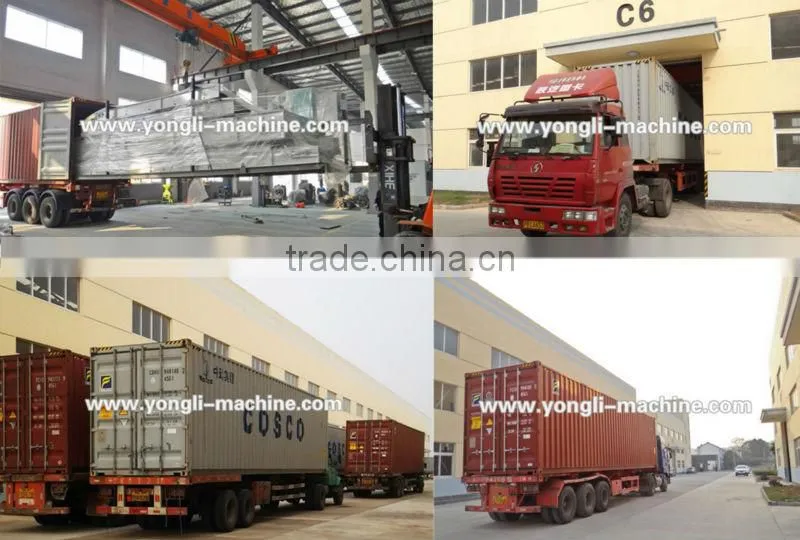

Delivery Management

When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
