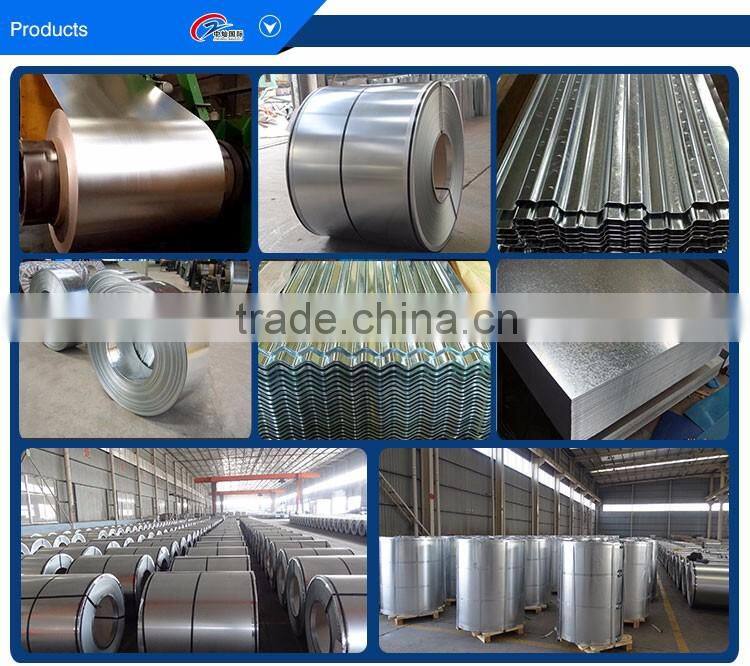

Prime 0.12mm thickness AZ80g Galvalume Steel Coil for Ukraine
- 300000 Ton / Tons per Month
- Qingdao Tianjin
- T/T
Product Details
Standard: | AISI, ASTM, BS, DIN, GB, JIS | Grade: | DX51D/FS Type | Thickness: | 0.12mm |
Place of Origin: | Shandong, China | Brand Name: | ZhongCan | Model Number: | 0.12mm*600-1500mm |
Type: | Steel Coil | Technique: | Other, Hot dipped and cold rolled | Surface Treatment: | Other, Galvalume |
Application: | Other, Door | Special Use: | High-strength Steel Plate | Width: | 600-1500mm |
Length: | Custom's Request |
Product Description
Brief Introduction of Galvalume Steel Coil :
The Galvalume Steel is a kind of coated steel coil/sheet. With the cold rolled steel of different strength and thickness as substrate, it is produced through applying Al-Zn coat on both faces by hot dip process. In its coating, Al accounts for about 55%, Si 1.6%, while the remaining is Zn. It enjoys both the physical protective feature and durability of Al and the electrochemical protective property of Zn. And its surface has bright silver color and regular embossed-like figure, which are highly decorative.
Specification about Prime 0.12mm thickness AZ80g Galvalume Steel Coil :
Product Name | Galvalume Steel/GI |
Thickness | 0.12-6.0mm |
Width | 600-1500mm |
Inner Diameter | 508 & 610mm |
Weight of Steel Coil: | Coil: 3-15MT |
Coating Type | Al-Zn Alloy |
Available Dipped Layer | 20-275g/m2 |

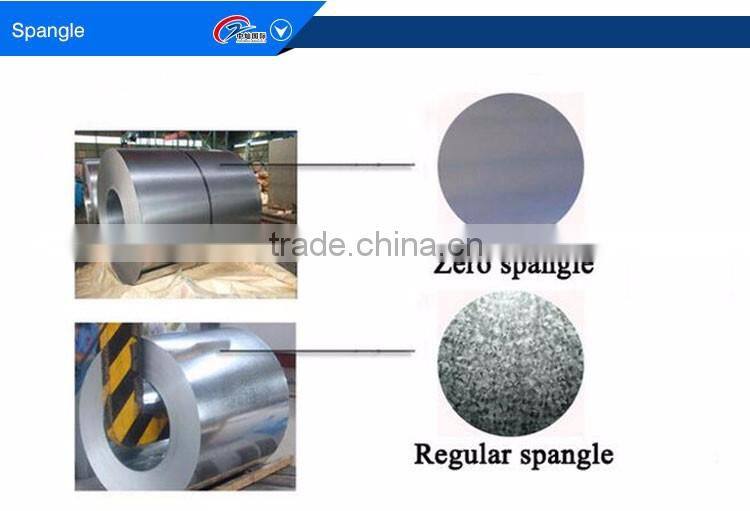

Surface Finish Structure | Normal Spangle |
Available Surface Treatment: | Passivating & Oiling & AFP & Filming |
Superiority of GL /Galvalume Steel Coil:
1. Resistance to Corrosion Has better performance in corrosion resistance than hot dip galvanized coil/sheet of the same thickness and its service life is 1-5 times longer than general hot dip galvanized coil/sheet.
2. Machinability Can satisfy the processing requirements of rolling, coiling and others processes alike.
3. Thermal Resistance Can sustain the environment at 315℃ for long time.
4. High Reflectivity Reflection ability of heat and light is twice as much as those of hot dip galvanized steel coil/sheet, and its reflectivity is more than 0.75, exceeding 0.65 (required by the EPA Energy Star Standard), which is an ideal construction material of saving energy.
Application for Prime 0.12mm thickness AZ80g Galvalume Steel Coil :
1. Architecture Roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds
2. Appliances Industry Outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation system, explosion-proof strip, solar water heater and appliance parts
3. Auto Industry Muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame, signboard in highway
4. Industrial Instruments Electric control cabinet, industrial refrigeration equipment, automatic vending machine
Mechanical Properties
Grade | Tension Test | ||
Yield Strength (MPa) | Tensile Strength (MPa) | Elongation% No Less Than | |
A80mm | |||
SGLCC | 140-350 | 270-500 | 22 |
SGLCD | 140-300 | 270-420 | 26 |
SGLCDD | 140-260 | 270-380 | 30 |
