Palm Fruit Oil Machine | Palm Kernel Oil Plant

From fresh fruit bunches to crude palm oil, following is a brief introduction of crude palm oil processing by Henan Doing Mechanical Equipment Co., Ltd . Doing supply all kinds of palm oil machines.

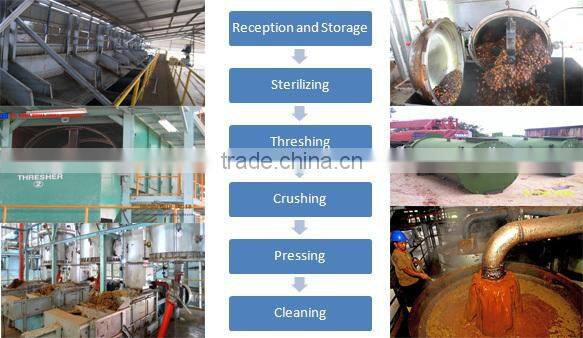

1. Raw materials reception and storage

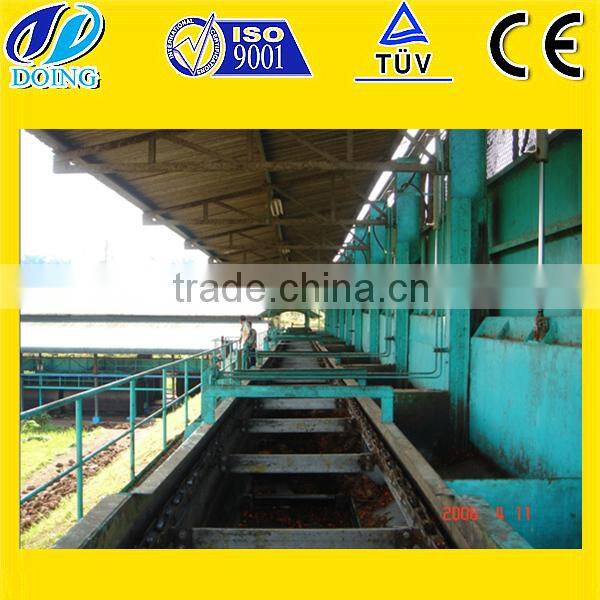

Workers pick fresh fruit bunches (FFB) , transport them to factory with cars, get the weight by Loadometer and discharge them to material platform which is specially designed for crude palm oil processing, laying up for latter process. Open the gate of discharging platform, FFB would fall down to the conveyor automatically and be sent to sterilizing section.

1. Sterilizing section  The function of sterilizing, known as stewing in high temperature, is to avoid the deterioration of fruit. This section can avoid the increase of palm oil AV by stewing the fruit about 60min with 300kPa steam in a specialized sterilizer.


2. Threshing section

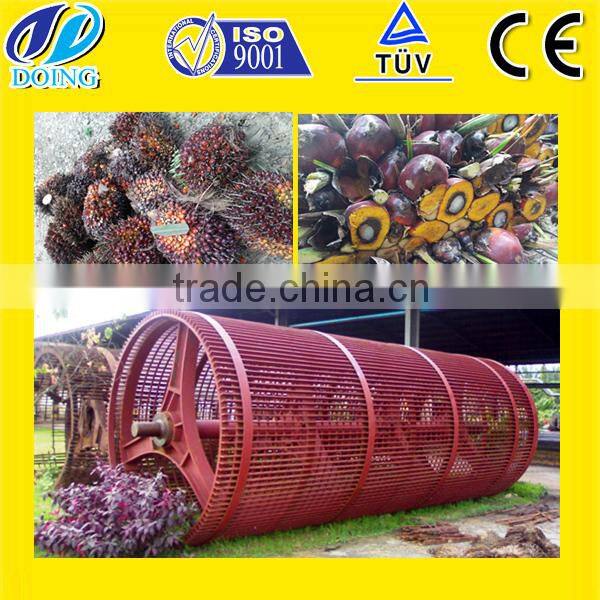

   The palm fruit proportion is about 60% of the FFB. In this section, we always use rotating drum thresher to separate palm fruit from the bunches.

3.


   Crashing The purpose of crushing is to destroy palm skin, separate the palm pulp and nuts, pound palm pulp and to damage the cell structure of palm pulp by heating at the same time, which avail the latter pressing section.

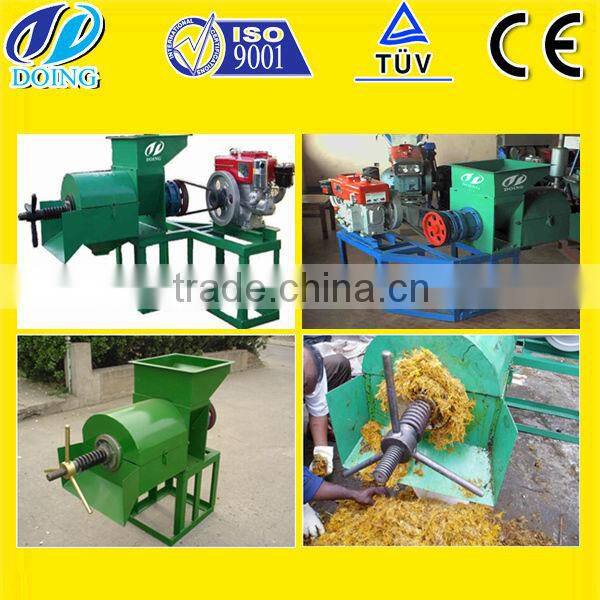

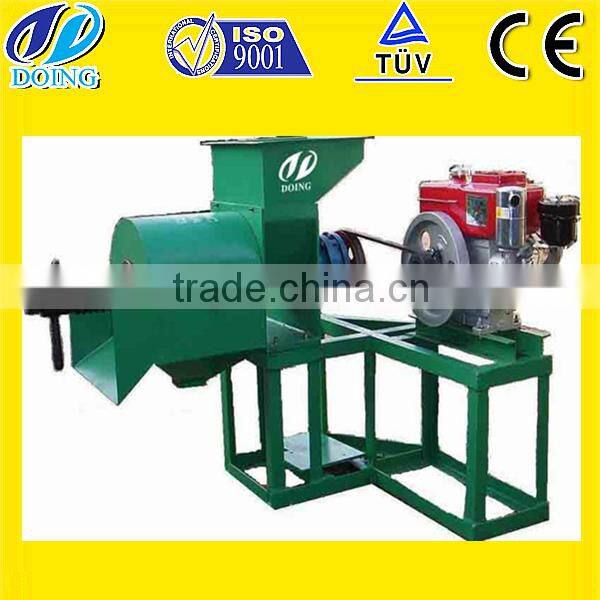

4. Pressing In crude palm oil processing, screw oil press is common equipment we use, the outcome of which is mixture of water, oil &residue and presscake (fiber cake).
5. Crude palm oil

   Separate the fiber from the mixture derived from pressing by subsidence and filtration, after continuous subsidence we can separate oil and precipitate. With another filtration and vacuum drying, the oil is just crude palm oil as we say.

This is just a brief introduction of crude palm oil processing, and there’s still many details in crude palm oil processing. If u have any questions about crude palm oil processing, please contact me.

4 . Advantages

(1) High oil yield , obvious economic benefit .

(2) Residual oil rate in the dry meal .

(3) Improving the quality of the meal .

(4) Low processing cost , high labor productivity.

4.Professional Advice

Please kindly inform us your required daily capacity, treated quantity, raw material, covering space and related data,so that we can make flow chart production line for you as your requirement. we will stand at your point to suggest low cost and suitable production line for you.

Sincerely want to cooperate with you.

Besides extraction equipment, our company also provide high quality prepressing equipment and fefining equipment with which you can prepress the raw material and refine the crude oil for different standards.

Welcome to contact us.

Palm fruit oil machine | palm kernel oil plant
