Palm Oil Production Equipment

Palm oil production equipment

Palm Fruit Oil Press

The whole process for palm fruit oil press includes palm reception section, sterilizing section, threshing section,  oil press section, clarification section, fibre separator and palm kernel recovery section.

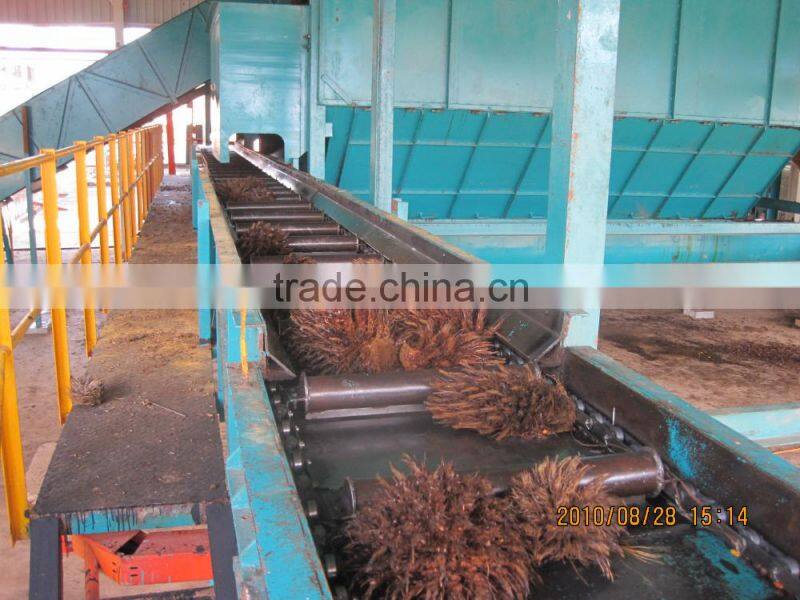

1. Raw materials storage section: Fresh palm fruit bunch must be first measurement recorded by

the pound into the plant, then unloaded to loaded fruit slopes and stored.

2. Sterilizing section: fresh palm fruit bunch are airtight sterilized in sterilizer. The purpose to

prevent enzymes broken down, avoiding FFA content in oil further increase;

3. Threshing section: The purpose of threshing is the oil palm fruit be separated from the fruit bunch through

strong vibration, Threshing equipment is revolving drum thresher.

4.Pressing section: Oil palm fruit first carry out cooking before pressed, fruit sterilized must be re-heating for the soft pulp, and damage pulp cell structure. Then enter into continuous screw press for pressing.

5. Clarification section: Machine pressed crude oil first diluted with water washing, through settlement

and filtration, the fiber material removed from the oil, and then carry out continuous settlement, the whole

divided into two parts: oil and sediment.

6. Fiber separation and palm kernel recovery section: This part is used to separate the fibre from the palm fruit. Then the palm kernel is got. The palm kernel can be used to make palm kernel oil.

The Specification of Crude Palm Oil

The Specification of Refined Palm Oil

 Henan Doing Mechanical Equipment Co., Ltd

We are the leading producer of oil equipment in China. We are specialized in edible oil making machine for 40 years. Our company have special engineers for palm fruit oil press. They are researching and developing the technology.

We have advanced processing equipments and scientific management system. The products have gained many achievements and awards. Our machines have been exported to Congo, Urganda, Uzbekistan, Kazakhstan, Cananda, Chile, Argentina, Ethiopia, Zambia, Nigeria, Russia, Turkey and so on.

 Our Service

1. We have running machine in China. When you visit us, we can show your the running machine.

2. Our warranty is one year. During the first year, we will help you solve any problems of the equipment. After the warranty, we will also give you the technology support.

3. After the machines arrive in your plant, we will send our engineers to install the machines and train you workers.
