Palm Oil Extraction Machine | Palm Oil Milling Machine

1. Introduction

Method of pretreatment and prepress line

Vegetable oil press production line includes two parts, one is pretreatment line, the other is oil seed press machine.

Pretreatment part is used for cleaning and adjusting texture of the materials , it can improve oil yield rate, reducing breakdown of the machines. General speaking, the pretreatment machines include Magnetic drum, Cleaning sieves, Sheller, Crusher, Flaking roll, Cooker, Softening pot , Puffing machine and so on. After pretreatment, the materials will be sent to oil expeller, then the crude oil got. Different materials have different pre-press methods. We usually collocate proper press line according to the customers' materials.

2. The difference of pressing and extraction(leaching):

Squeezing method due to the yield is low, so the raw material for squeezing must be seeds of high oil content, and itself is probably oil crops; Due only to squeeze at the same time, the residual oil in the cake is high, so the modern enterprise in order to save resources, the pursuit of efficiency of cases will be to squeeze the oil cake with leaching rule of oil again

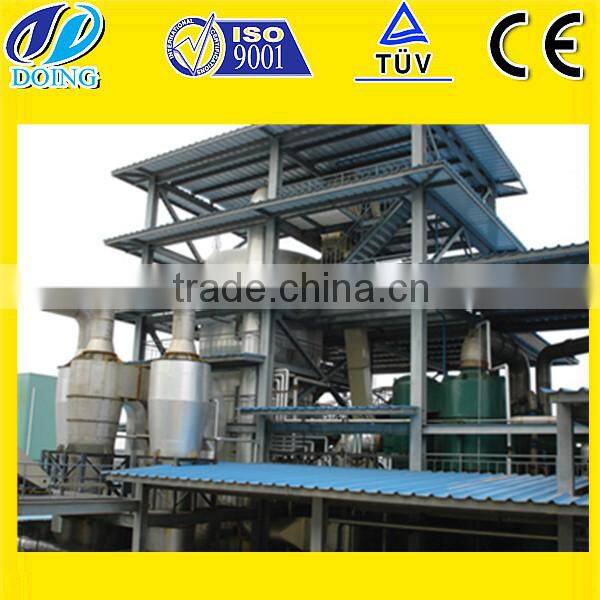

3. Introduction of solvent extraction line

The whole oil extraction machine workshop is selected on the base of safety, reliable, energy-saving, less fault, easy maintenance, and long using life, adopting world advanced technology and equipment to achieve the best process effect.

Process flow:

The material(for pretreatment) is sent to the extractor by the airtight packing auger. The mateiral will be sprayed for extraction by the solvent(Hexance) or mixed oil after they fall into the extractor. The wet dreg(after dripping), falling into the conveyor and be sent to the evapo-separated machine. After steaming, baking and desolventizing, the dreg will be sent to the dreg storehouse. Mixed oil after extraction enters into the first and second long tube evaporator for seperating the steam and solvent, and then flow into the stripping tower for desorption the remaining solvent of crude oil. The extracted oil from the last process will be sent into the crude oil tank for refining plant. The solvent vapors from the extractor, evapo-separated machine, evaporator, stripper tower will be recycled in the cooling system. The solvent after cooling will be collected in the fresh solvent tank for reusing in the process.

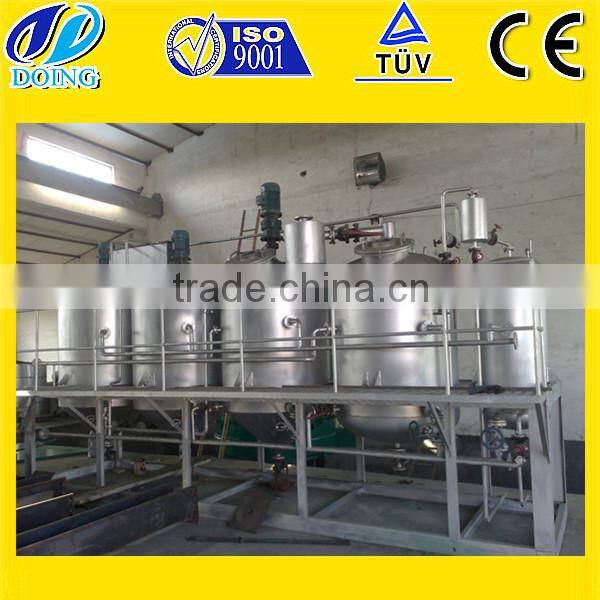

4. Method refining

Our facotry is specialized in crude edible oil refinery machine. We can provide cooking oil refining machine from 1 ton to 600 tons. The popular capacity is mini crude oil refinery from 1-5 tons, small scale oil refinery from 5-20 tons and other oil refinery from 20-600 tons. Our equipment suitable for various edible oil refining machine. For example, rice bran oil refining machine, peanut oil refining/refinery machine, soybean oil refining machine, sunflower oil refining machine and so on. Now our palm oil refinery plant is installing in Congo. Usually the cooking oil refinery includes three parts: deacidification, decolorization and deodorization. For the palm oil refinery, it also need the crude palm oil fractionation part to get higher quality palm oil. In the process of rice bran oil refinery machine, sunflower oil refinery machine and corn germ oil refinery machine, it needs winterization part to move the wax in the crude oil. We can also provide waste cooking oil refining plant.

5. Raw material

6. Biodiesel production line

New tech for recycling used frying oil, waste cooking oil and oil seeds to get biodiesel, the esterification method is a hot and renewable technology of the world.

Biodiesel can be substitute of petroleum oil. The biodiesel is already widely applied as engine fuel in tractor, cars, sedans.

The advantages of bio diesel oil:

1. Green energy sources, environment friendly;

2. Sustainable energy sources, raw material is rich and steady;

3. Widely application and achieve the international standards.

4. It not belongs to dangerous cargo, easy to transport.

5. The supply of bio diesel is not controlled by OPEC, it’s benefit to the stability of   international petroleum market.

What kind of machine can we manufacture?

We have oil seeds pressing machine, oil solvent extraction machine, and cooking oil refinery machine, our seeds oil press/expeller can get cold pressed oil or hot pressed oil from peanut, sunflower seeds, corn germ, cotton seeds, soy bean, rapeseeds and other oil crops; our solvent extraction line can extracte oil from various cakes by solvent(leaching),like soy cake, peanut cake, sunflower cake and others; Our refining machine can help you get refined oil(decoloring oil, degumming oil, deacid oil), 1st to 4st grade cooking oil as your requirements.

  What's our factory's ability, what kind of our machine can do?

We can produce all kinds of cooking oil machinery, which includes palm oil production machine, peanut oil production line, soybean oil, cotton oil, sunflwoer oil, corn oil, rice bran oil and other kinds of edible oil production line.

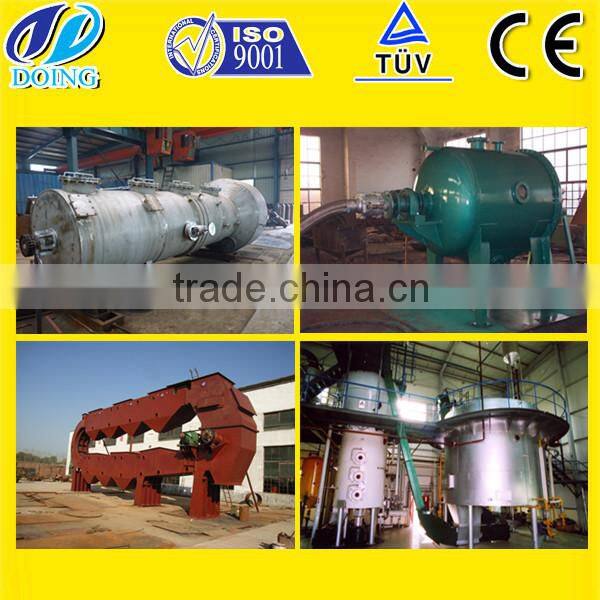

The whole production line includes oil press machine, oil extraction(solvent) machine, oil refining equipment, palm oil fractionation equipment, sunflower oil dewaxing plant, decoloring process machine, deodorization process machine and other machine.

Biodiesel equipment/machines/plant can be manufactured also.

Oil seeds press production line:5-2000MT per 24 hrs .

Solvent extraction production line: 10-1000MT per 24 hrs.

Edible oil refinery production line : 1-600MT per 24 hrs.

Biodiesel production line: 1-600MT per 24 hrs.

The biodiesel machine can produce International standard biodiesel, like  EN14214 standard,  ASTM 6751-03 standard,  DIN V 51606 standard.

  Why always choose Doing?

A.More than 20 years manufacturing experience.

B.26 technical engineers research on new efficient processing craft and instruct manufacturing and installation work.

C.76 technicians professional installation team with rich and mature installation and training  experience.

D. CE & ISO9001&BV&TUV certificate

If you are interested in our service and products, please feel free to contact me.

Palm oil extraction machine | palm oil milling machine
