AD3020 Super Beam 330

AD3020 Super Beam 330 thumbnail-1
AD3020 Super Beam 330 thumbnail-2
AD3020 Super Beam 330 thumbnail-3
AD3020 Super Beam 330 photo-1
AD3020 Super Beam 330 photo-2
AD3020 Super Beam 330 photo-3
US$ 800 - 900 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Light Source:
Halogen Bulbs
Input Voltage(V):
AC110-260 /50-60hz
Lamp Power(W):
355
Contact Supplier Request Quote Chat Now
Guangzhou DAGE Stage Lighting Master Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HUANGPU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Light Source Halogen Bulbs
Input Voltage(V) AC110-260 /50-60hz
Lamp Power(W) 355
Lamp Luminous Flux(lm) 8850
Lamp Luminous Efficiency(lm/w) 45
Color Temperature(CCT) Other, 7500K
Working Temperature(℃) -30, 40
Working Lifetime(Hour) 2000
IP Rating Other, ip20
Certification CCC, CE
Emitting Color Other, 14 color+Open
Place of Origin Guangdong, China
Brand Name DAGE
Model Number AD-3020

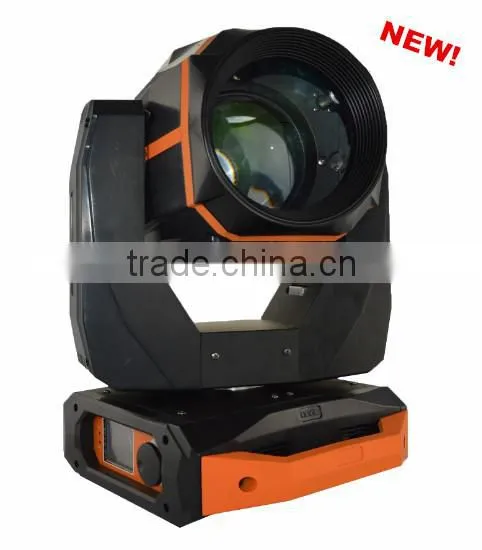

AD-3020 Optimus Prime

Technical Parameters

1)Model:3020 BEAM 15R

2)Voltage:AC110-240V,50-60HZ

3)Lamp:Philips 15R 300W UPH Lamp

4)Total power:400W (constantly current power suppliers)

5)Lamp average life:1500 Hours



6)Color temperature:8000K

7)Insurance:220V/8A

8)Dmx Channel: 20 DMX512 channels

9)Control mode:DMX512, master-slave, Auto

10)Color Wheel:14 color plus Open

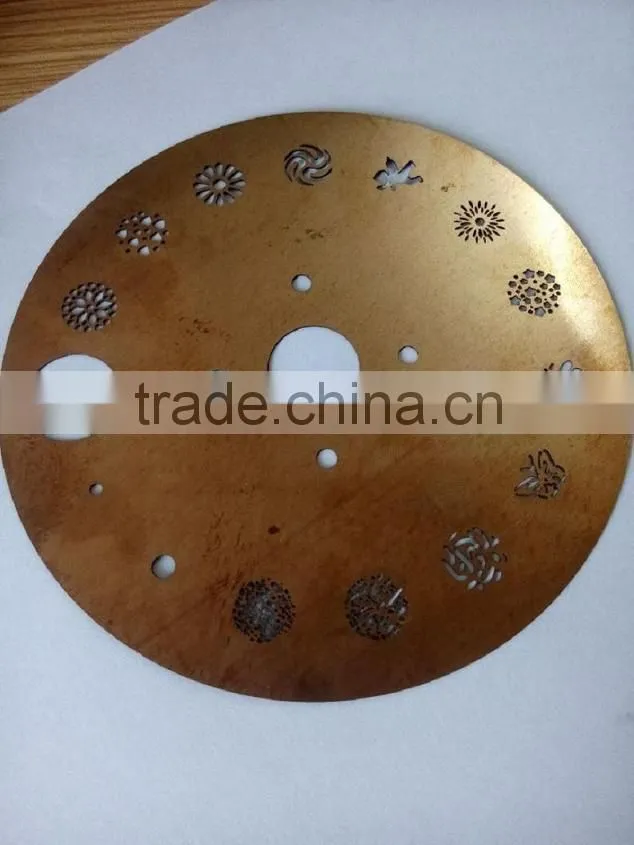

11)Gobo Wheel: 2 gobo wheel:

1 Rotating gobo wheel 7 gobos all interchangeable.

1 fixed gobo wheel 14 static gobo

12)Prism:Independent 8 facet prism,16 facet prism,24 facet prism

13)13)Motor: X axis and Y axis using 3 facet Motor,other parts using 2 facet Motor.

14)Dimmer:0-100% electronic linear dimmer

15)Frost:basic frost effects



16)Strobe:double shutter blade,Variable from 0-14T/S

17)Beam &Frost angle:3.5-40 degree,Beam and frost application

18)Linear Focus

19)Head Movement:Pan 540 Degree (8/16bit), Tilt 260 Degree(8/16bit)

20)Display:Large touch screen

21)DMX Connection:3PIN XLR AND 5PIN XLR

22)Protect grade:IP20



23)Product size:300*348*545cm

24)Gross weight per piece:17.5KG

25)Flight case(2 in 1):92*47*82cm

26)Flight case(1 in 1):80x47x52cmcm

27)Carton packing(1 in 1):47x50x64cm

28):Moq:2 units

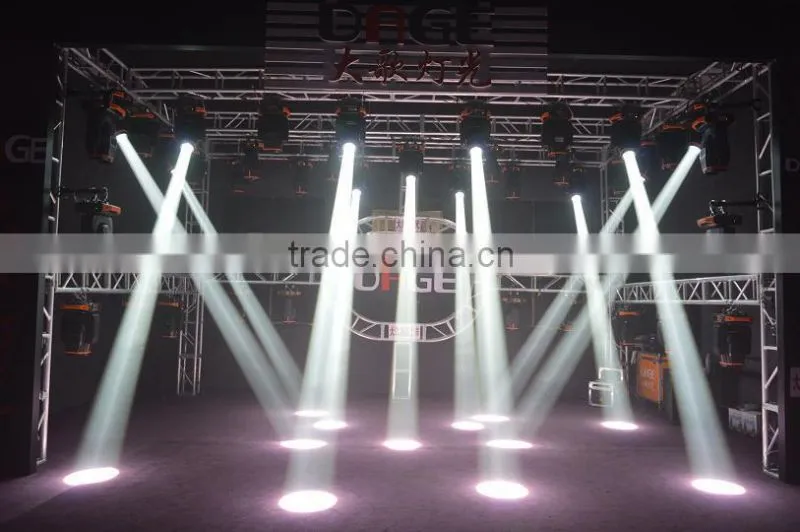

AD3020 Super beam 330









AD3020 Super beam 330
AD3020 Super beam 330AD3020 Super beam 330



Video and Contact:



https://youtu.be/nBcWAlFOn40

https://youtu.be/UgOvXHw5FB8



DAGE Stage Lighting Master Co., Ltd

april@dageli



SKYPE:aprilling1987



Mobile:+86 137 1943 4200

+86 158 7532 5795(wechat/whatsapp)



/aprilling1987





 AD3020 Super beam 330AD3020 Super beam 330AD3020 Super beam 330

AD3020 Super beam 330AD3020 Super beam 330AD3020 Super beam 330AD3020 Super beam 330AD3020 Super beam 330
