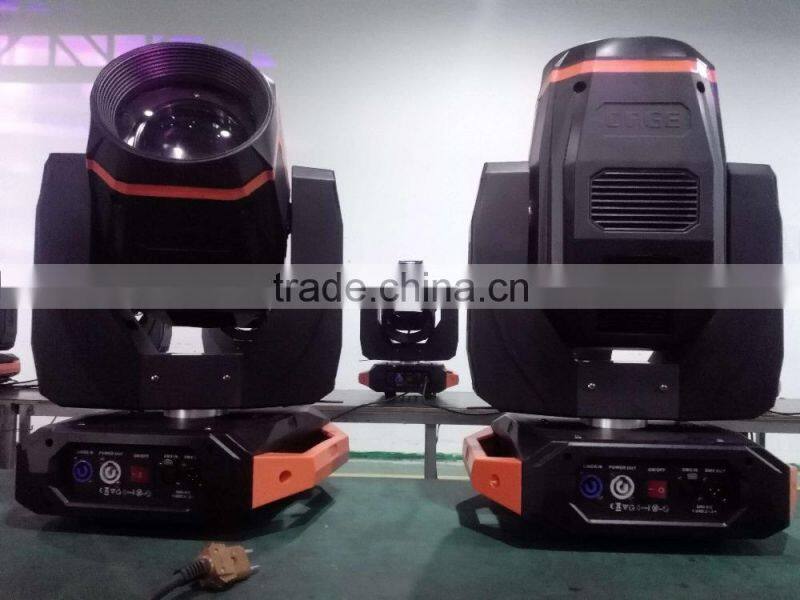

Super beam 2015! DAGE AD-3320 330W 15R sharpy beam moving head light
Main features:
Unique casing design, the most sharpliest, stronggest and high brightness beam in the market
YODN 330W 15R
Output lens’ diameter up to 152MM
Beam angle 2-60° (Including the prism and frost) in 4.6° the beam effect is the best
independent 8, 24,32 facet prism ( combine with gobo can fantastic 8, 16, 24,32,40, 48 facet prism)
14 color+open
2 gobo wheels (1. 14 fixed gobo+open, 2. 8 rotating gobo+open, replaceable gobo),the gobo can not be enlarged.
DMX 20CH, LCD touch display
High speed strobe 0-14/sec.
Pan 540°16/32 bit / Tilt 260°16/32 bit
With sleep mode function
Video links:
OPTITCAL SYSTEM |
YODN 330W 15R ,Italian heat-protecting glass,Optical lens dia. 152mm. Beam angle 2-60° (Including the prism and frost), Electronic focusing |
DISPLAY SYSTEM |
Display mode 16 million pixel LCD touch screen,sleep mode function Lamp’s life & device using time is displayable. with Automatic error tested function |
|
CONTROL SYSTEM |
IDMX512, 20 CH.DMX , random , auto, voice and sleep mode. High-tech constant current board, 36V / 12V voltage. Built-in high -quality magnetic components ensure stable signal transmission. |
| DATA INTERFACE |
1. 3-pin male and female connector. 2. 3-pin combine 5-pin male and female connectors. |
POWER SYSTEM |
480w, (± 50W) works normally.AC110-240V/50-60HZ. High-tech constant current power board, first-class brand PCB components |
POWER INTERFACE |
1. Three-pin male and female data interface, dual hand in hand power interface 2. Three-pin and five-pin male and female data interface, one single power connector. |
STROBE SYSTEN |
Independent double shutter device, 0-14 times / s 0-100% linear dimming. The lamp power is automatically reduced by 40% when it turn off in 5 seconds Remote control switch and boot light function for bulb, default as remote control. |
COLOR SYSTEM |
Imported Italian specialty high temperature materials, Germany's high-tech coating technology. 14 colors+open. Semi- color , full-color , single-color gradients, changeable fast forward and reverse direction rotating rainbow effect. Automatic error correction at any angle with hall, magnet positioned. |
GOBO SYSTEM |
14 metal gobos + open, adjustable beam angle, enabling water, shake, slow-fast rotation effect. 8 rotating gobos+open, rotation angle can be adjusted. |
FROST SYSTEM |
Frost setting: Independent single-sided high penetration frost lens. Frost effects: Various changes of frost effects. Frost angle: The largest is 40° |
PRISM SYSTEM |
Prism Material: Italian heat-protecting glass. Germany's high-tech coating technology. Prism structure: Three independent prism design.8/24/32 facet prism. ( combine with gobo can fantastic 8,16,24,32,40,48 facet prism effect) Prism effects: Rotating angle is adjustable. The largest prism angle is 60°. |
COOLING SYSTEM |
Lamps materials: Excellent aluminum material, good heat dissipation and light weight. Fan Qty: 7pcs Thermal protection: Built-in overheating protection |
ROTATION SYSTEM |
XY motor: Fast and quiet 3-phase motor. XY position: Encoder& Hall components position and advanced scanning memory function. Pan:540°(16/32 bit), Tilt 270 °(16/32 bit), |
DEMENSION |
Body size: 308x360x550 mm N.W: 17 kg |

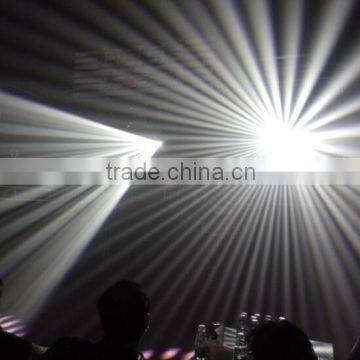

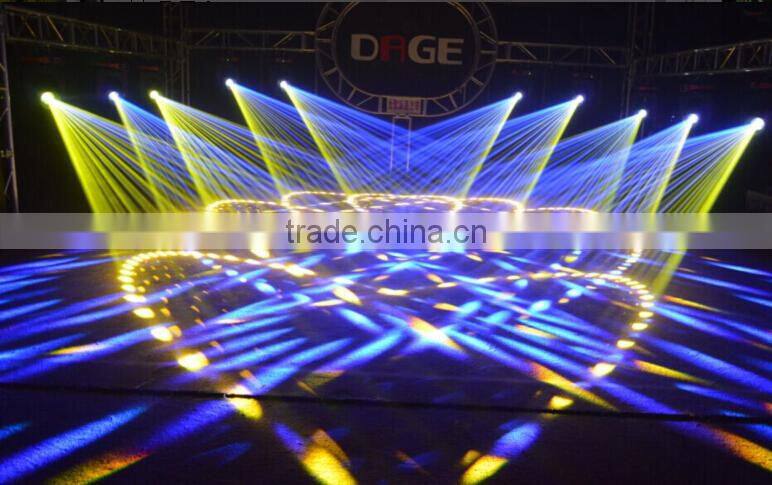

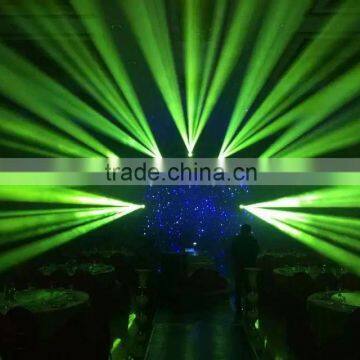

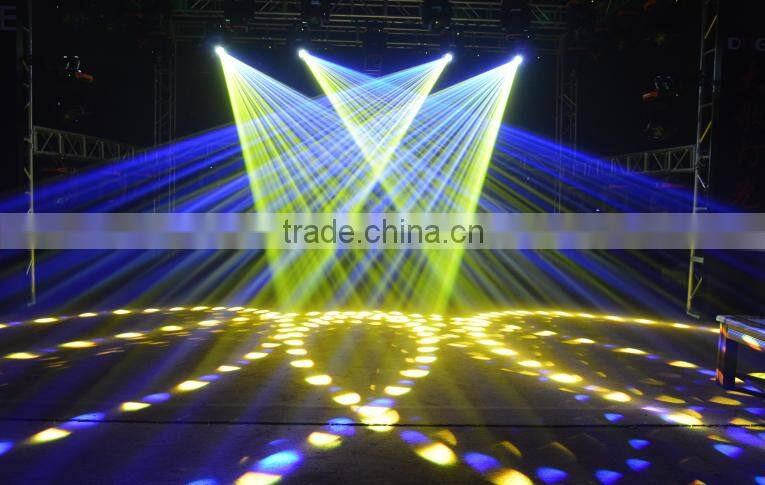

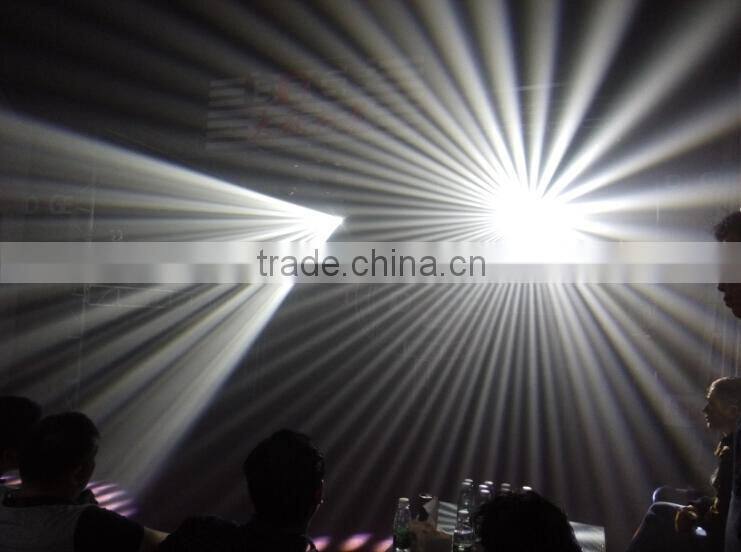

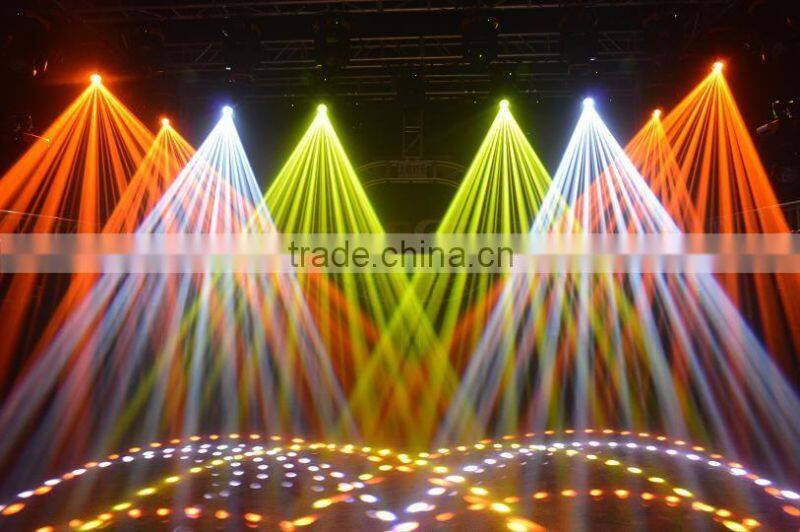

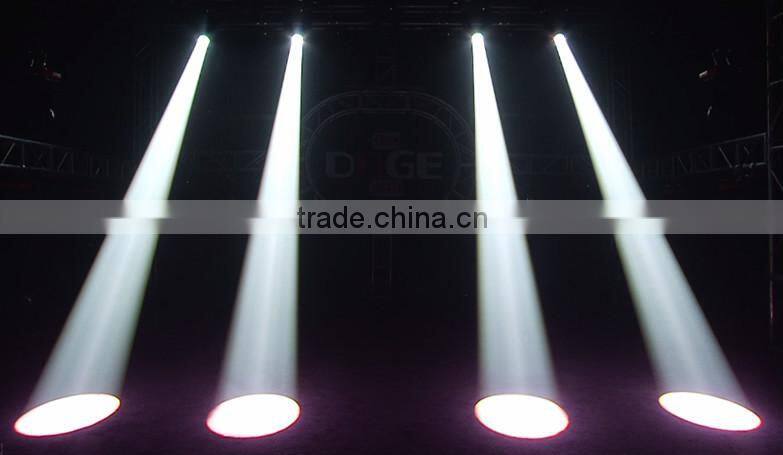

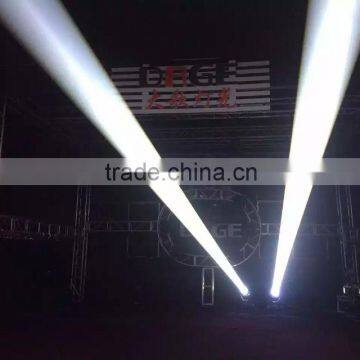

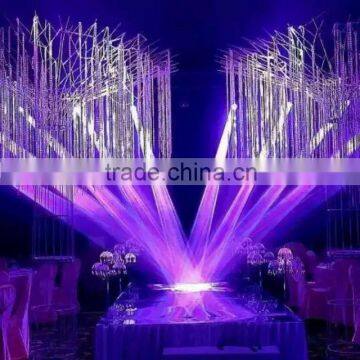

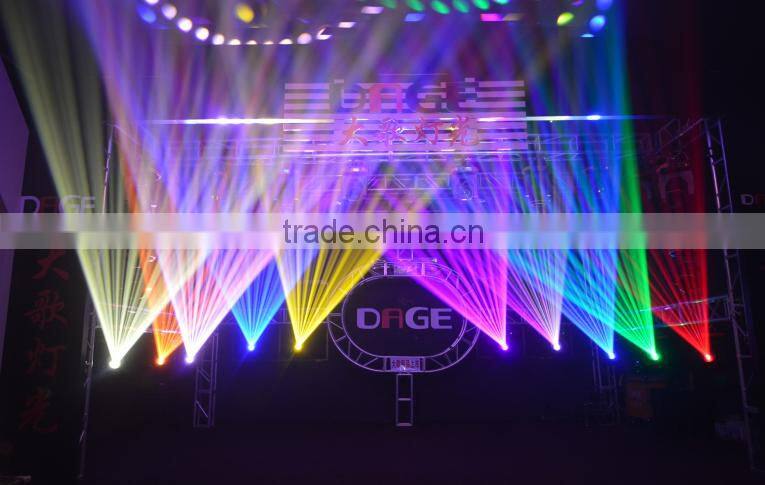

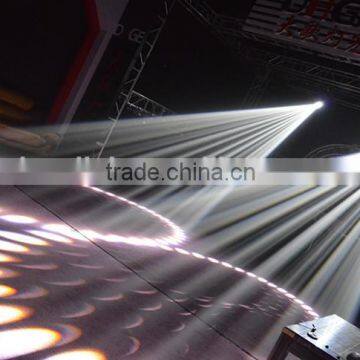

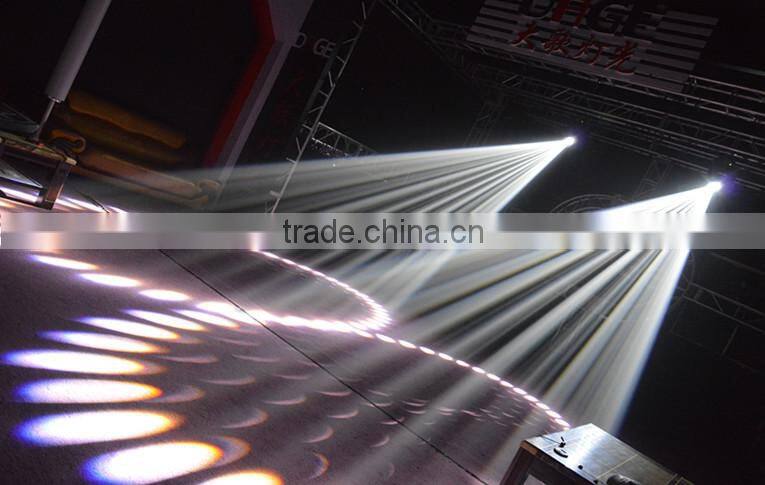

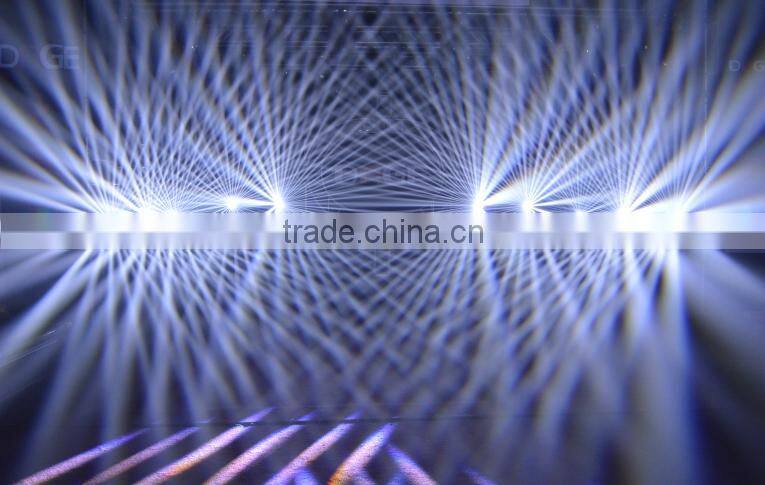

Effect photos:

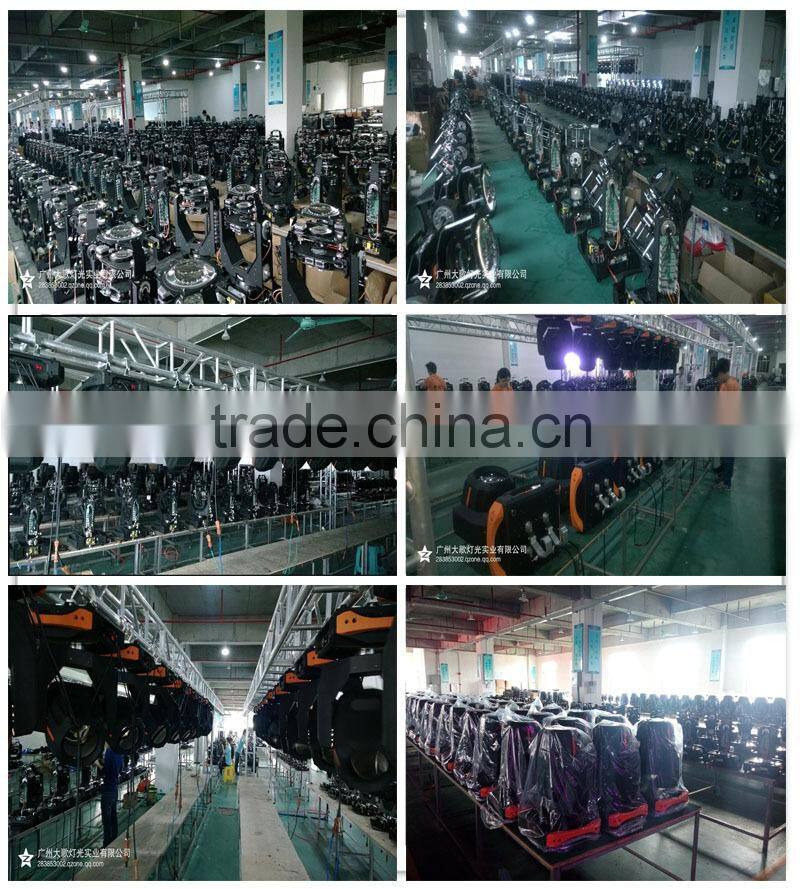

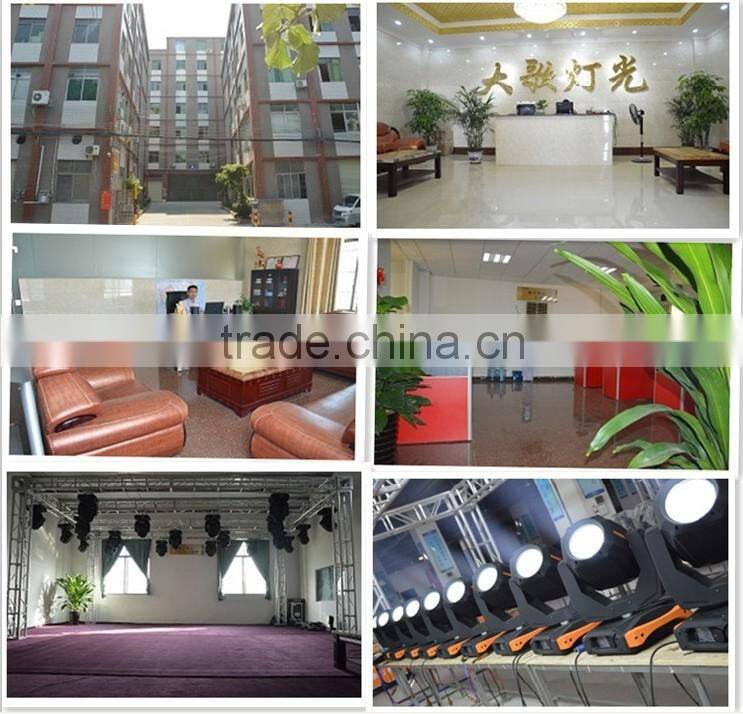

About DAGE:
DAGE Stage Lighting Master Co., Ltd was founded in 2006, it’s a significant, high-tech enterprise which specialized in researching and developing moving head stage lights. Our latest products Transformers family series as following:
Deceptions (15R beam/spot/wash moving head), Optimums Prime (15R beam moving head), 15R Sky-touch beam,
Megaton (7R beam moving head), 1000W 50R spot moving head and LED stage lighting series. For more than 8 years experience, we supply superior quality moving head lights for our customers from all over the world and got very high praise from them.FIRST-CLASS PRODUCTS, TOP 5 IN CHINA!
