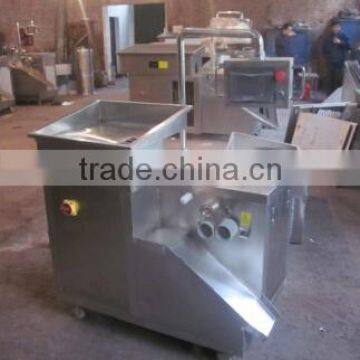

Pellet Machine (YUJ) (Pill Making Machine)
US$ 8,000 - 35,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Gansu, China
Brand Name:
HuaYuan
Model Number:
YUJ
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Highly-Efficientand Full-Automatic Catalyst Ball Equipment (YUJ-22A\B) /Alice +8618910671509US$ 8,000 - 35,000MOQ: 1 Unit -
Highly-Efficientand Full-Automatic Desiccant Granulator Making Machine (YUJ-22A\B) /Alice +8618910671509US$ 8,000 - 35,000MOQ: 1 Unit
-
Highly-Efficientand Full-Automatic Molecular Sieve Desiccant Granulator Making Machine (YUJ-22A\B) /Alice +8618910671509US$ 8,000 - 35,000MOQ: 1 Unit
-
Highly-Efficientand Full-Automatic Molecular Sieve Desiccant Making Machine (YUJ-22A\B) /Alice +8618910671509US$ 8,000 - 35,000MOQ: 1 Unit
-
Highly-Efficientand Full-Automatic Big Honeyed Bolus Making Machine (YUJ-22A\B) /Alice +8618910671509US$ 8,000 - 35,000MOQ: 1 Unit
Place of Origin
Gansu, China
Brand Name
HuaYuan
Model Number
YUJ
Application
Granules
Type
Granulator
After-sales Service Provided
Engineers available to service machinery overseas
Main Application:
This machine is a large device of making Chinese traditional medicine pills. It is specialized in making pills of 1g~11g, such as watered pill, water-honey bolus, honeyed bolus, condensed pill and Tibetan medical pill etc., which are also called big honeyed boluses. As there are more clients producing pure honeyed boluses, it is mainly designed to make those big honeyed boluses whose proportion is 1: 0.9-1.3.
Operating principles:
Its operating principles are similar to series Model 16 and Model 17 making-pill machinery. However, there are some special designs on several parts, e. G. Speed control of strip outlet, rubbing-pill and oil sprinkling etc. As a result, it improves some shortcomings in the production of big honeyed bolus, such as ill deviation of pills, hard-to-control, unsteadiness, over-many operating persons, not round shape etc. Indeed, it is an ideal product to replace the traditional one and it has been used by many clients with a good result. There are two kinds of choice, manual or PLC control. And their modes and principles are basically same.
Structural features:
1. This machine adopts high technologies such as PLC programmable controller and encoder etc. And thus it is highly automatic. AC inverter which is completely imported is adopted for the driving parts. Touch screen can be used for man-machine interaction and its operation is very easy. 2. It is equipped with two sets of screw extruder, one is for drug refining and the other is for pill making. It can either be used as an organic whole or be operated solely. It is adaptable to medicines and thus it can meet the production of every kind of medical pills. Besides, it can process drug refining and pill making solely. 3. The machine body is frame-based. Besides its exterior, the places where it touches with medicinal materials are all made of the stainless steel and there is no blind corner on the working surface. It has good seal and it can be easily disassembled and cleared up. It accords with the GMP certification standard.
This machine is a large device of making Chinese traditional medicine pills. It is specialized in making pills of 1g~11g, such as watered pill, water-honey bolus, honeyed bolus, condensed pill and Tibetan medical pill etc., which are also called big honeyed boluses. As there are more clients producing pure honeyed boluses, it is mainly designed to make those big honeyed boluses whose proportion is 1: 0.9-1.3.
Operating principles:
Its operating principles are similar to series Model 16 and Model 17 making-pill machinery. However, there are some special designs on several parts, e. G. Speed control of strip outlet, rubbing-pill and oil sprinkling etc. As a result, it improves some shortcomings in the production of big honeyed bolus, such as ill deviation of pills, hard-to-control, unsteadiness, over-many operating persons, not round shape etc. Indeed, it is an ideal product to replace the traditional one and it has been used by many clients with a good result. There are two kinds of choice, manual or PLC control. And their modes and principles are basically same.
Structural features:
1. This machine adopts high technologies such as PLC programmable controller and encoder etc. And thus it is highly automatic. AC inverter which is completely imported is adopted for the driving parts. Touch screen can be used for man-machine interaction and its operation is very easy. 2. It is equipped with two sets of screw extruder, one is for drug refining and the other is for pill making. It can either be used as an organic whole or be operated solely. It is adaptable to medicines and thus it can meet the production of every kind of medical pills. Besides, it can process drug refining and pill making solely. 3. The machine body is frame-based. Besides its exterior, the places where it touches with medicinal materials are all made of the stainless steel and there is no blind corner on the working surface. It has good seal and it can be easily disassembled and cleared up. It accords with the GMP certification standard.
| No. | Name | Model | Specification (mm) |
Productivity (kg/h) |
Motor Power (kw) | Weight | External Dimension (L*W*H) | Remarks |
| 1 | Fully-Automatic & Controlling Speed Traditional Chinese Medical Making-Pill Machine | YUJ-16A | Φ 3-Φ 12 | 5-50 | 4 | 500 | 1250x750x1100 | No Touch Screen |
| 2 | Fully-Automatic & Controlling Speed Traditional Chinese Medical Making-Pill Machine | YUJ-16B | Φ 3-Φ 12 | 5-50 | 4 | 500 | 1250x750x1100 | With Touch Screen |
| 3 | Fully-Automatic & Controlling Speed Traditional Chinese Medical Making-Pill Machine | YUJ-16C | 3-6g | 5-50 | 4 | 500 | 1300x750x1100 | Mini Honeyed Bolus Making Machine |
| 4 | Fully-Automatic & Controlling Speed Traditional Chinese Medical Making-Pill Machine | YUJ-17A | Φ 3-Φ 12 | 20-180 | 7.2 | 750 | 1570x920x1350 | No Touch Screen |
| 5 | Fully-Automatic & Controlling Speed Traditional Chinese Medical Making-Pill Machine | YUJ-17B | Φ 3-Φ 12 | 20-180 | 7.35 | 750 | 1570x920x1540 | With Touch Screen |
| 6 | Fully-Automatic & Controlling Speed Traditional Chinese Medical Making-Pill Machine | YUJ-17BZ | Φ 3-Φ 12 | 20-180 | 9.35 | 750 | 1950x990x1540 | With Touch Screen |
| 7 | Highly-Efficient and Fully-Automatic Pellets Making Machine | YUJ-17A-G | Φ 1.5-Φ 12 | 20-180 | 7.2 | 750 | 1570x920x1350 | Pellets Making Machine |
| 8 | Intelligent and Efficient Fully-Automatic Pellets Making Machine | YUJ-17B-G | Φ 1.5-Φ 12 | 20-180 | 7.35 | 750 | 1570x920x1350 | Pellets Making Machine |
| 9 | Intelligent and Efficient Fully-Automatic Pellets Making Machine | YUJ-17BZ-G | Φ 1.5-Φ 12 | 20-180 | 9.35 | 750 | 1950x990x1540 | Direct-coupled |
| 10 | Highly-Efficient Refining-Drug and Making-Pill Machine | YUJ-17BL | Φ 3-Φ 12 | 20-180 | 12.85 | 1200 | 2140x990x1520 | Patented |
| 11 | Highly-Efficient and Fully-Automatic Pills Making Machine | YUJ-22A | 1g-11g | 40-180 | 7.35 | 850 | 1800x920x1500 | No Touch Screen, Big Honeyed Bolus |
| 12 | Highly-Efficient and Fully-Automatic Pills Making Machine | YUJ-22B | 1g-11g | 40-180 | 7.35 | 850 | 1800x920x1500 | With Touch Screen, Big Honeyed Bolus |
| 13 | Highly-Efficient and Fully-Automatic Pills Making Machine | YUJ-18BZ | Φ 3-Φ 12 | 20-300 | 9.7 | 800 | 2100x990x1675 | With Touch Screen |
