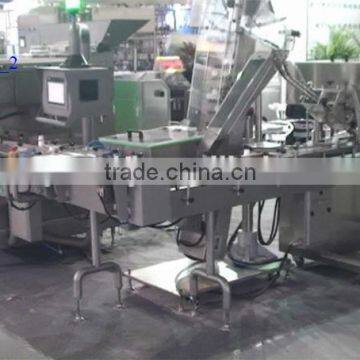

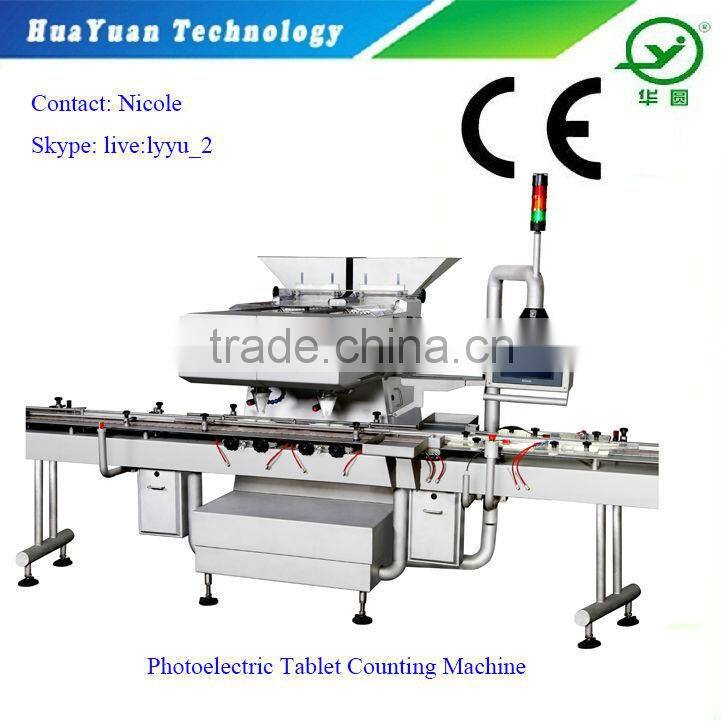

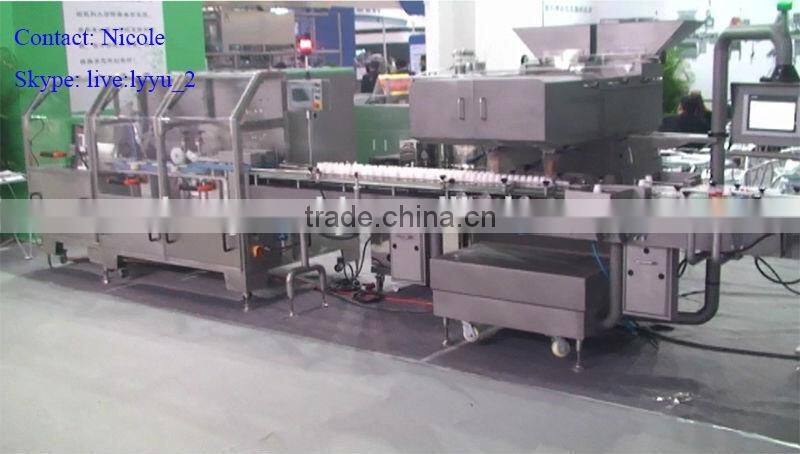

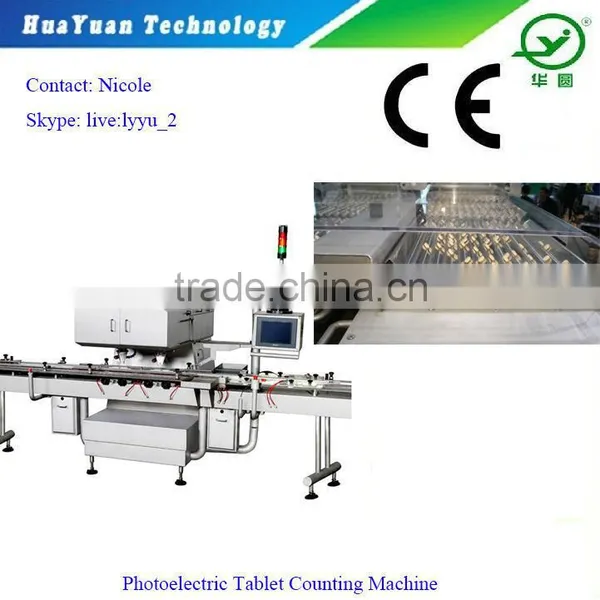

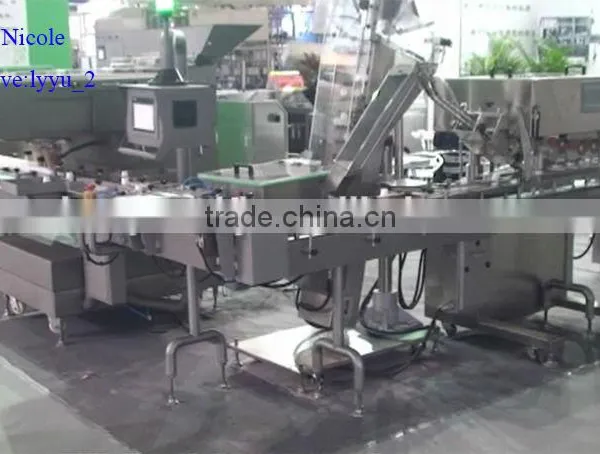

Pill Counting Device / Tablet Counting Machine
Pill Counting Device / Tablet Counting Machine is mainly used for pill, soft hardcapsule, plain sheet, sugar and other shapeMaterial count of filling in medicine, food, chemical and other industries packaging line tablet. The grain diameter from φ 2.0mm to φ 30.0mm.

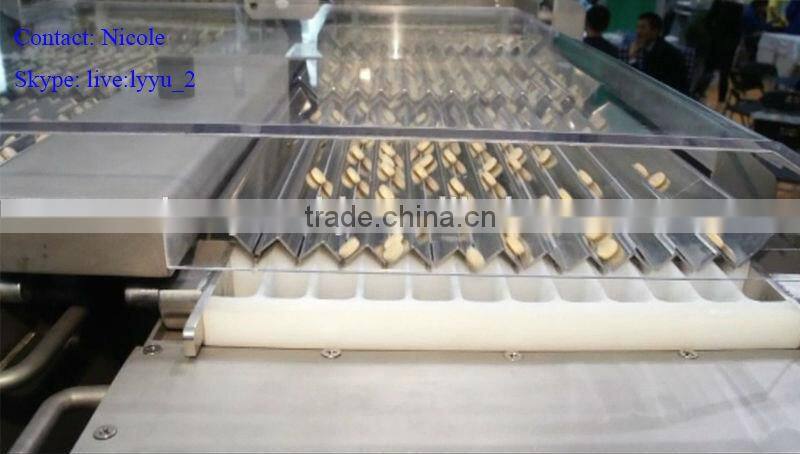

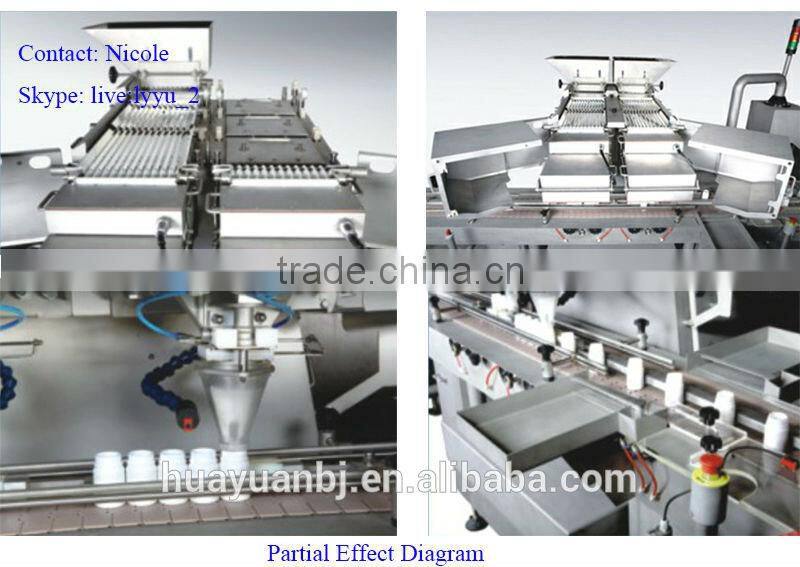

1.Easy clean and remove.Medicine grain flow track perfect level design, which is no power produced and no overlap tablet.
2.Medicine grain of detection design,the medicine flow is not touch the 3D electric eye and not shield it, once the 3D electric eye is shielded, the controlling screen is showed and stop machine automatically.

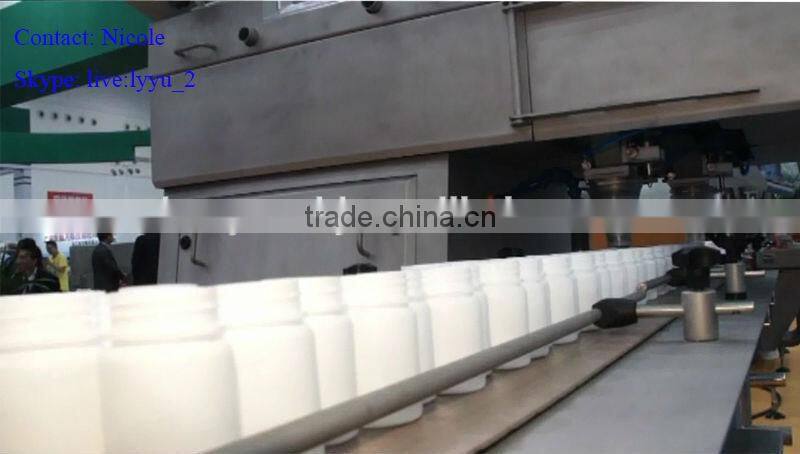

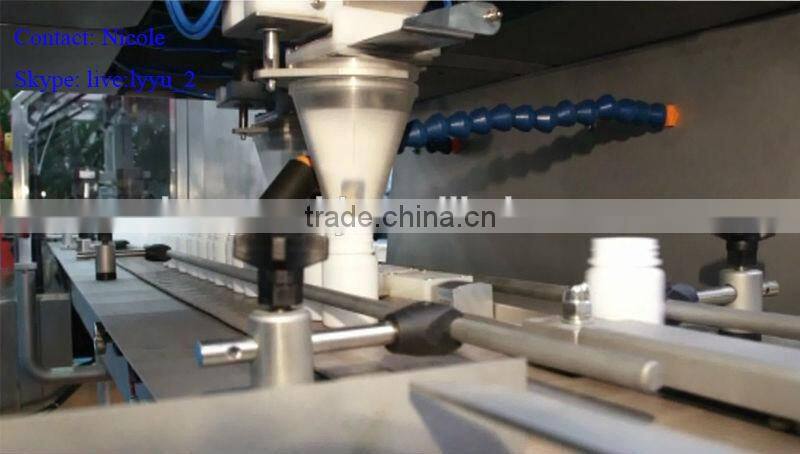

3.Each track can be set counting number, it can less than 12 pics. Counting in advance. Remove the problem filled bottle automatically, the industry computer test the count.
4.High counting accuracy, the above charterers can ensure 100% accuracy. Problem bottle detect system ,vibrate frequency can be adjustable.
Item style |
12 rail |
24 rail |
|
The highest speed |
7200 pics/min |
14400 pics/min |
|
Filling quantity each bottle |
3-1000 pics |
3-1000 pics |
|
Commonly used style |
Pills, tablets, soft hard capsule and other curing medicine granule |
||
Drug specification |
φ3~φ20mm Pills, tablets, soft hard capsule and other curing medicine granule |
||
Bottle diameter |
φ20~φ100mm |
||
Bottle highth |
40~240mm |
||
Power source |
220V-50/60Hz |
||
Compressed air |
0.5~0.6MPa |
||
Total power |
1.5 Kw |
2.2Kw |
|
overall dimension |
1360*1700*2000mm |
1760*1800*2000mm |
|
Total weight |
580kg |
960kg |
|
