Specifications

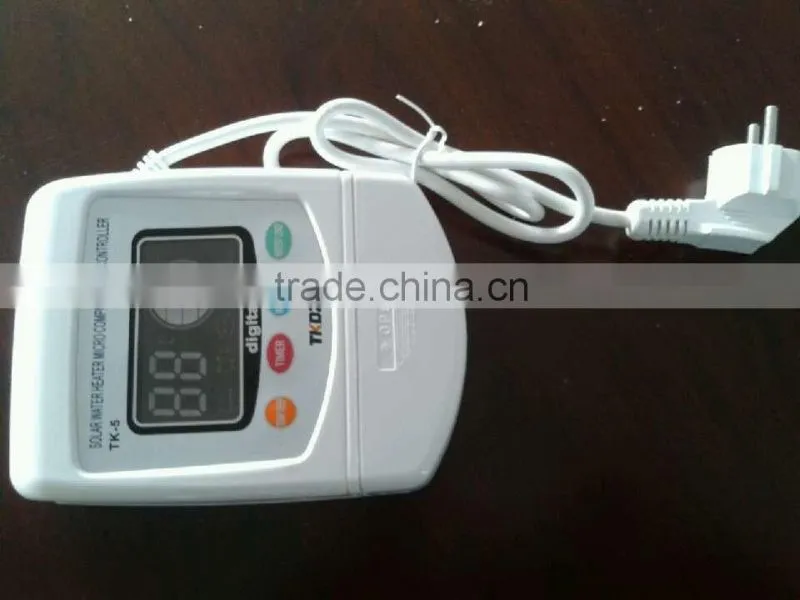

Non-pressurized Intelligent controller1. Automatically control temperature of hot water in no-pressurized solar water heater
Non-pressurized Intelligent controller
|
Introduce Non-pressurized Intelligent controller Suitable for integrated non-pressurized solar system |
|

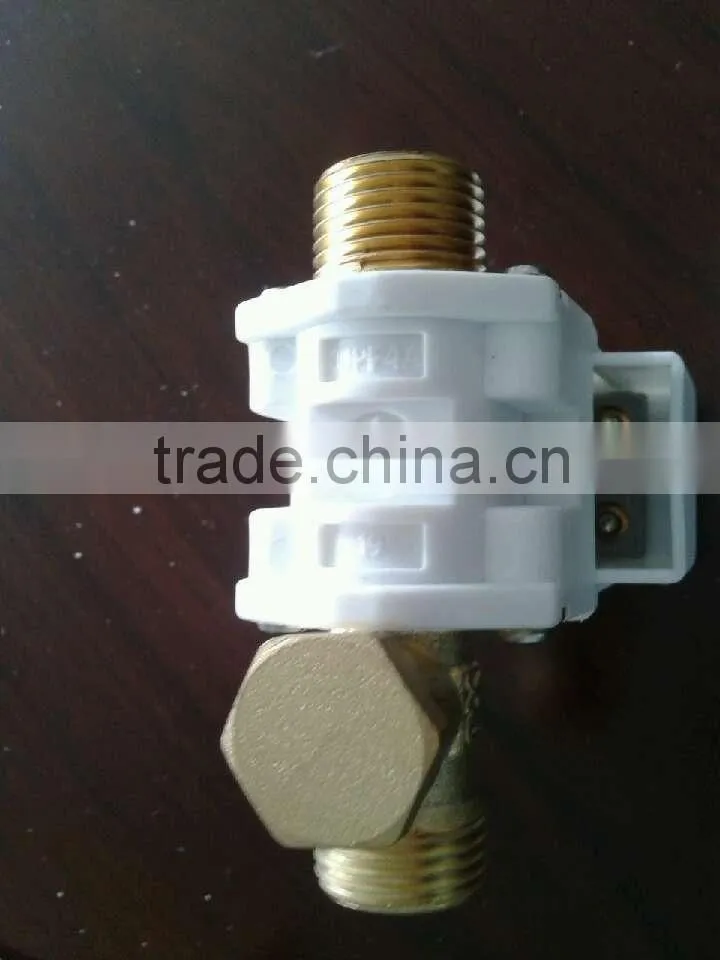

Main technical data 1.Dimension: 170mmX125mmX50mm 2.Self power consumption: <5W 3.Measuring accuracy of temperature: ±2°C 4.Temperature range of measurement: 0-99°C 5.Maximum power of controlled pump/ electrical heating wire: ≤500W 6.Electromagnetic valve parameter: DC 12V, AC 220V, 7. Pressurized valve and un-pressurized valve are available for selection. a.)operation pressure of pressurized valve: 0.02Mpa ~ 0.8Mpa, suitable for providing water directly b.)operation pressure of un-pressurized valve: 0.0Mpa, connected with water tank or low pressure water providing |
|
Main functions
1. Self-detection at startup 2. Water temperature display 3. Water level display 4. Water level pre-set 5. Insufficient water alert 6. Auto water loading
7. Manful water loading
8. Compulsive water loading
9. Low pressure water loading
10. Timing water loading
11. Temperature controlled water loading
12. Automatic pressure boosting
|
