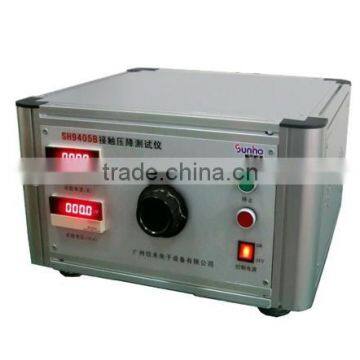

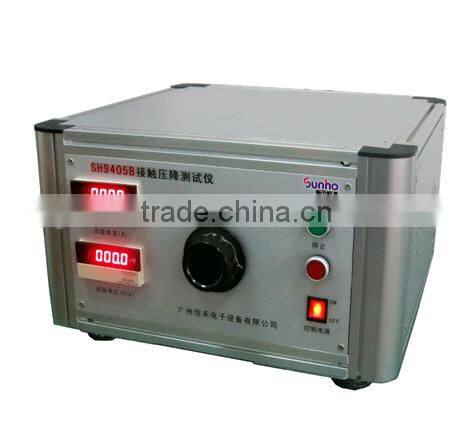

Contact pressure dropping measurement instrument
- 30 Set / Sets per Month
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Sunho | |
| Model Number | SH9405 | Power | Electronic | |
| Usage | Bending Testing Machine |
Product Description
It is designed according to the relevant requirements of GB2099-96 corresponding provisions, used to test the contact pressure drop of the sockets which has no screw terminals and Not Unraveling power plugs after it do the bending test, to measure the contact pressure drop of the terminals.
Technical characteristics
l The power supply voltage:AC220V±10%,50Hz
l The test current: AC 1~100A
l Pressure drop measurement range: 0~199.9±1mv.
l The environment temperature: +5°C ~ +40°C
l Size (width×height×depth): 420mm×160mm×360mm
