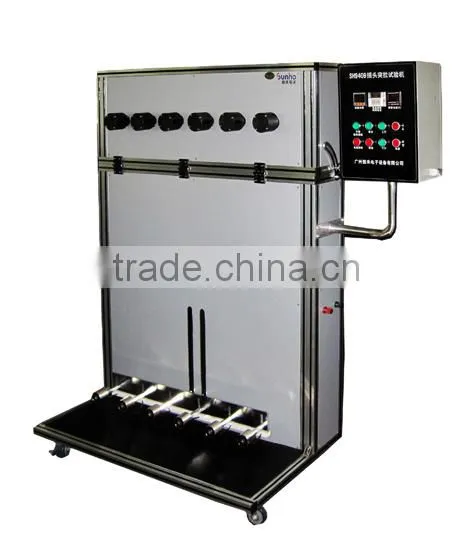

Help CenterSudden Pull Tester for UL 817
Related Products
-
Multifunctional Temperature Heating TesterNegotiableMOQ: 1 Set -
Coupling Apparatus Strength Tester for IEC60320NegotiableMOQ: 1 Set
-
Multifunctional Pull Out Strength TesterNegotiableMOQ: 1 Set
-
Contact Pressure Dropping Measurement InstrumentNegotiableMOQ: 1 Set
-
Low Temperature Switch Life TesterNegotiableMOQ: 1 Set
It is designed according to the relevant standard requirements of section 90 and 91 provisions in the UL-817
.
l Mainly use to assess the insert film of the model power sockets and the connection strength between the lead line and the resistant sudden pull strength, also to go for the maintain force test of the Power lines sheathing.
Technical characteristics
Power supply: AC 220V, 50HZ , 10A
Load current: AC 6-12V ,0-40A adjustable, the accuracy is 1.5 class.
The put through time: Can adjustable from 0 to 99 min.
The sudden pull height: 254mm (three core line 10 "), 178 mm (two core line 7"), has a total of two stalls.
Sudden pull times: Can adjust from 0 to 9999 times.
Poise: The Sudden pull poise-2.5Lb Have six entries.
The rotating weight -3Lb 6; Have six entries.
The load weight -15Lb Have six entries.
Size: 1000×1470×650(mm)
