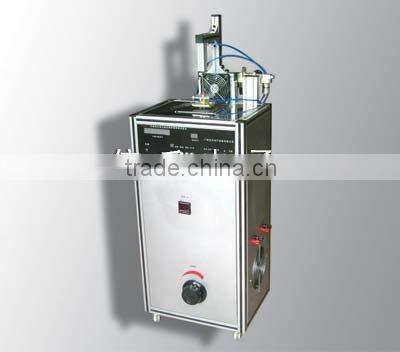

Over Temperature Protector Life Test Table

1.Overview:

This equipment is the over temperature protection implement for the life test equipment,use the heat plate method to heating and wind cooling method to realize. Each station is able to independently count and distinguish the faults , temperature control accuracy can reached to ± 0.5 ° C .Can used to the test of the temperature characteristics or aging of the 50 to 200 ° C temperature controller products The equipment is composed by the machine frame, the heating plates and the computer (JMP) components.

Can be used to all type specifications products of automatic restore or not automatic restore.

Can option computer automatic control detection, and also can choose intelligent controller for the test.

2. Technical indicators:

2.1.              Power supply voltage: one phrase AC220V.

2.2.             The power of the equipment: 3KVA.

2.3.             Temperature measuring range : at room temperature to 200(° C)

2.4.    Temperature measurement accuracy: ± 0.5 ° C.

2.5.    Pure resistance load: current<10A, power< 2.5KW

2.6.             Test load: there are three routes (corresponds to a station)

2.7.         Life test range: 0~999999 (times)

2.8.          The put through time: 1~15(s)

2.9.             The disconnection time: 1~15(s)

2.10.        The use of environmental temperature: 15-40 (C)

2.11.        The use of environmental humidity: less than 80% (RH)

2.12.        Economy outline size: Length×width× height=800×500×1200

2.13.  Station number: There are three. (Can make according to the requirements)
