Home > Products > SH3300 Lamps performance testing equipment Series > Defense wind test device
Defense wind test device
- 30 Set / Sets per Month
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Sunho | |
| Model Number | SH3301B | Power | Electronic | |
| Usage | Other |
Product Description
It is designed according to 12.4.1 in the IEC60598 and relevant requirements of annex D.
Mainly used for simulate the testing heat lamps performance..
Technical parameters

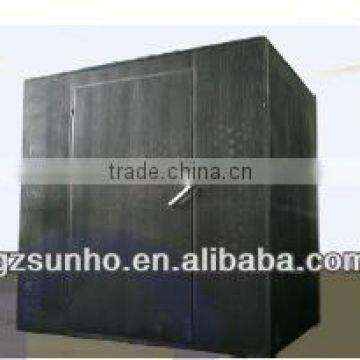

l The draught-proof enclosure is rectangular, with a double skin on top and on at least three sides, and with a solid base. The double skins are of perforated metal, spaced approximately 150mm apart, with regular perforations of 1mm to 2mm diameter, occupying about 40% of the whole area of each skin.
l Four sides of the box is detachable, inside the test chamber is the dumb light black box. The appearance is generosity
l With removable and adjustable tubular lamp (G13), the removable circular lamp holder. Each type has one entries. Total have 15 Nylon Sling (14 had installed inside the test chamber, the other one is for reserve. One socket and a hold of Hexagon wrench(5#)
l Installed one of the socket under the left corner of the tester, it is for the customer to connect to the power.
l The internal surface is paint.
l Inside the test chamber is the Yaguang black box;
l The size of the outer box is about 1.5m * 2m*2 mm (height x width x depth)
l Four sides of the box is detachable
Not including the temperature recording devices and thermocouple
