Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > 5hp Diesel Engine Water Pump Set

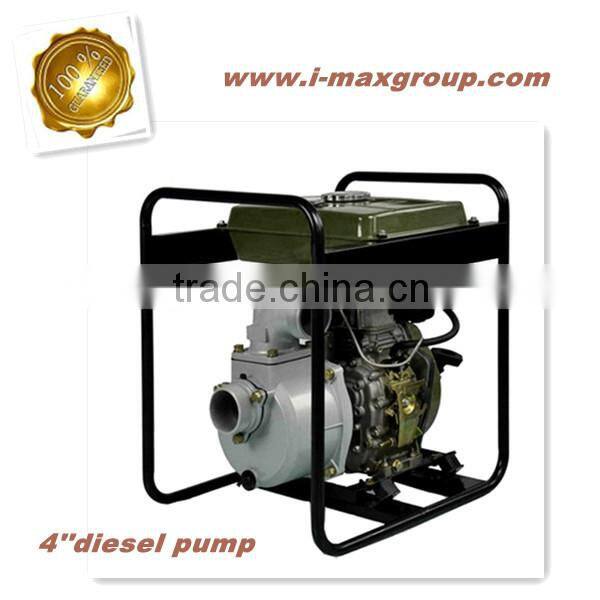

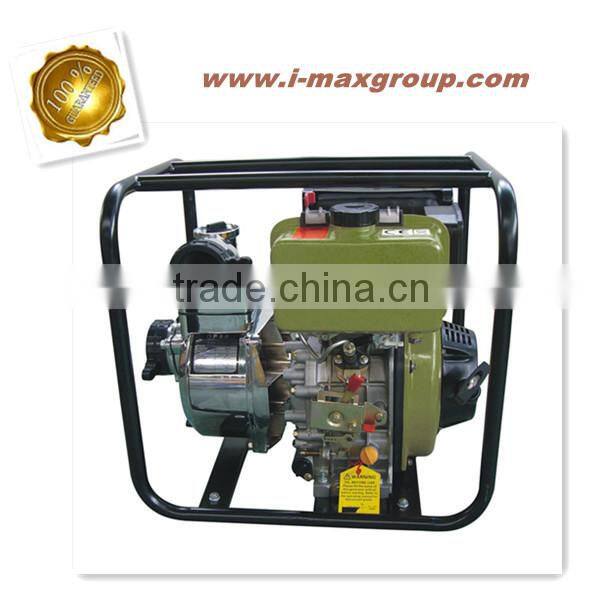

5hp Diesel Engine Water Pump Set

Name: 5hp Diesel Engine Water Pump Set
Brand: I-MAX
SKU: 118145991
Availability: InStock

5hp Diesel Engine Water Pump Set thumbnail-1

5hp Diesel Engine Water Pump Set photo-1

US$ 169 - 169 MOQ: 20 Sets

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

I-MAX

Model Number:

DP50 DP80 DP100

Contact Supplier Request Quote Chat Now

Fuzhou I-Max Enterprise Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name I-MAX

Model Number DP50 DP80 DP100

Theory Other, Diesel Engine Water Pump

Structure Piston Pump

Usage Water

Power Other, Engine

Standard or Nonstandard Standard

Fuel Diesel

Pressure High Pressure

Application Other, Irrigation

5hp diesel engine water pump set

Product Description

General Features:

* Excellent quality portable diesel water pump complete with carry frame, hose couplers, strainer & hose clips

* Powerful diesel engine

* Aluminium body with cast iron impeller

* 1 year warantee

* 18 days delivery time

5hp diesel engine water pump set
Specificaton

Model	DP50(E)	DP80(E)	DP100(E)
Inlet & Outlet Diameter	50mm(2'')	80mm(3'')	100mm(4'')
Max.Flow	36m³/hr	60m³/hr	96m³/hr
Max.Sunction	8m
Max.Head	26m	25m	31m
Engine Model	iM170FA	iM178FA	iM186FA
Engine Output	3.8HP	5.5HP	8HP
Starting	Manual/Key starting (optional)
Rotation speed	3600rpm
Displacement	211cc	296cc	406cc
Fuel Tank	3.5L / 12L (Optional)
Net Weight	38kgs	48kgs	67kgs
Dimension	470410480mm	560450530mm	650490595mm

5hp diesel engine water pump set
--More pumps for selection

Our Services

Diesel engine water pump Warrantee: 12 months. During the warranty period, our factory would be responsible for problems caused by quality of production or raw material, we will offer technical support or sending spare parts for replacement if need except the parts which required periodic maintenance, and the damageable problem by incorrect man-made operation will falls outside this clauses. After expiration, our company provides cost maintenance. Further terms could be negotiable!

If you are interested in the above products or would like to have more information, please visit our webiste or call us 0086-15860695366 (24 hrs online), we will get back to you as soon as possible!
