hd sdi/hdmi to digital rf modulator

          Encoding section

Firstly, it is to guarantee the sound picture quality of HD programs.

As we all know, to guarantee the picture quality of 1920x1080@50I/60I resolution HD program, the video bit-rate may exceed 10Mbps, even up to 15Mbps. However, the maximum possible bit-rate output for single DVB-T carrier is only around 30Mbps. 15Mbps x4channel =60Mbps > 30Mbps.

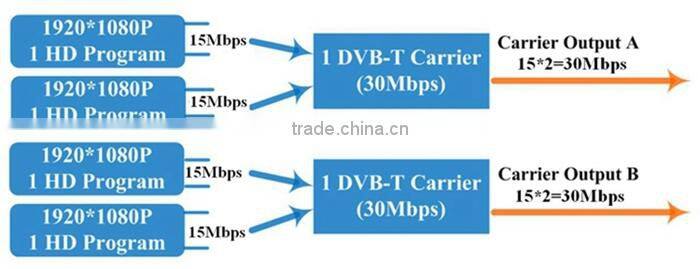

It means the single DVB-T carrier simply can't carry the 4 channels 1080i HD programs if the average bit-rate reaches 15Mbps.That's why we design 2*DVB-T carrier modulation board which double the maximum possible bit-rate bandwidth up to 60Mbps, which rightly makes it reliably carry 4 channels HD programs output simultaneously.Below brief chart will help to more clearly illustrate the working principle.

Secondly, it is cost-saving.

Its high integration allows users to transmit more programs with fewer devices. It undoubtedly saves the cost for you and me.

Trade Process

Payment Terms

1.MOQ:1pcs

2.Warranty:one year

3.Payment:T/T,Western Union,PayPal;

4.Package Informations:1 pcs per carton with foam, the volume of the carton is 440mm×410mm×44.5mm

1.We are a factory manufacturing digital front-end equipments,best production capability ,best quality control, best Service and competitve price.

2.Inspected by the Inspection Institution,100% QC inspection Before Shippment.

3.Terrific after-sales service: 24 hours around the clock & 12 months wannty life-long technical support for the product.

Chengdu Sighton Technology Co., LTD. is more than five years manufacturer, specialized in digital TV head-end system.The company is a high-tech enterprise which concentrates on the research, manufacturing, sale and service of DVB products. Sighton is building up both domestic and overseas markets while making a good contribution to the CATV industry.

 Sighton's products including: Encoder, Encoder modulator, QAM modulator, QPSK modulator, DVB-S2 modulator, DVB-T modulaotr, multiplexer and Satellite Receiver...For the system, we can offer the total solution of  DVB-C/T/T2/ from headend to user end with the way of cable, MMDS,especially concentrate on  IPTV.And our projects relate to different areas, such as city or village coverage, hotel, hospital, university, casino etc.
