Home > Electrical & Electronics > Telecommunication & Broadcasting > Radio & TV Broadcasting > 8*Tuner to IP Gateway for DVB Broadcasting;DVB-S2 to IP Receiver

8*Tuner to IP Gateway for DVB Broadcasting;DVB-S2 to IP Receiver

Name: 8*Tuner to IP Gateway for DVB Broadcasting;DVB-S2 to IP Receiver
Brand: Sighton
SKU: 118135247
Availability: InStock

8*Tuner to IP Gateway for DVB Broadcasting;DVB-S2 to IP Receiver thumbnail-1

8*Tuner to IP Gateway for DVB Broadcasting;DVB-S2 to IP Receiver photo-1

US$ 1 - 1,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

Sighton

Model Number:

STGI-7105

Contact Supplier Request Quote Chat Now

Chengdu Sighton Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu Shenzhen Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name Sighton

Model Number STGI-7105

8*Tuner to IP Gateway for DVB Broadcasting;DVB-S2 to IP Receiver

Weclome to contact Belle to fetch more quickly by Skype: fredasighton

Product Description

Outline

Tuner (ASI) to IP Gateway is a head-end interface conversion device which is used for DVB, ASI and Ethernet. It supports SPTSx32 output.

It is also integrated with demodulation and gateway function, which can demodulate the signal from 8 tuners (ASI) into TS. After multiplexing the TS, then packet the TS into IP package and output the IP package through different IP address and ports. It supports IP output (UDP protocol).

Except for 8 Tuner Input(DVB-S/DVB-S2 /DVB-T/DVB-C/ISDB-T/ASI optional) to IP Gateway model, there are HD/SD Encoder,IRD, Modulator etc.Pls contact us to fetch more.

What is the Features of our dvb-s2 to ip receiver?

Integrated with demodulation and gateway function
Support 8 channels tuner (ASI) input and SPTSx32 output.
Support MPEG-2 and MPEG-4 TS to IP one way conversion
1 GE output(support parallel 1 Gbps data output channel)
Support maximum 8 tuner to IP converting channel, the maximum output bit-rate is 800Mbps
Support IP output, UDP protocol, unicast and multicast
Support LCD display and keyboard
Support SNMP operation

What is the Specification of our dvb-s2 to ip receiver?

Input	8 tuner input(DVB-S/DVB-S2 /DVB-T/DVB-C/ISDB-T optional) DVB-C: 47 MHz~860 MHz, 16/32/64/128/256 QAM DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds DVB-S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds DVB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-T2: 44MHz ~999 MHz, 6/7/8 M bandwidth ISDB-T: 153 MHz ~862 MHz, 6/7/8M bandwidth
	8 ASI input
Output	1 GE output, UDP protocol, unicast and Multicast
Transmission Bit-rate		Maximum total bit-rate is 800Mbps
General	Dimension(WxLxH)	482mm×410mm×44mm
	Weight	3.6kg
	Temperature	0~45℃(working ),-20~80℃(storage)
	Power supply	100~240VAC,50/60Hz
	consumption	20W

What is the Applications of our dvb-s2 to ip receiver?

What is the System Applications of our dvb-s2 to ip receiver?

8 Tuner Input(DVB-S/DVB-S2 /DVB-T/DVB-C/ISDB-T/ASI optional) to IP Gateway is widely used for IPTV system.

Network Management System

Tuner (DVB-S S2) Setting

Select Programs

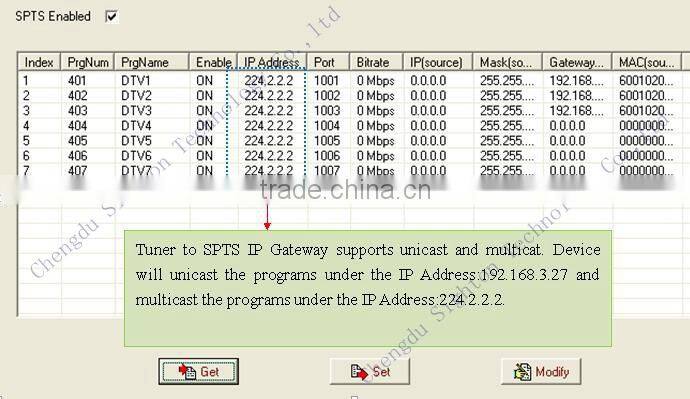

IP Output Address Setting

Packaging & Shipping

Trade,Packing & Shipping

Trade Process

Shipping 1.Door-to-Door; DHL/FedEx/UPS/TNT for samples, which one is convenient for you? 2.By Air or by Sea for batch goods;Airport/Port receiving; 3.Delivery Time: 5-7 days for samples; 5-25 days for batch goods.

Payment Terms

1.MOQ:1pcs

2.Warranty:one year

3.Payment:T/T,Western Union,PayPal;

4.Package Informations:1 pcs per carton with foam, the volume of the carton is 440mm×410mm×44.5mm

Our Services

Why Choose us?

1.We are a factory manufacturing digital front-end equipments,best production capability ,best quality control, best Service and competitve price.

2.Inspected by the Inspection Institution,100% QC inspection Before Shippment.

3.Terrific after-sales service: 24 hours around the clock & 12 months wannty life-long technical support for the product.

Welcome to connect with us as details below:

Belle

Chengdu Sighton Technology Co.,ltd
TEl:0086-028-87382204
FAX:0086-028-87382204
MOB:0086-18208127928
Skype:fredasighton

Company Information

Company View

Chengdu Sighton Technology Co., LTD. is more than five years manufacturer, specialized in digital TV head-end system.The company is a high-tech enterprise which concentrates on the research, manufacturing, sale and service of DVB products. Sighton is building up both domestic and overseas markets while making a good contribution to the CATV industry. Sighton's products including: Encoder, Encoder modulator, QAM modulator, QPSK modulator, DVB-S2 modulator, DVB-T modulaotr, multiplexer and Satellite Receiver...For the system, we can offer the total solution of DVB-C/T/T2/ from headend to user end with the way of cable, MMDS,especially concentrate on IPTV.And our projects relate to different areas, such as city or village coverage, hotel, hospital, university, casino etc.

Production Process

Our Certifications

FAQ

FAQ
Q1:Why buy the models from you?
A1:1)Highest quality and most reasonable price Strict product every step of the process and one month aging test Low repair rates, less than 0.2%. What’s amazing that the various styles models at reasonable price. 2)Delivery fast 5-7 days for samples; 5-25 days for batch goods 3)Best service Answering emails or solving questions timely. Update information on time Free repaired based on quality problem in 12 months as warranty.

Q2:Can it be shipped to my country? A2:We can ship items 98%countries in the world.

Q3:For the first time to import, how can I believe trust you ? A3We are Alibaba Trade Assurance gold supplier.If you pay us by Alibaba, Alibaba will keep your money safe, and make sure you receipt high quality goods.The function is the same as Paypal's.

Q4:What shall we do, if received damaged devices? A4:In order to avoid damage, each item is very well packed with foam and carton. If damaged, pls take the photo to us.
Q5: If we don,t know how to use the equipment, what you can help us? A5:We will send you the user manual before the devices arrived. You can operate the devices by control panel of the devices, follow the user manual. Even if you don,t know how to use panel, our technicians will teach you use Network Management System by Team-viewer.
Q6:As an agent, what you can do for us? A6:We can supply OEM, label for you. As our agent, we will give more discount based on your quantity to develop market. If you don,t know more technology, don,t worry about it, we can supply technical support before sale.
Q7:As end-users, what you can do for us? A7:Terrific after-sales service: 24 hours around the clock & 12 months warranty life-long technical support for the product.
