Specifications

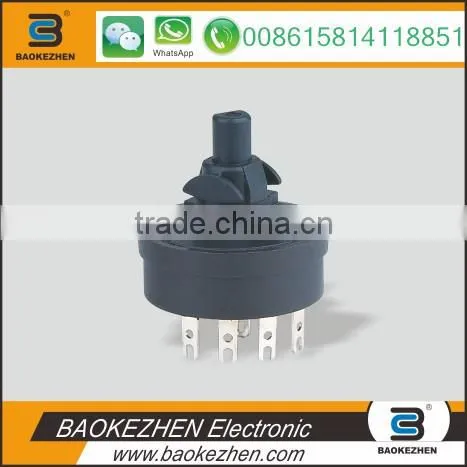

A10 Rotary switch, oven rotary switch, blender rotary switch, appliance rotary switch
Electrical Round Rotary Switches 2-10 position Function: two to eight with dip reset function ( UL,SEMKO ) ,T85 1E4,6(3)A,250Vac
Kitchen Appliance used Round Rotary Switch 2-10 way for Microwave oven,blender,stirrer,Juicer,braker,broiler,ect Specifications
P/N |
A10 rotary switch |
Current & Voltage |
6(4)A 250VAC T85 1E4 4A 125VAC 8A 250VAC |
Life |
1E4/5E4 |
Materials |
Housing-PA Terminals-copper Alloy, Contacts-Ag / AgcdO |
Contact gap |
more than 3mm |
Contact resistance |
20 mΩ or less than 20 mΩ
|
Insulation resistance |
more than 100 mΩ |
High voltage resistance |
750VAC |
Resistance to tracking |
PTI 175 |
Protection type |
IP20 |
Ambient temperature |
0℃,+85℃ |
Flammability |
UL94V-0 |
Heat and fire temperature |
850℃ |
Approvals |
UL & K EMA & SEMKO |
|
These switches are suitable for appliances of protection class II, such as oven, coffee machine, stirrer, kitchenware and so on. For more switches, pls refer to . | |
1)Contact Resistance ≤20mΩ
2)Insulation Resistance ≥100MΩ ,at 500 VDC
3)Dielectric Strength 1000VAC/ 1minute
4)Electrical Life ≥10000 times (SEMKO)
≥6000 times (UL)
5)Electrical Current 13A 125Vac ; 6.5A 250Vac;T125;
6)Temperature Range 0~125oC
The rotary dip switches are widely used in household electrical equipments and office facility , the multimedia products and the electromotional instruments field etc.
Rotary switches widely applications:
blender rotary switch
juicer rotary switch
stirrer rotary switch
Microwave oven rotary switch
toaster rotary switch
automobile braker rotary switch
broiler rotary switch
other more range rotary switch
