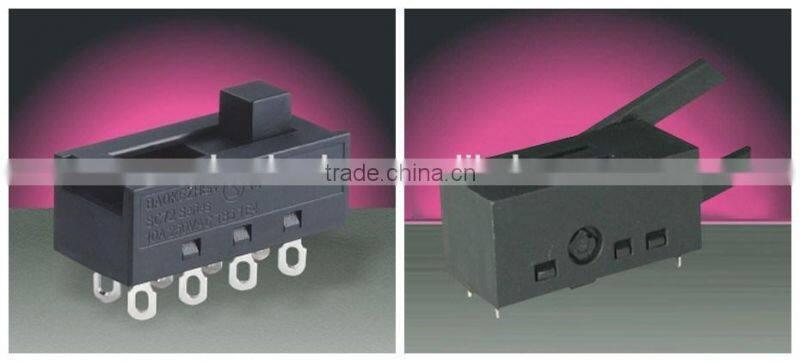

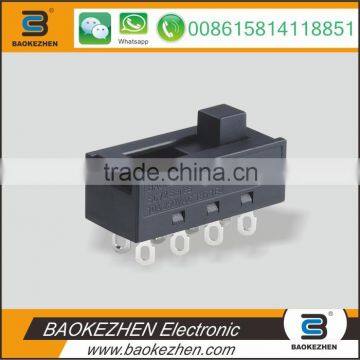

SC72 Slide switch for home appliances, electric slide switch, waterproof slide switch
P/N |
SC72 slide switch, electric slide switch, waterproof slide switch |
Current & Voltage |
10A 250VAC T85 1E4 13A 125VAC 6.5A 250VAC |
Life |
1E4 / 5E4 |
Materials |
Housing and handspike-PA Terminals-copper Alloy, Contacts-Ag / AgcdO |
Contact gap |
more than 3mm |
Contact resistance |
20 mΩ or less than 20 mΩ |
Insulation resistance |
more than 100 mΩ |
High voltage resistance |
1500VAC |
Resistance to tracking |
PTI 175 |
Protection type |
IP20 |
Ambient temperature |
0℃,+85℃ |
Flammability |
UL94V-0 |
Heat and fire temperature |
850℃ |
|
Temperature rise at the terminals (according to electrical life endurance) |
Max 30℃ ( UL1054) Max 55℃ ( EN61058-1) |
Approvals |
UL & SEMKO |
|
These switches are suitable for appliances of protection class II, such as oven, coffee maker, stirrer, hair drier, power strip and so on. For more switches, pls refer to . | |
BAOKEZHEN was established and started to produce switches since 1987, with 18 years manufacturing experience, we have successfully extended our switch series, such as micro switch series, single pole rocker switch series, double pole rocker switch series, push button switch series, rotarry switch series, slide switch / toggle switch series, keyboard switch / piano switch series, and so on... Meanwhile, we also extended some new industries range, such as solenoid pumps, solenoid valve, PCB controller for appliances care. So far BAOKEZHEN yearly products capacity has been up to 100million pcs.
