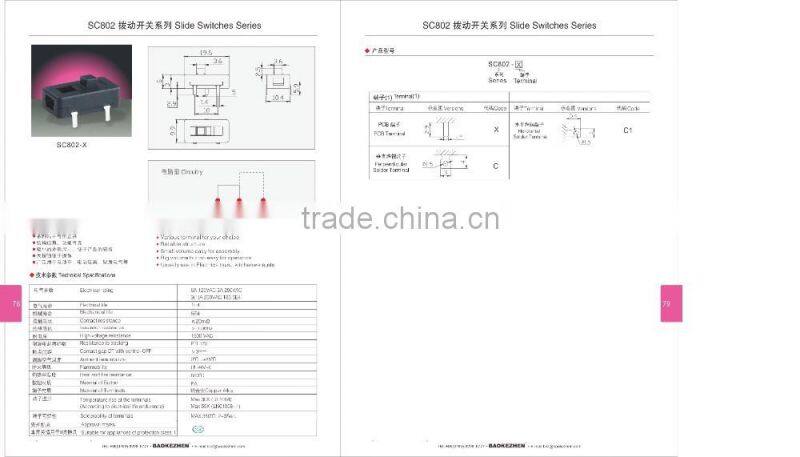

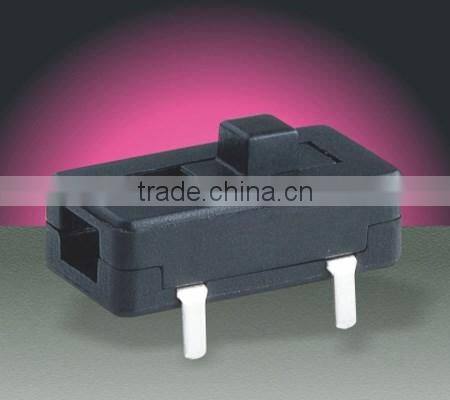

SC802 Slide switch for home appliances, electric slide switch, waterproof slide switch
P/N |
SC802-X slide switch |
Current & Voltage |
3(1)A 250VAC T85 5E4 6A 125VAC 3A 250VAC |
Life |
1E4 / 5E4 |
Materials |
Button-PA Terminals-copper Alloy, Contacts-Ag / AgcdO |
Contact gap |
more than 3mm |
Contact resistance |
20 mΩ or less than 20 mΩ
|
Insulation resistance |
more than 100 mΩ |
High voltage resistance |
1500VAC |
Resistance to tracking |
PTI 175 |
Protection type |
IP20 |
Ambient temperature |
0℃,+85℃ |
Flammability |
UL94V-0 |
Heat and fire temperature |
850℃ |
|
Temperature rise at the terminals (according to electrical life endurance) |
Max 30K ( UL1054) Max 55K ( EN61058-1) |
Approvals |
CCC |
|
These switches are suitable for appliances of protection class II, such as electrics toys, kitchenware and so on. For more switches, pls refer to . | |
BAOKEZHEN was established and started to produce switches since 1987, with 18 years manufacturing experience, we have successfully extended our switch series, such as micro switch series, single pole rocker switch series, double pole rocker switch series, push button switch series, rotarry switch series, slide switch / toggle switch series, keyboard switch / piano switch series, and so on... Meanwhile, we also extended some new industries range, such as solenoid pumps, solenoid valve, PCB controller for appliances care. So far BAOKEZHEN yearly products capacity has been up to 100million pcs.
